Component Parts Location

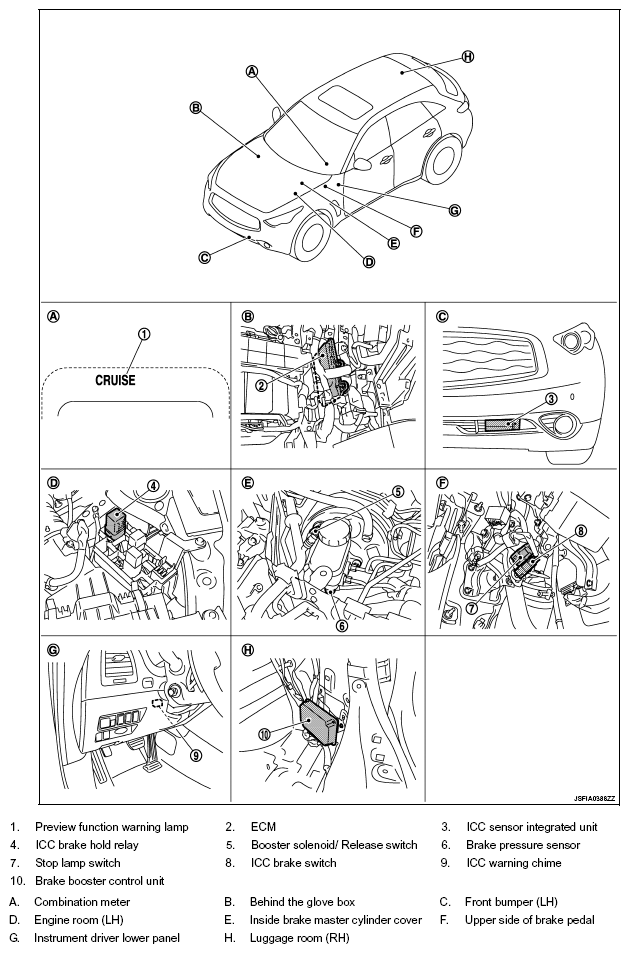

Fig 1: Identifying Preview Component Parts Location
G05984411Courtesy of NISSAN MOTOR CO., U.S.A.
NOTE: The preview function warning lamp shares the ICC system warning lamp.
