2WD : Exploded View

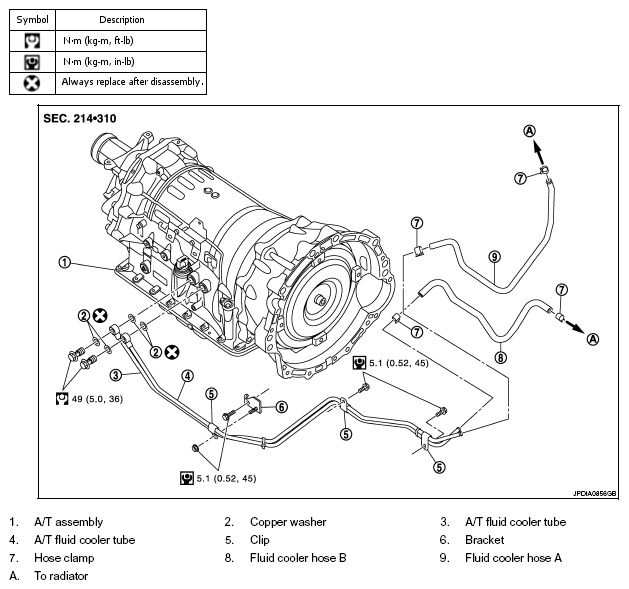

Fig 1: View Of 2WD Fluid Cooler System With Torque Specifications
G05980375Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols in the figure.
