Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|

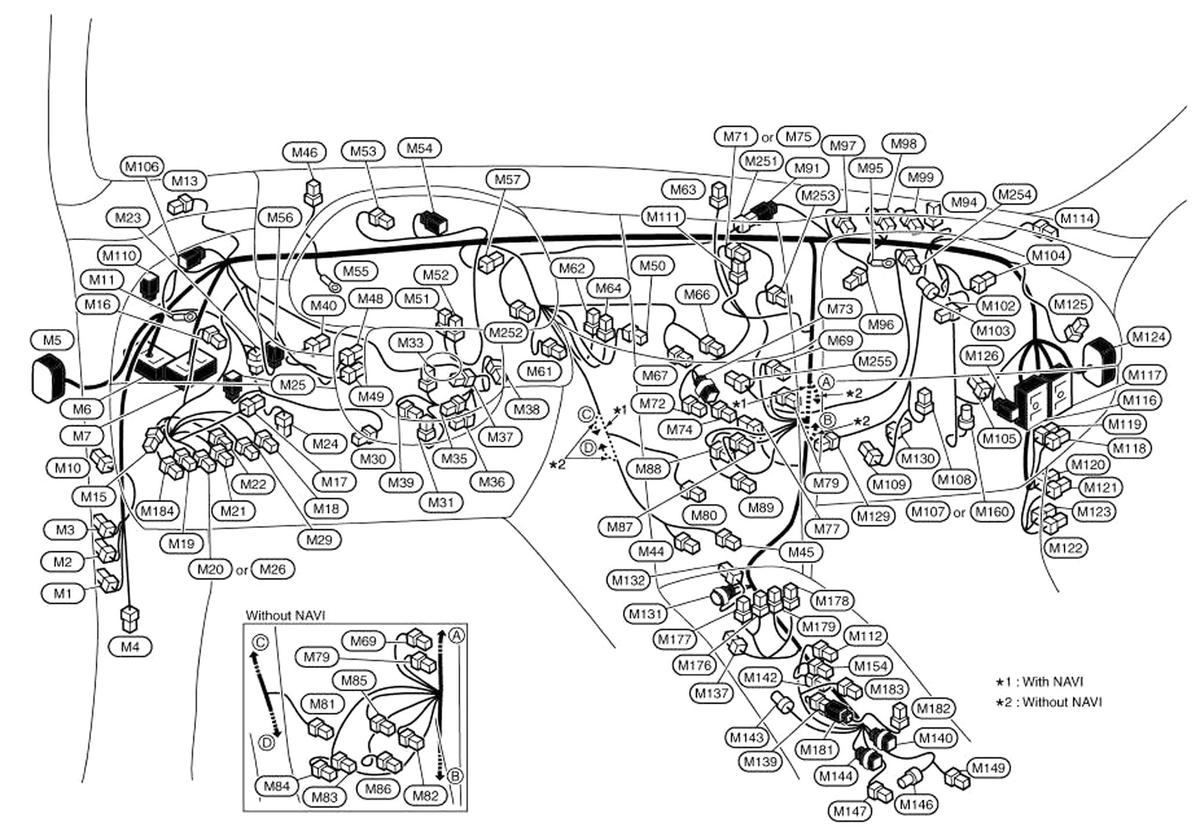

| Circuit Breaker (M62) | Center of dash. See Figure. |
| Fuse Block (J/B) (M1) | Left kick panel. See Figure. |

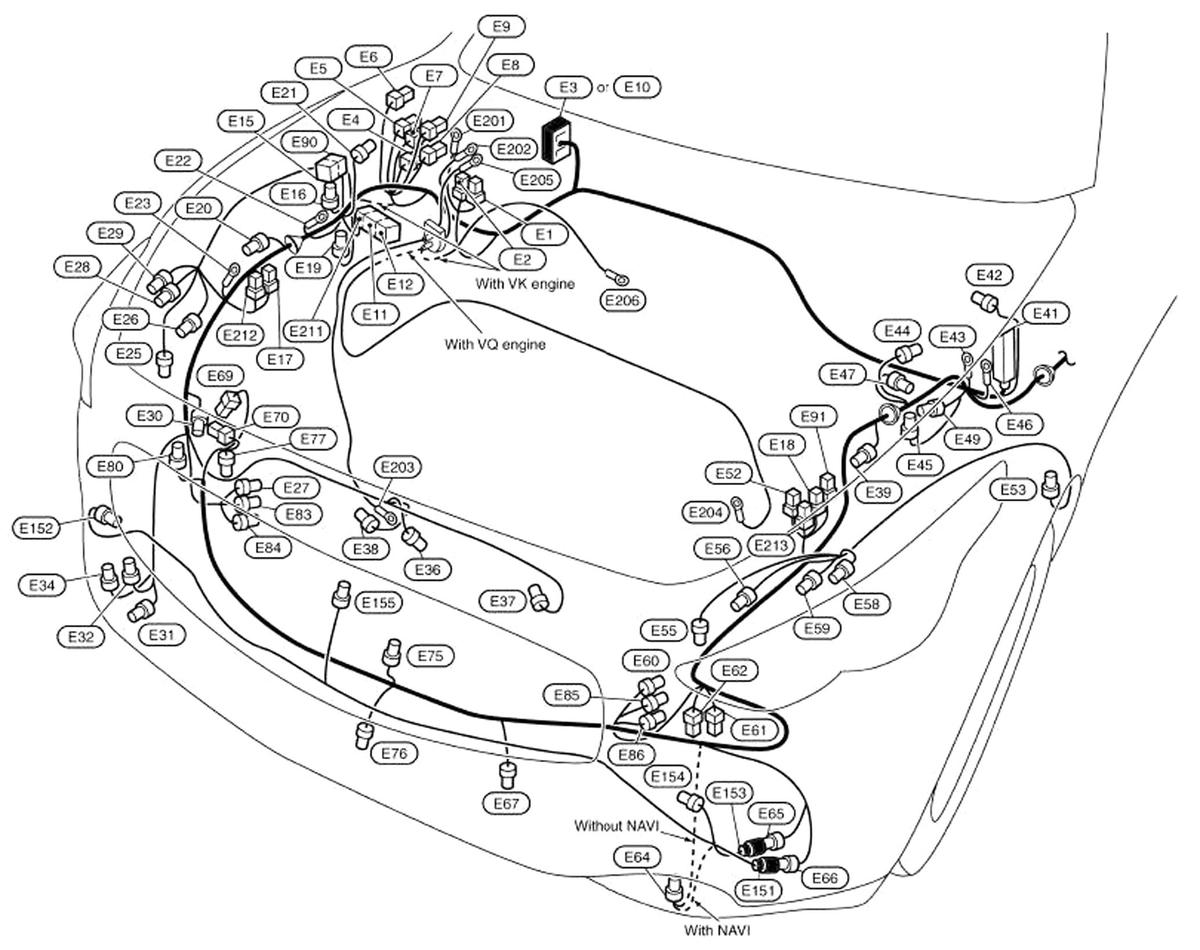

| Fuse & Fusible Link Block (E12) | Right rear of engine compartment. See Figure. |
| Fusible Link Holder (E1) | Right rear of engine compartment. See Figure. |
| IPDM E/R (Intelligent Power Distribution Module Engine Room) (E4) | Right rear of engine compartment. See Figure. |
