Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

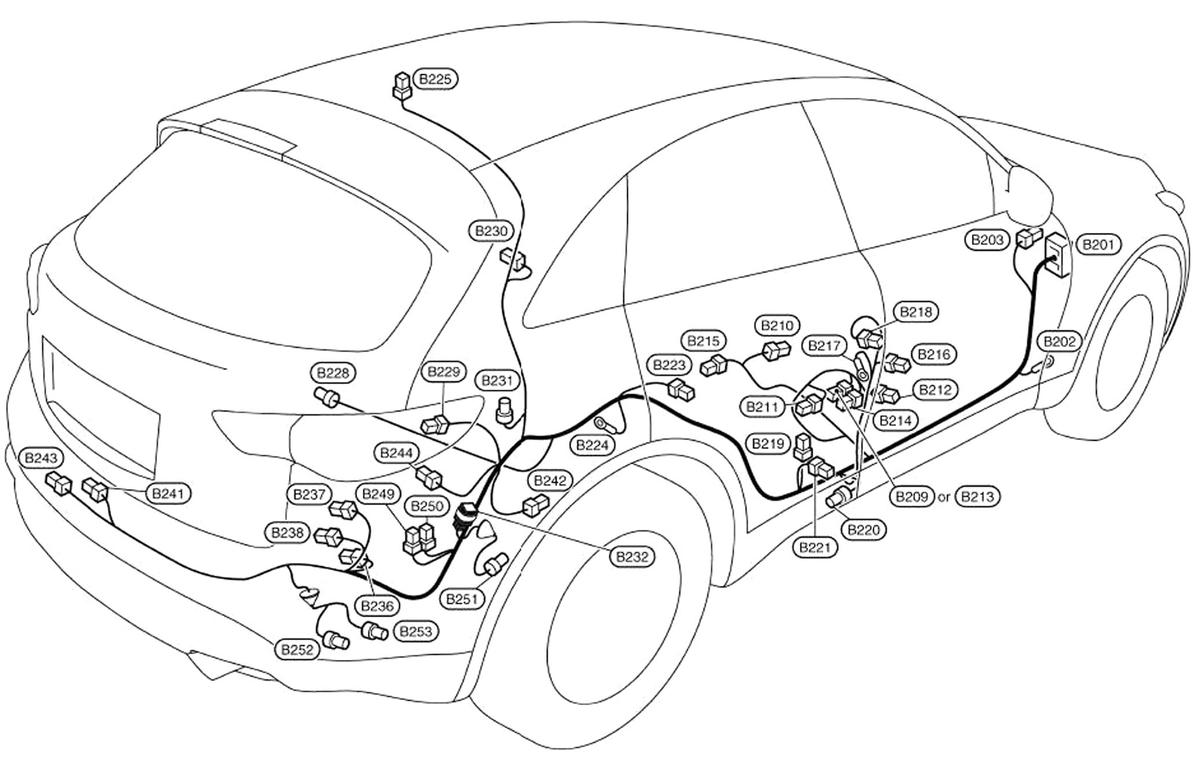

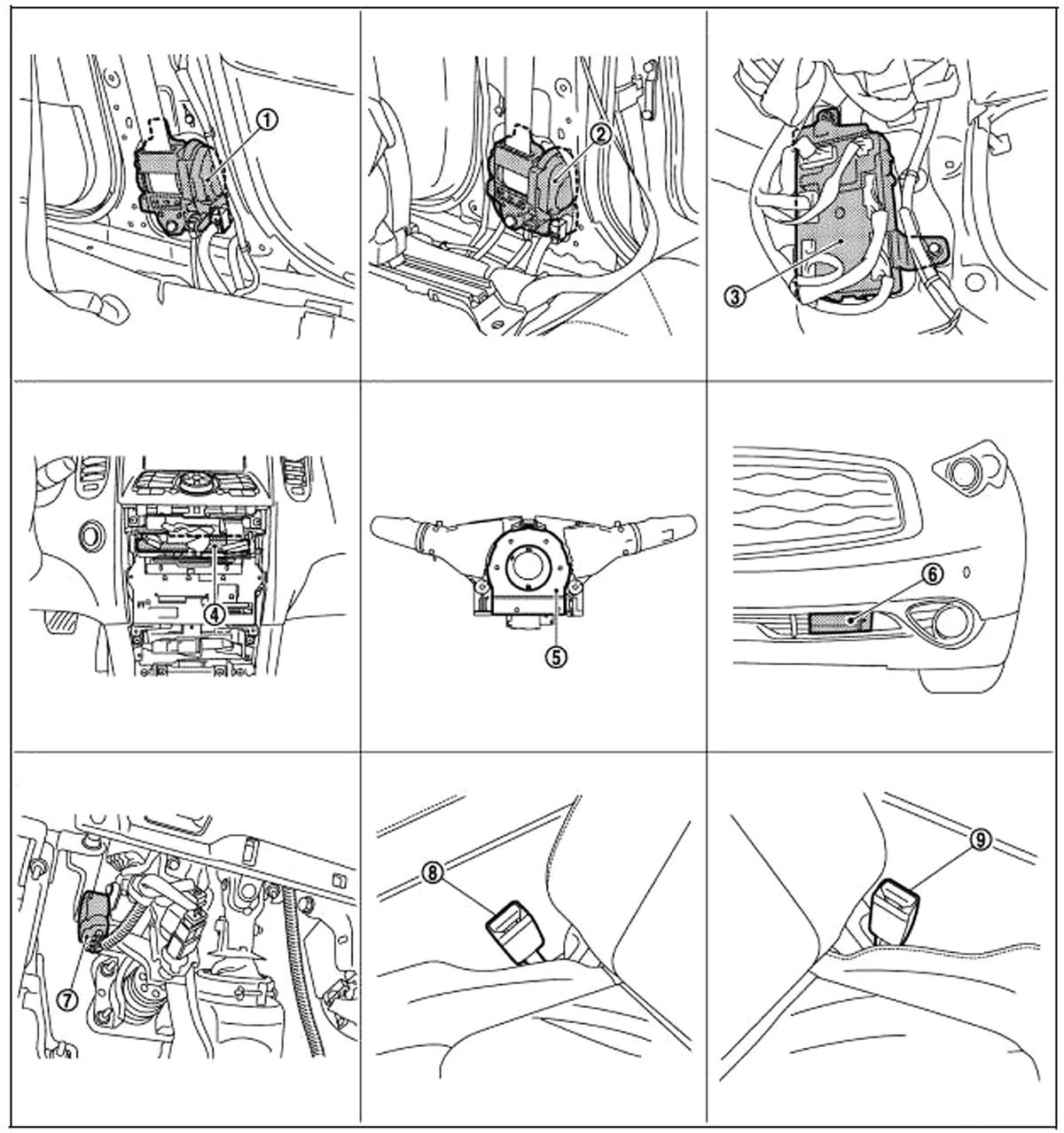

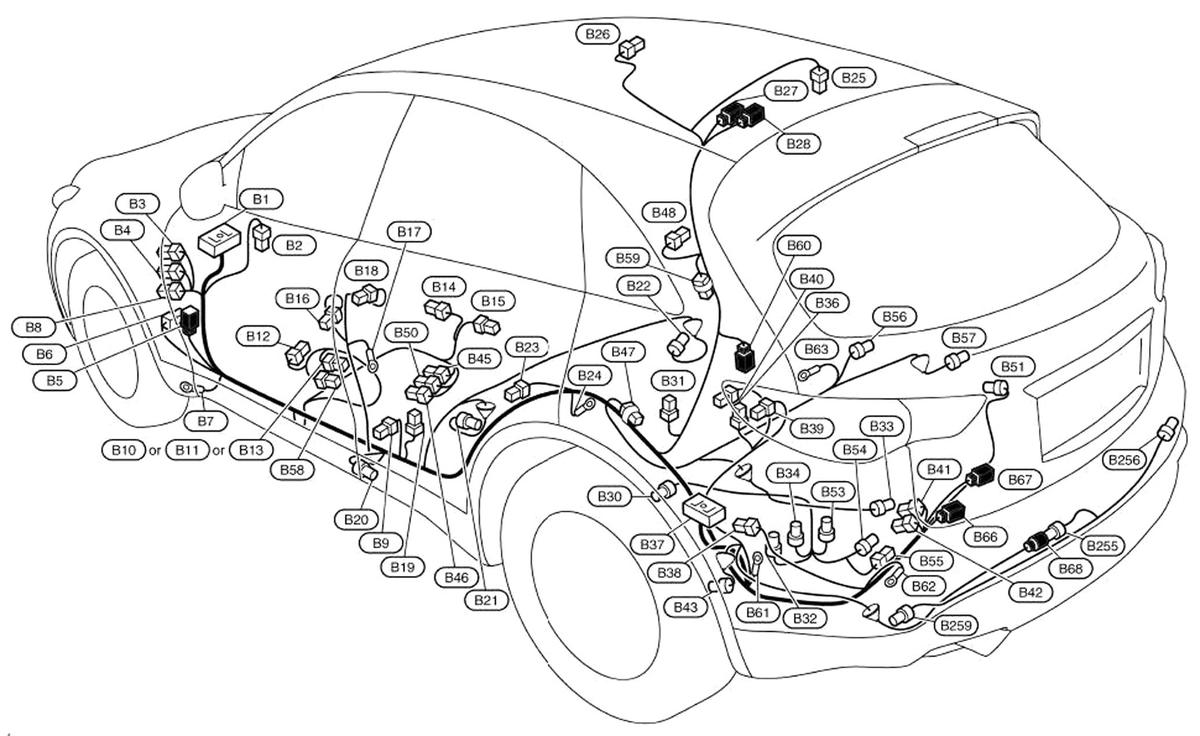

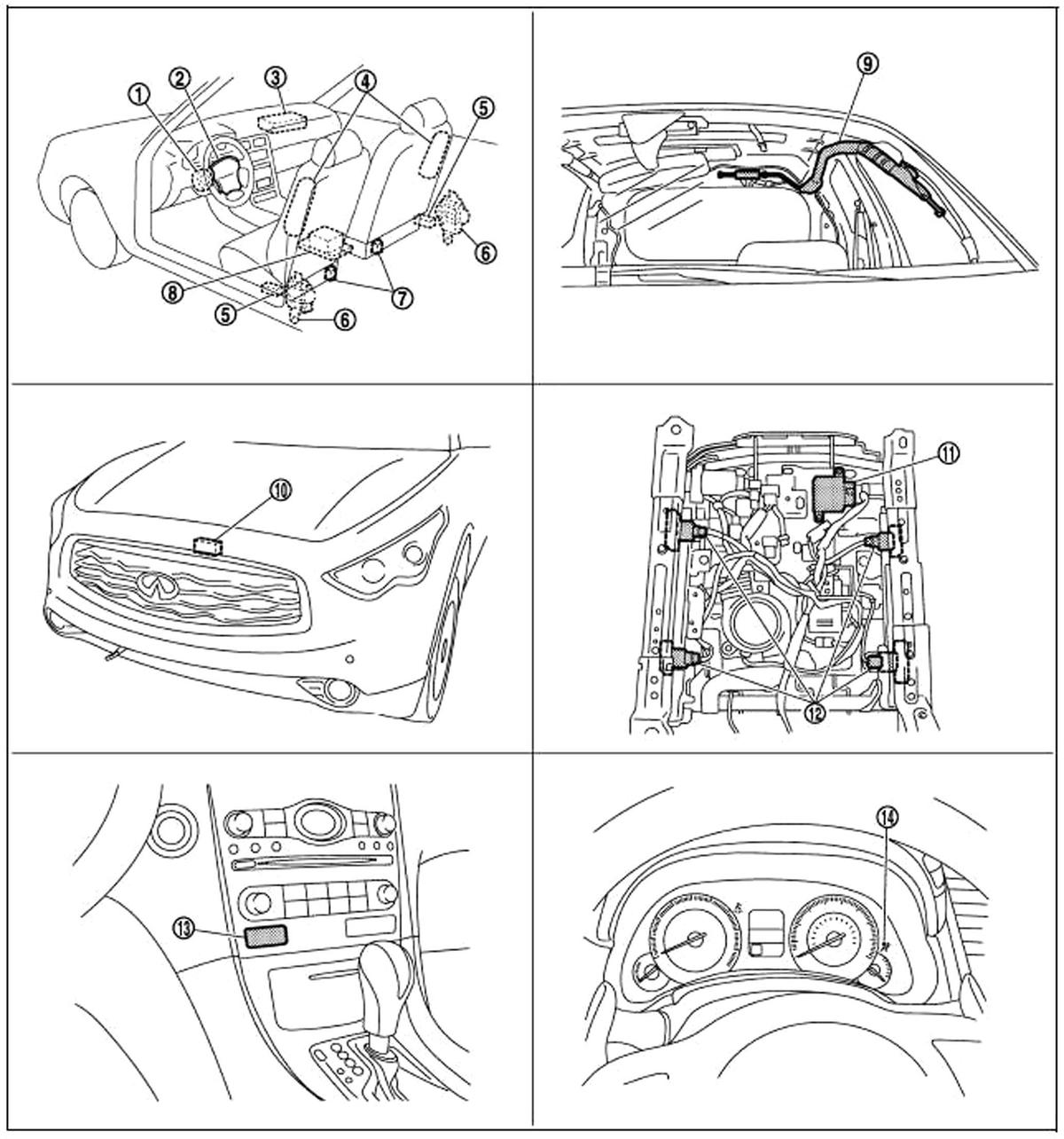

| ABS Actuator & Electric Unit (Control Unit) (E41) | Left rear of engine compartment. See Figure. |
| AFS Control Unit (M16) | Left end of dash. See Figure. |
| Around View Monitor Control Unit (B46) | Under driver's seat. See Figure. |
| Automatic Drive Positioner Control Unit (M52) | Left center of dash. See Figure. |
| AWD Control Unit (M105) | Right end of dash. See Figure. |

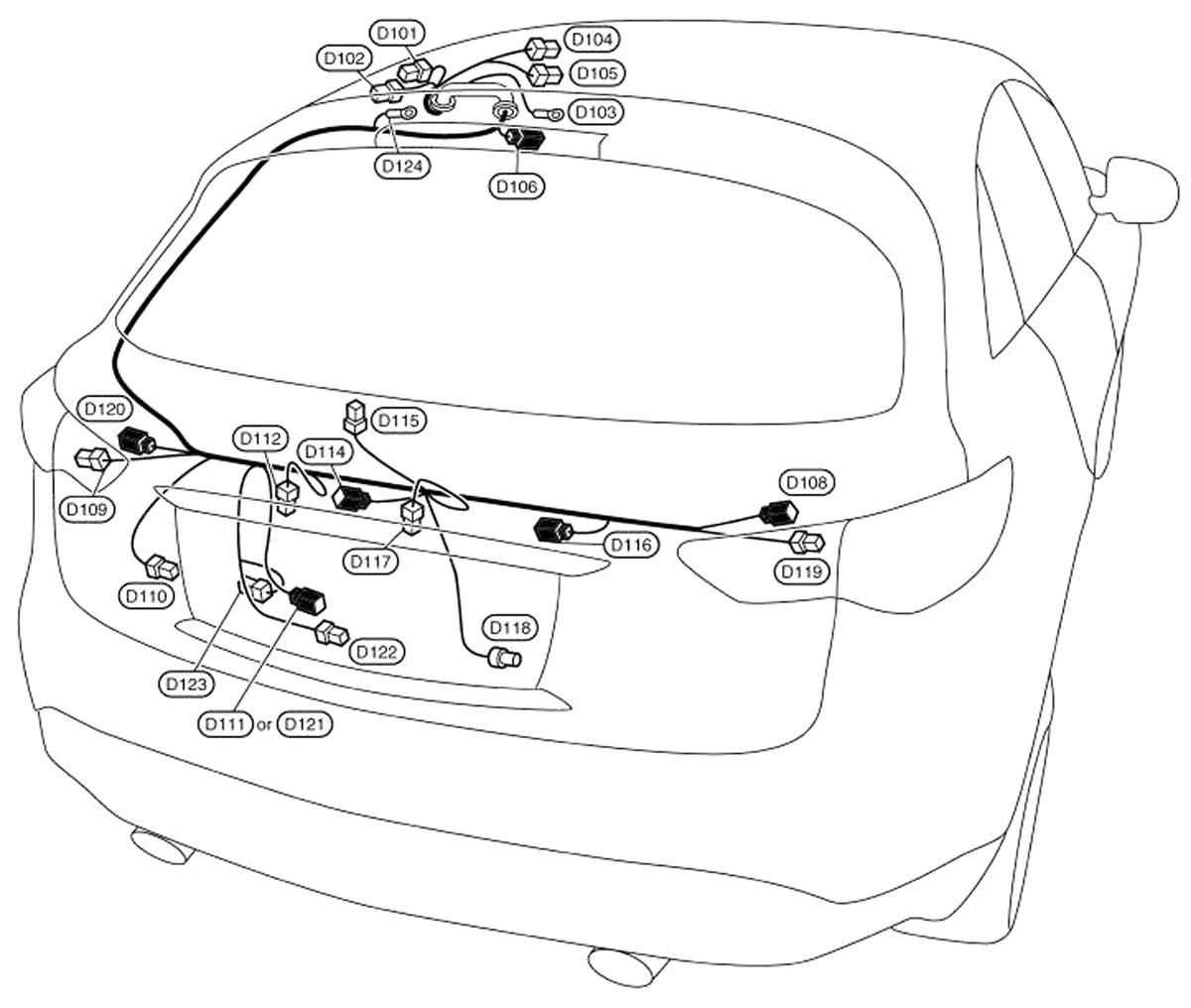

| Back Door Control Unit (D123) | Lower left side of back door. See Figure. |
| BCM (Body Control Module) (3) | Right end of dash. See Figure. |
| Brake Booster Control Unit (B251) | Right side of luggage compartment. See Figure. |
| Camera Control Unit (B50) | Under driver's seat. See Figure. |
| CAN Gateway (M125) | Right end of dash. See Figure. |
| ECM (Engine Control Module) (F101) | Right end of dash. See Figure. |
| E-Suspension Control Unit (B38) | Left side of luggage compartment. See Figure. |
| Fuel Pump Control Module (B31) | Left "C" pillar. See Figure. |
| Low Tire Pressure Warning Control Unit (M96) | Right side of dash. See Figure. |
| Occupant Detection System Control Unit (11) | Under front passenger's seat. See Figure. |
| Power Steering Control Unit (M108) | Right side of dash. See Figure. |
| Pre-Crash Seat Belt Control Unit (Driver Side) (1) | Base of left "B" pillar. See Figure. |
| Pre-Crash Seat Belt Control Unit (Passenger Side) (2) | Base of right "B" pillar. See Figure. |
| Remote Keyless Entry Receiver (M104) | Right end of dash. See Figure. |
| Side Support Unit (Driver/Passenger) | In respective front seat back. |
| TCM (Transmission Control Module) | On automatic transmission. |
| Total Illumination Control Unit (M129) | Right side of dash. See Figure. |
