WITH NAVIGATION

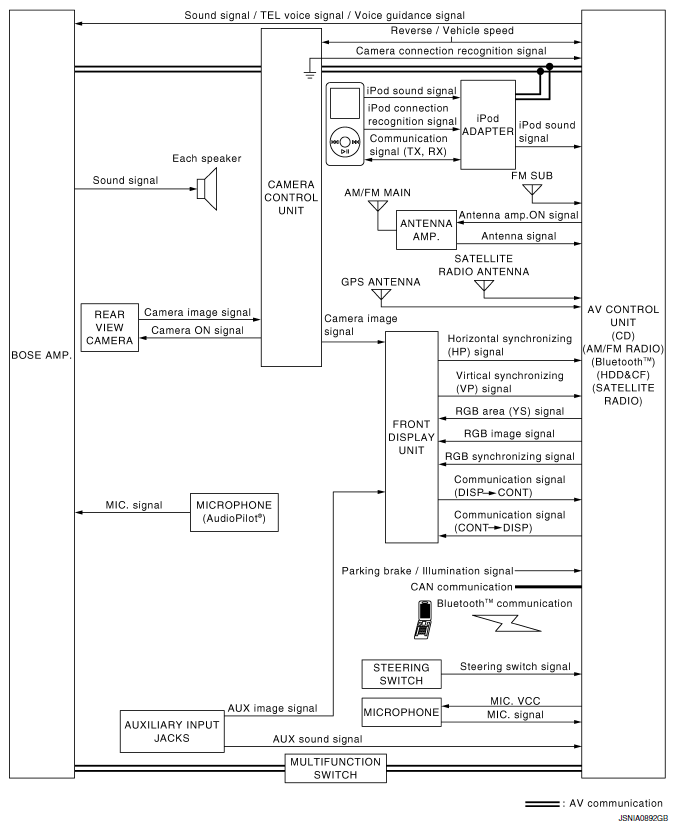

Fig 1: Multi AV System - System Diagram (With Navigation)

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: The name MULTIFUNCTION SWITCH indicates the integration of PRESET SWITCH and MULTIFUNCTION SWITCH virtually.

WITH NAVIGATION AND DVD PLAYER

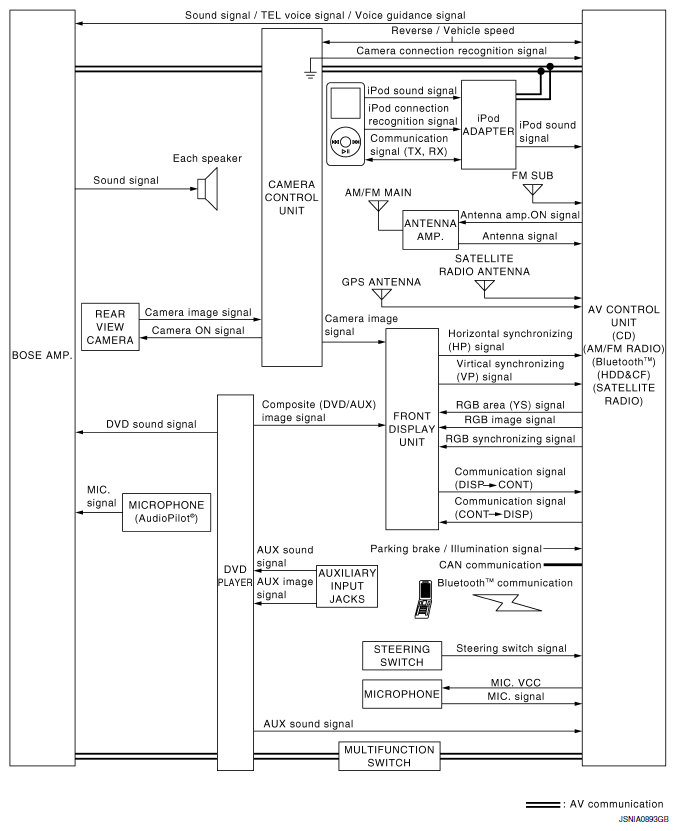

Fig 2: Multi AV System - System Diagram (With Navigation And DVD Player)

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: The name MULTIFUNCTION SWITCH indicates the integration of PRESET SWITCH and MULTIFUNCTION SWITCH virtually.

WITH NAVIGATION : System Diagram
