Voice Recognition System
Each operation of multi AV system can be performed by inputting sound to microphone.
Start of sound recognition system can be performed by steering switch.

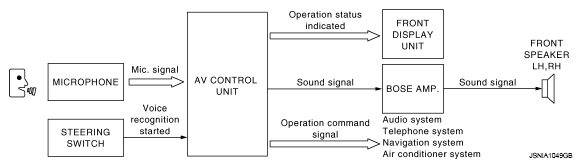

Fig 1: Voice Recognition System Communication Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
