WITHOUT NAVIGATION : System Diagram

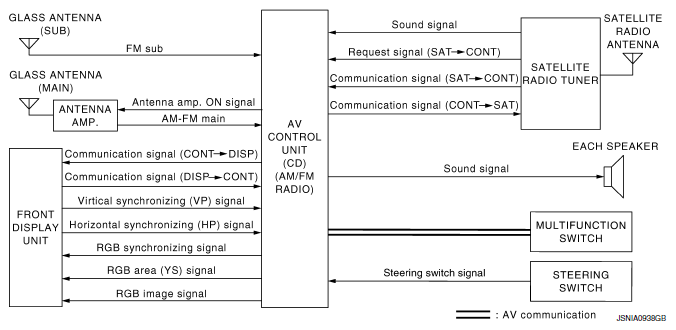

Fig 1: Audio System - System Diagram (Without Navigation)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
