Exploded View

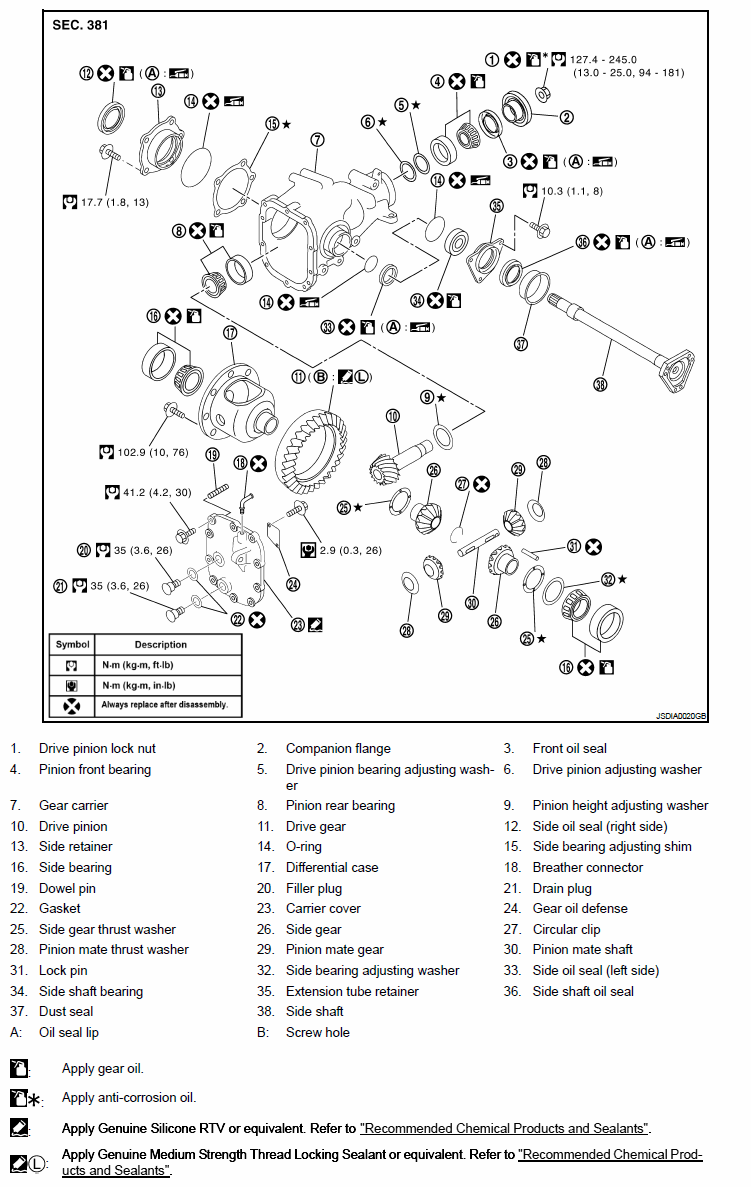

Fig 1: Exploded View Of Differential Assembly With Torque Specifications
G06301801Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols not described above.
