Exploded View

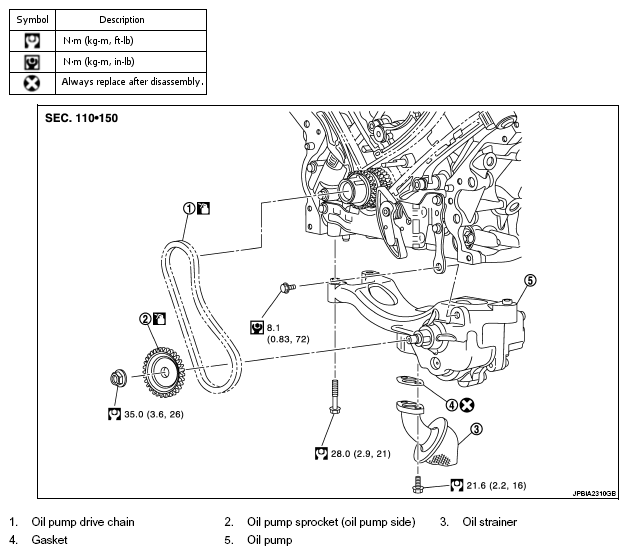

Fig 1: Exploded View Of Oil Pump With Torque Specifications
G05983693Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to COMPONENTS for symbols in the graphic.
