COOLING FAN CONTROL : System Diagram

WARNING: This page is about a different car, the 2011 Nissan Juke. However, it is still accessible from the selected car via links, so may be relevant.

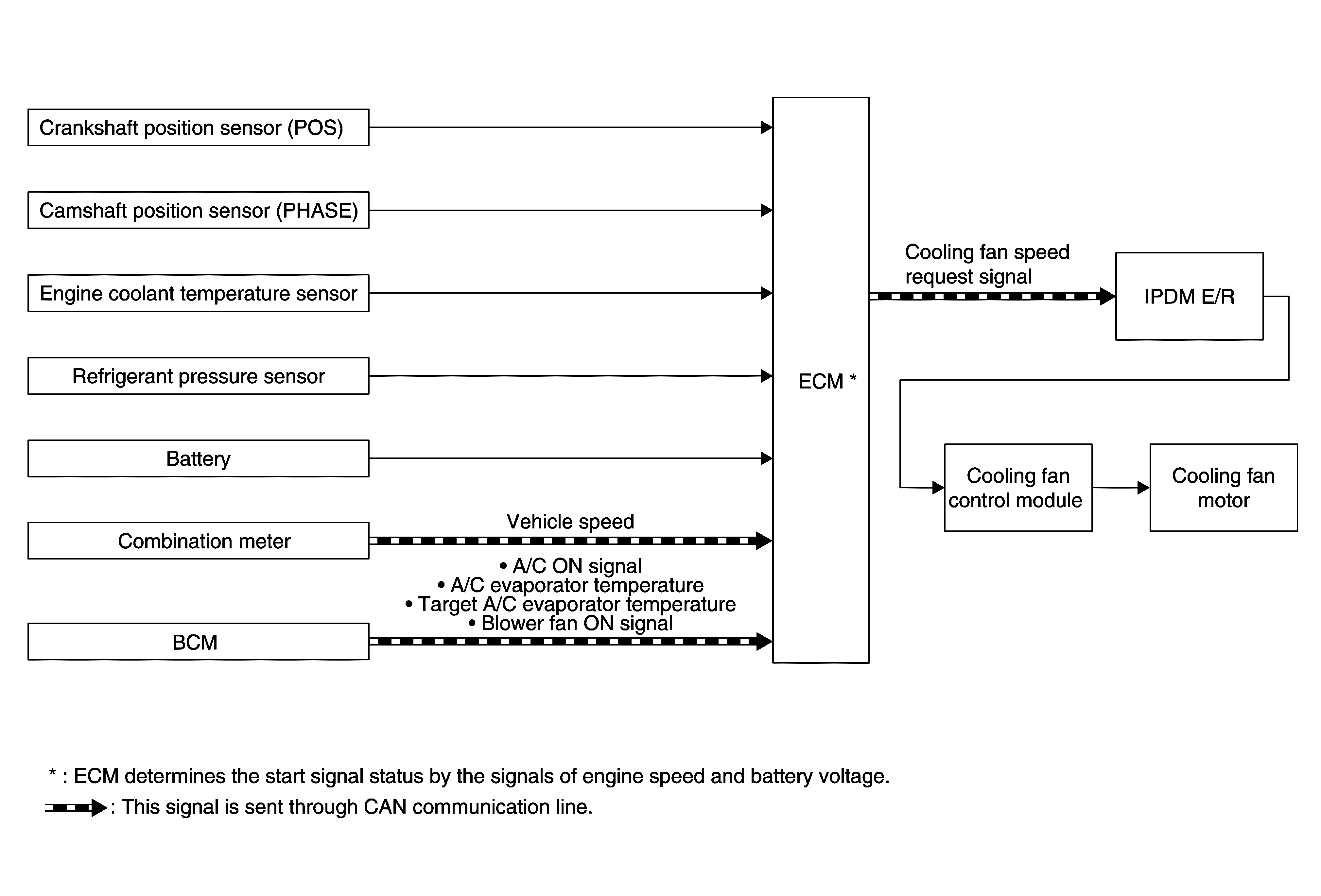

Fig 1: Cooling Fan Control System Diagram
G06932923Courtesy of NISSAN MOTOR CO., U.S.A.
