Ignition Signal: Wiring Diagram
NOTE:
For PG-Power, go to
POWER SUPPLY, GROUND & CIRCUIT ELEMENTS
.

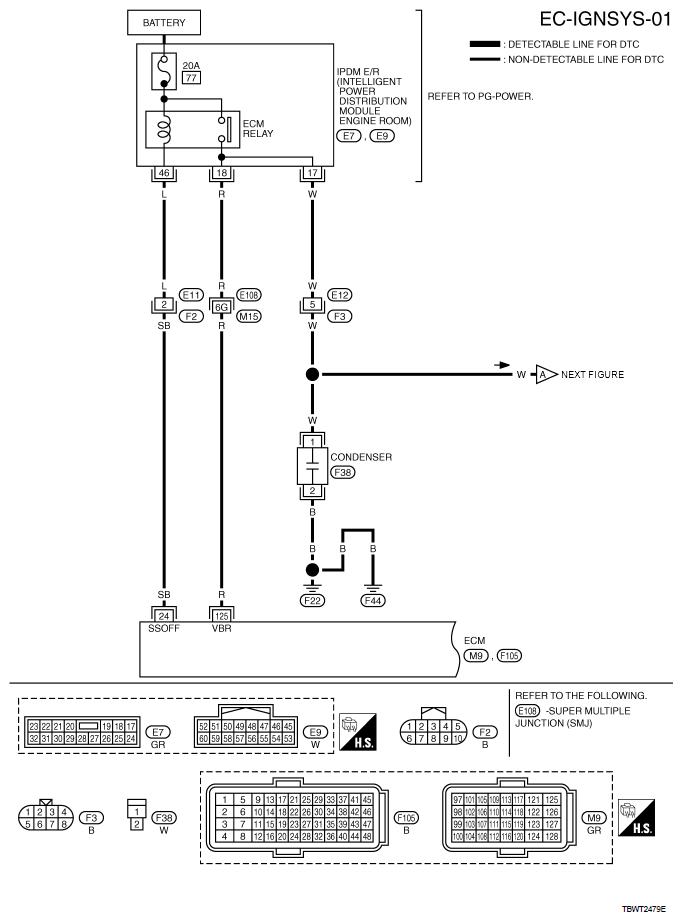

Fig 1: EC-IGNSYS-01 - Wiring Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.

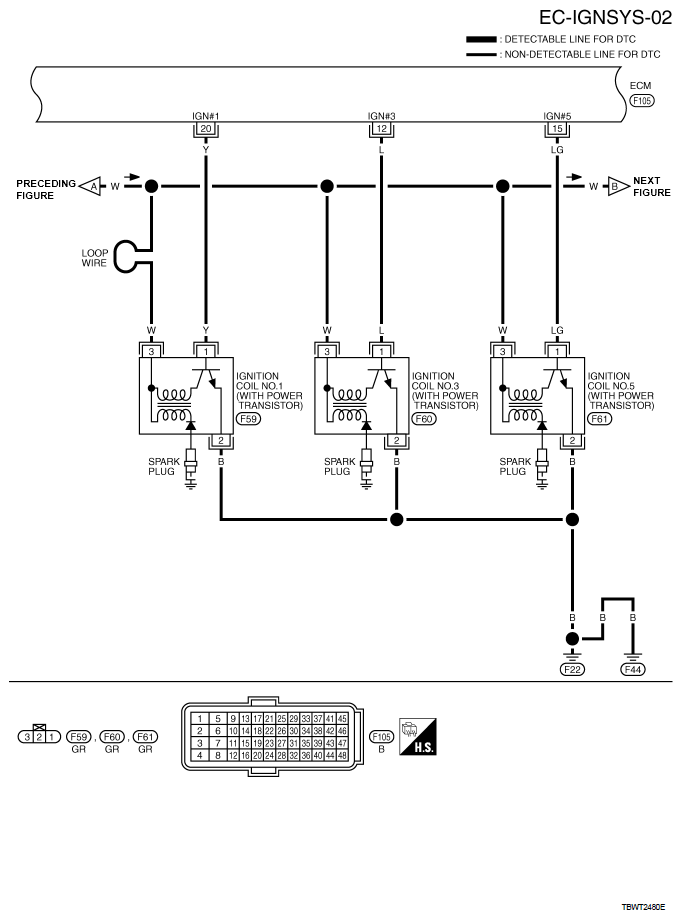

Fig 2: EC-IGNSYS-02 - Wiring Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.

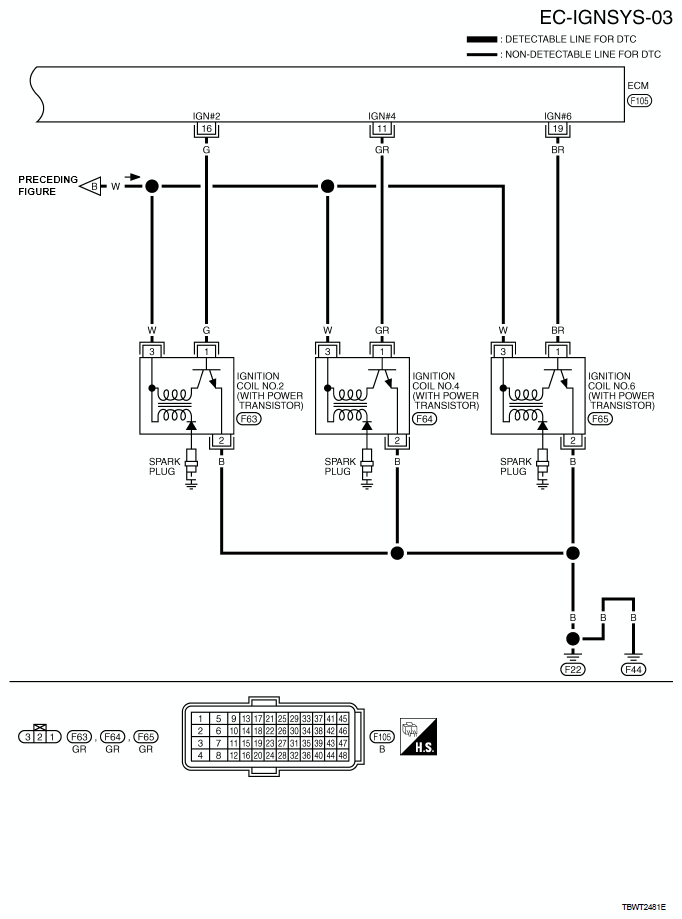

Fig 3: EC-IGNSYS-03 - Wiring Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
