Control Device Components (AWD Models)

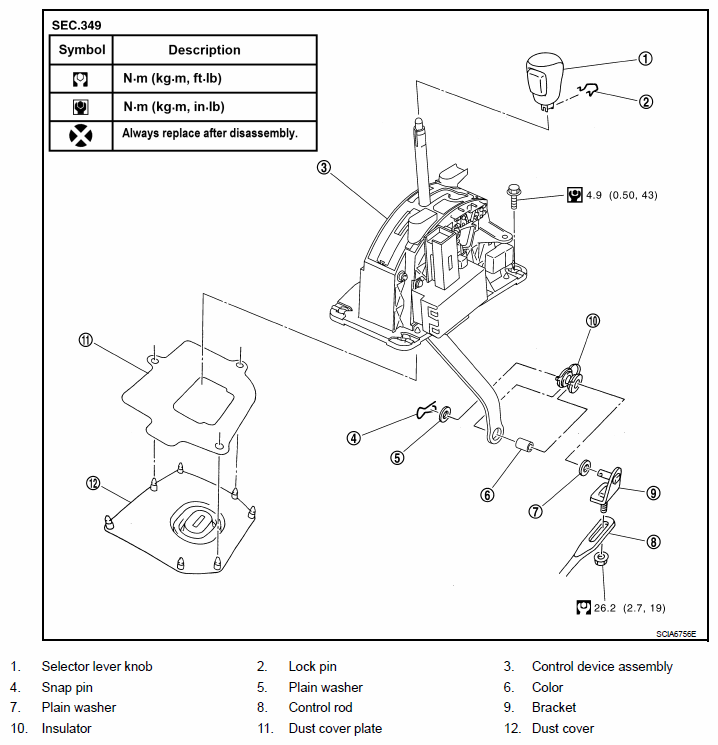

Fig 1: Shift Control Device Replacement Components (AWD Models) With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to General Information to make sure icons (symbol marks) shown above. Refer to COMPONENT .
