Control Rod Components (2WD Models)

Refer to the graphic below for control rod removal and installation procedure.

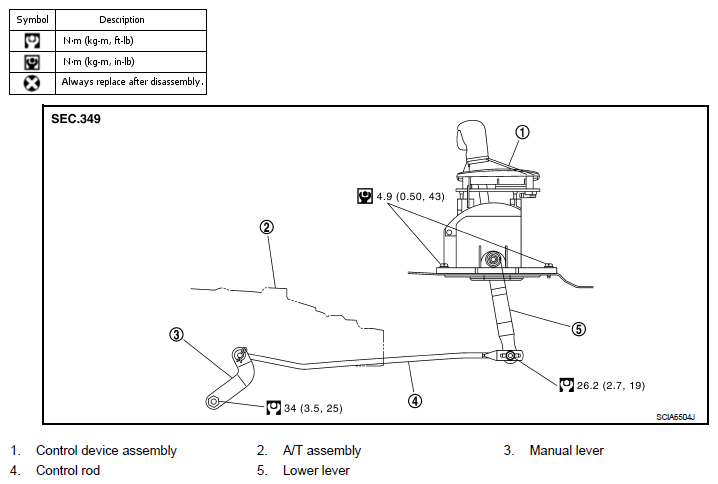

Fig 1: Shift Control Rod Replacement Components With Torque Specifications (2WD Models)

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to General Information to make sure icons (symbol marks) shown below. Refer to COMPONENT .
