AWD : Exploded View: Removal

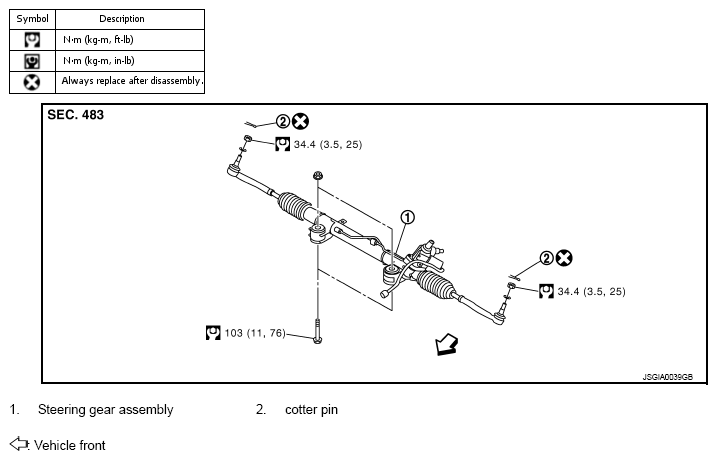

Fig 1: Steering Gear And Linkage Replacement Components With Torque Specifications (AWD)
G07165857Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols in the figure.
