Oil Channel

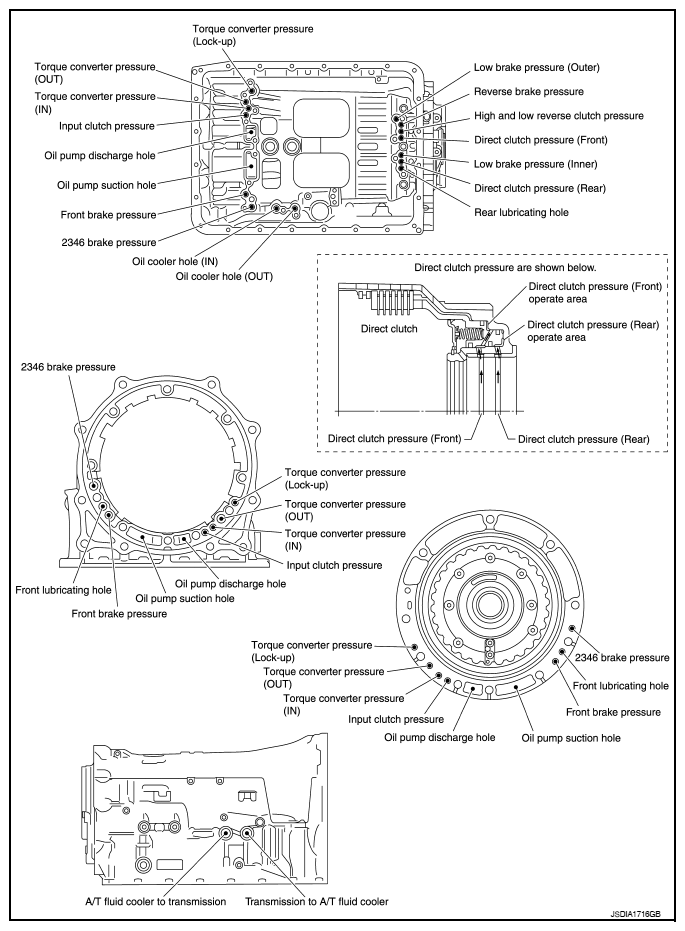

Fig 1: Identifying Transmission Assembly Oil Channel

G07165398

Courtesy of NISSAN MOTOR CO., U.S.A.
