MULTI AV SYSTEM : System Diagram

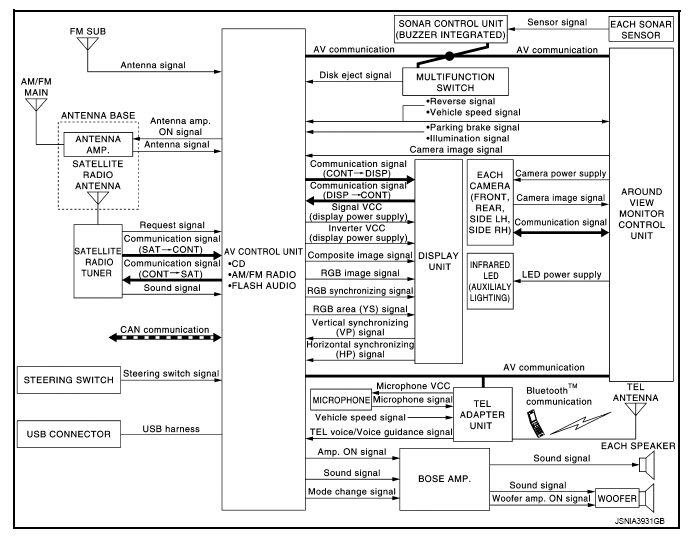

Fig 1: Multi AV System Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE:

The name MULTIFUNCTION SWITCH indicates the integration of PRESET SWITCH and MULTIFUNCTION SWITCH virtually.
An antenna base integrated with radio antenna and satellite radio antenna is adopted.

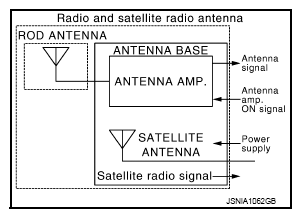

Fig 2: Radio And Satellite Radio Antenna Signal Communication Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
