Engine Control System - Introduction - G25 Sedan
>>
VQ25HR
>>
System Description
>>
Engine Control System
>>
System Diagram
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
System Diagram

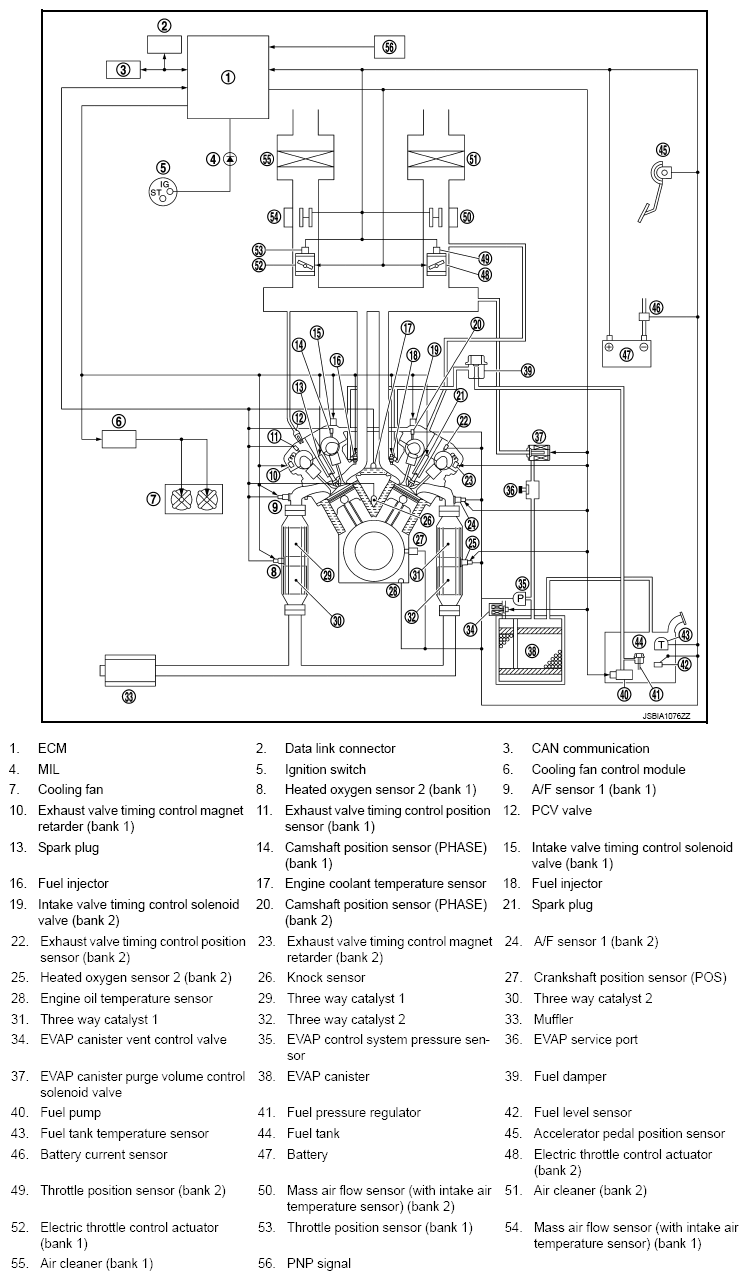

Fig 1: Engine Control System Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
