Component Parts Location

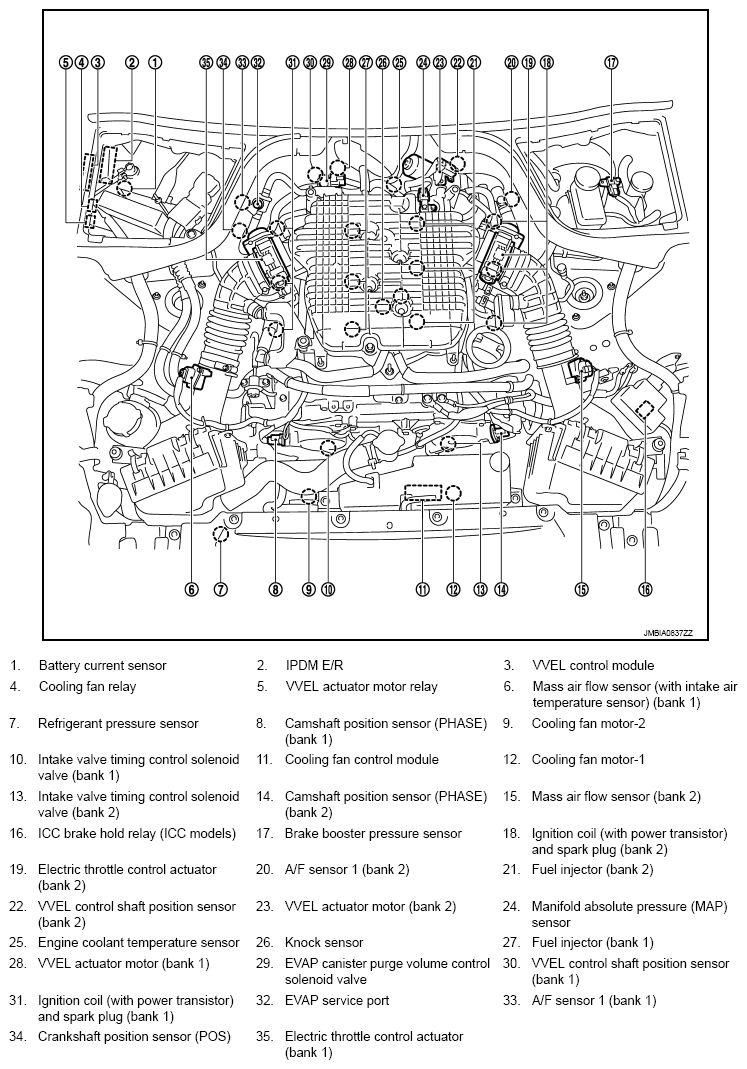

Fig 1: Identifying Engine Control System Component Parts Location (1 Of 21)

G07159455

Courtesy of NISSAN MOTOR CO., U.S.A.

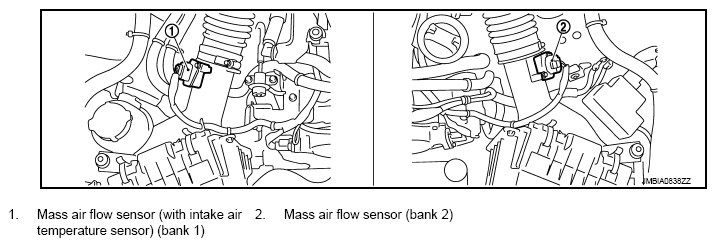

Fig 2: Identifying Engine Control System Component Parts Location (2 Of 21)

G07159456

Courtesy of NISSAN MOTOR CO., U.S.A.

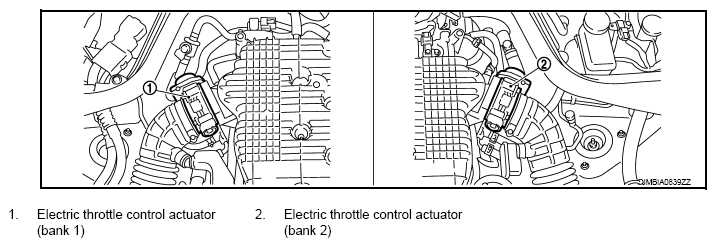

Fig 3: Identifying Engine Control System Component Parts Location (3 Of 21)

G07159457

Courtesy of NISSAN MOTOR CO., U.S.A.

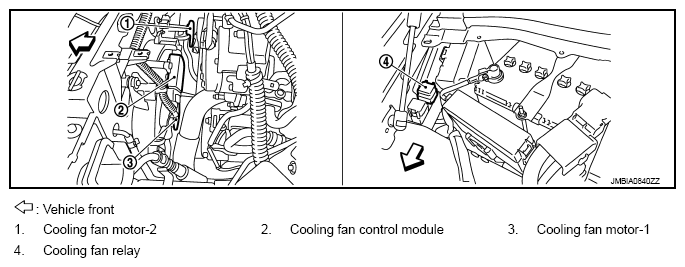

Fig 4: Identifying Engine Control System Component Parts Location (4 Of 21)

G07159458

Courtesy of NISSAN MOTOR CO., U.S.A.

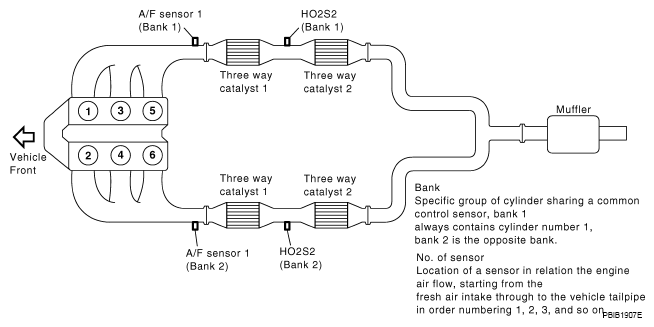

Fig 5: Identifying Engine Control System Component Parts Location (5 Of 21)

G07159459

Courtesy of NISSAN MOTOR CO., U.S.A.

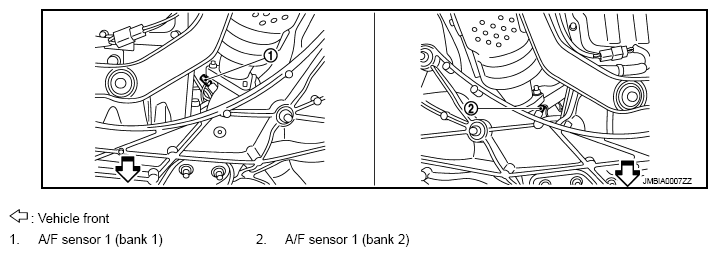

Fig 6: Identifying Engine Control System Component Parts Location (6 Of 21)

G07159460

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 7: Identifying Engine Control System Component Parts Location (7 Of 21)

G07159461

Courtesy of NISSAN MOTOR CO., U.S.A.

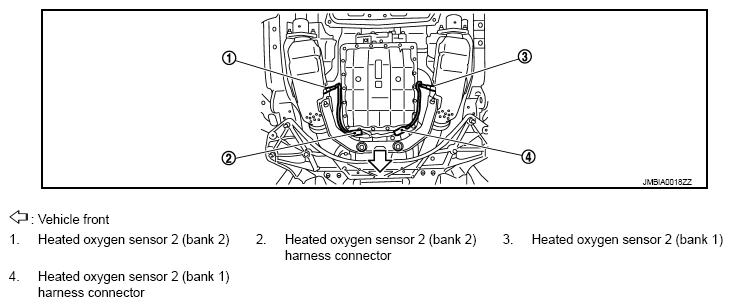

Fig 8: Identifying Engine Control System Component Parts Location (8 Of 21)

G07159462

Courtesy of NISSAN MOTOR CO., U.S.A.

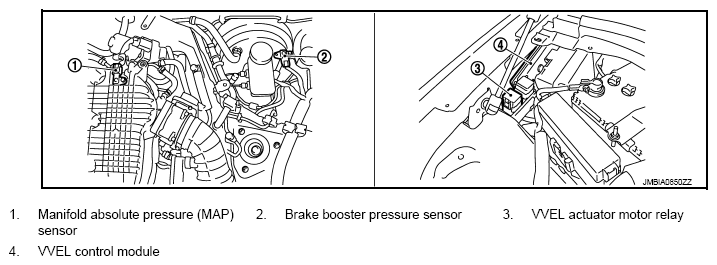

Fig 9: Identifying Engine Control System Component Parts Location (9 Of 21)

G07159463

Courtesy of NISSAN MOTOR CO., U.S.A.

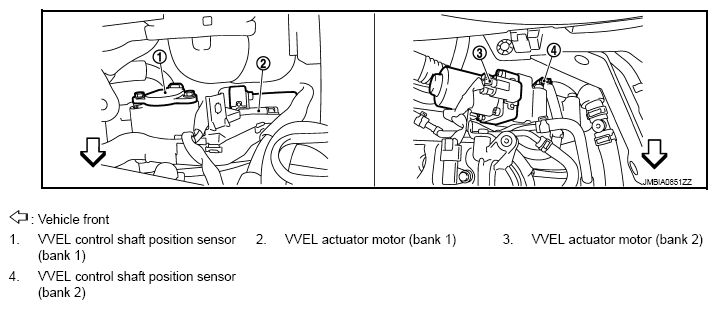

Fig 10: Identifying Engine Control System Component Parts Location (10 Of 21)

G07159464

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 11: Identifying Engine Control System Component Parts Location (11 Of 21)

G07159465

Courtesy of NISSAN MOTOR CO., U.S.A.

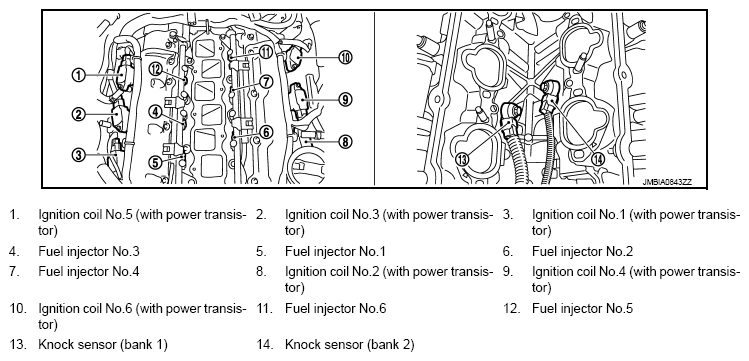

Fig 12: Identifying Engine Control System Component Parts Location (12 Of 21)

G07159466

Courtesy of NISSAN MOTOR CO., U.S.A.

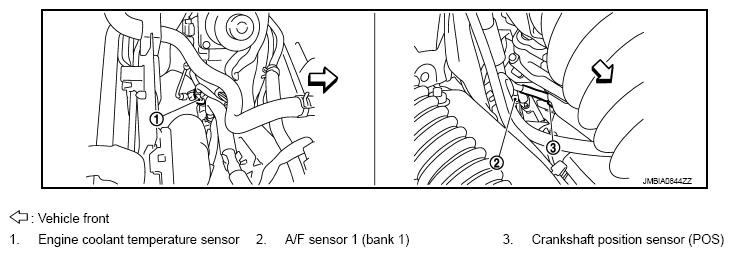

Fig 13: Identifying Engine Control System Component Parts Location (13 Of 21)

G07159467

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 14: Identifying Engine Control System Component Parts Location (14 Of 21)

G07159468

Courtesy of NISSAN MOTOR CO., U.S.A.

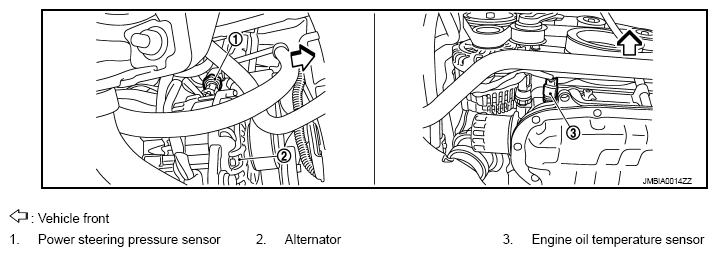

Fig 15: Identifying Engine Control System Component Parts Location (15 Of 21)

G07159469

Courtesy of NISSAN MOTOR CO., U.S.A.

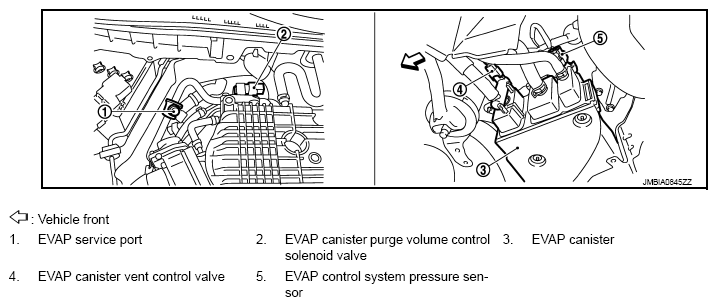

Fig 16: Identifying Engine Control System Component Parts Location (16 Of 21)

G07159470

Courtesy of NISSAN MOTOR CO., U.S.A.

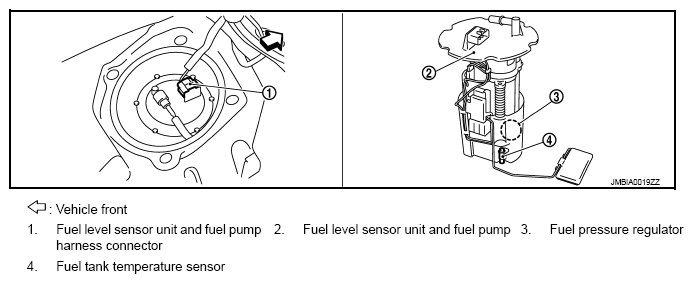

Fig 17: Identifying Engine Control System Component Parts Location (17 Of 21)

G07159471

Courtesy of NISSAN MOTOR CO., U.S.A.

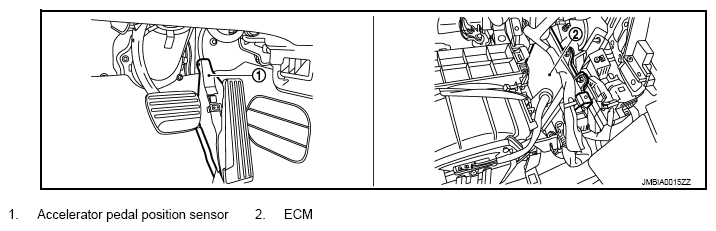

Fig 18: Identifying Engine Control System Component Parts Location (18 Of 21)

G07159472

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 19: Identifying Engine Control System Component Parts Location (19 Of 21)

G07159473

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 20: Identifying Engine Control System Component Parts Location (20 Of 21)

G07159474

Courtesy of NISSAN MOTOR CO., U.S.A.

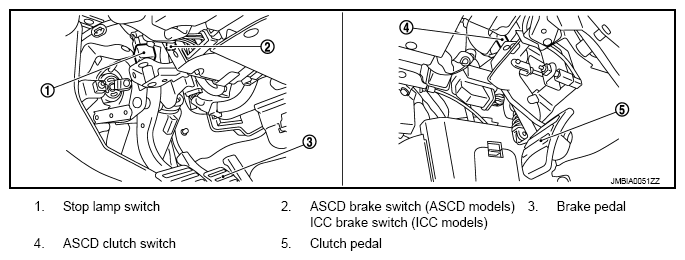

Fig 21: Identifying Engine Control System Component Parts Location (21 Of 21)

G07159475

Courtesy of NISSAN MOTOR CO., U.S.A.
