PPMU, MIDDLE TUBE ASSEMBLY, PPMU PIPE : Exploded View

WARNING: This page is about a different car, the 2012 Infiniti QX56 and 2011 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

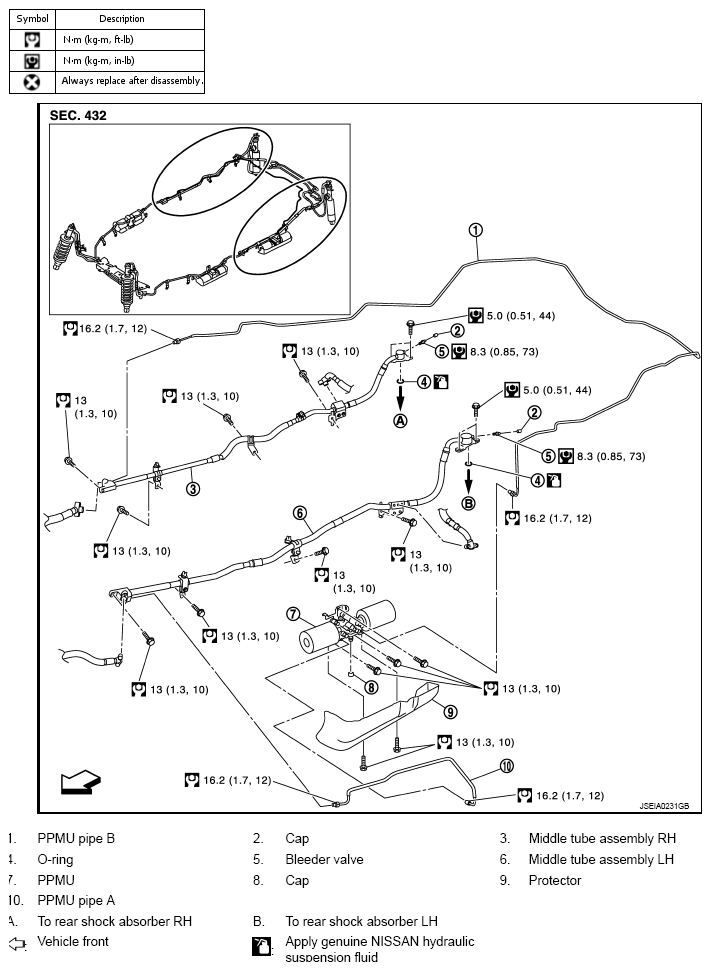

Fig 1: Exploded View Of PPMU, Middle Tube Assembly & PPMU Pipe With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols not described on the above.
