Driver Assistance Systems: Wiring Diagram

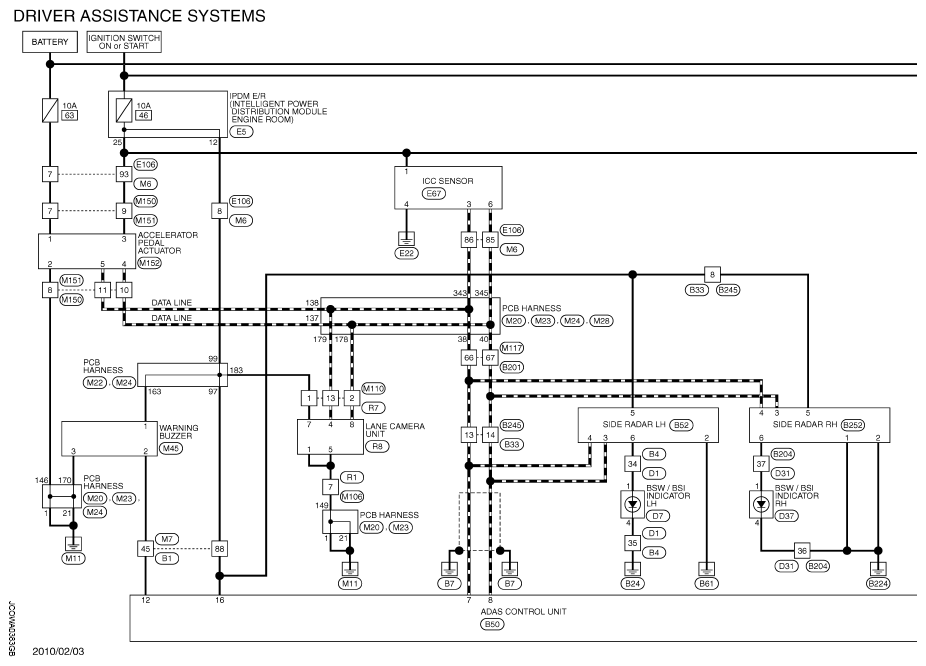

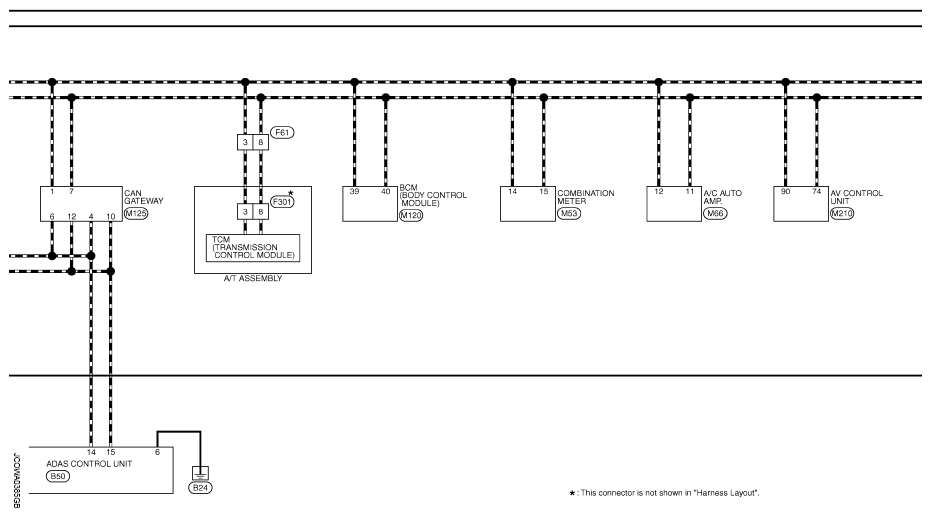

Fig 1: Driver Assistance Systems - Wiring Diagram (1 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

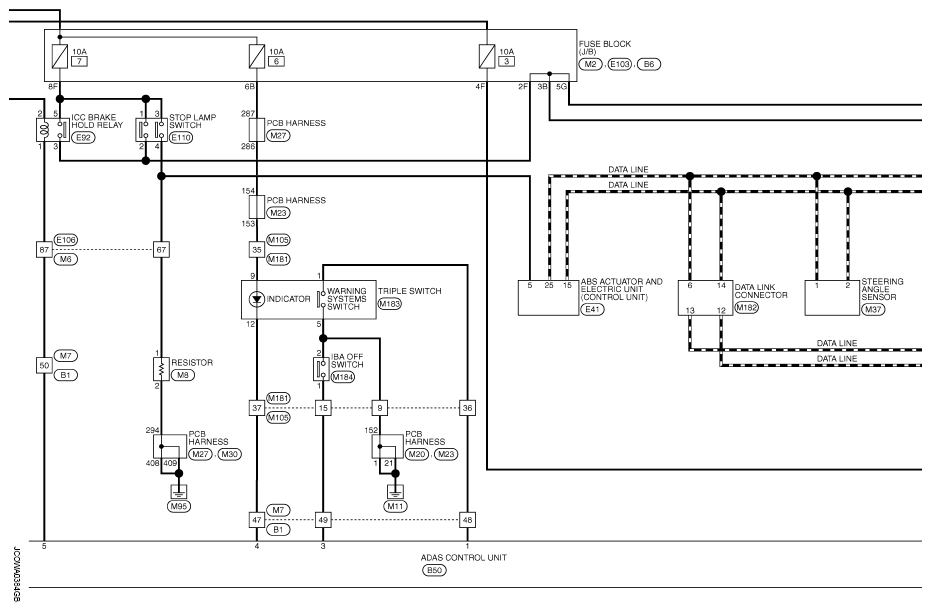

Fig 2: Driver Assistance Systems - Wiring Diagram (2 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

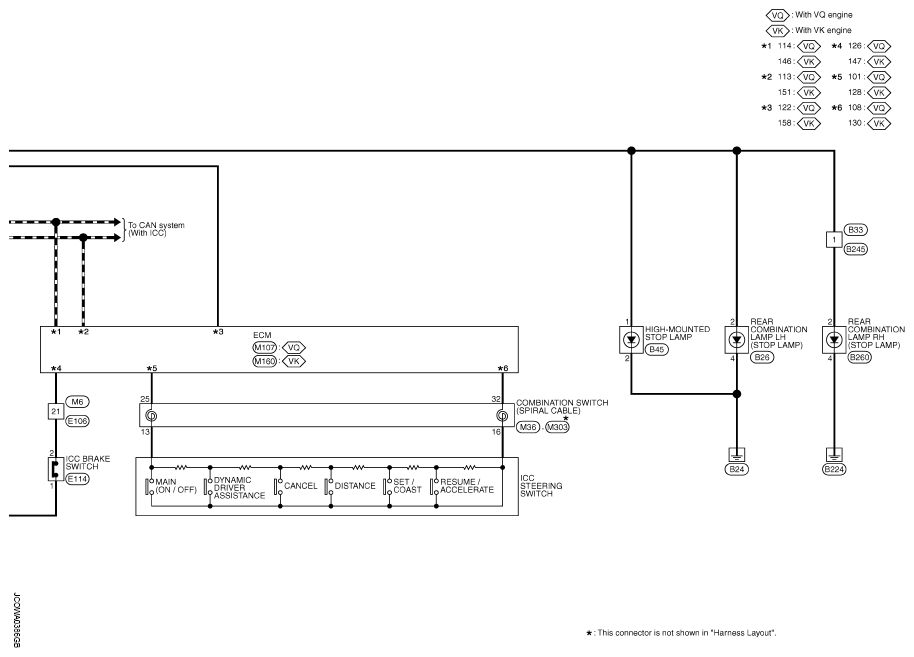

Fig 3: Driver Assistance Systems - Wiring Diagram (3 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 4: Driver Assistance Systems - Wiring Diagram (4 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

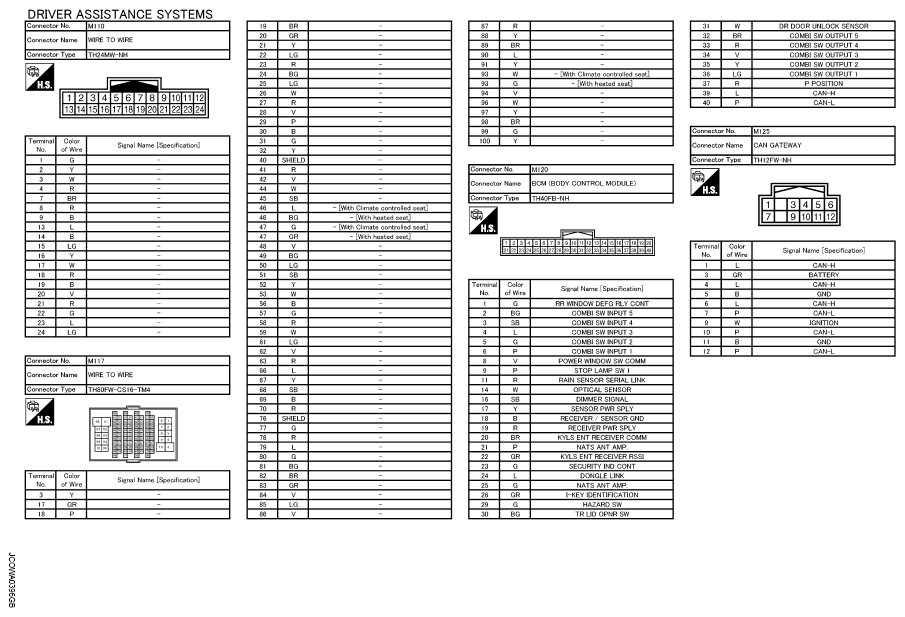

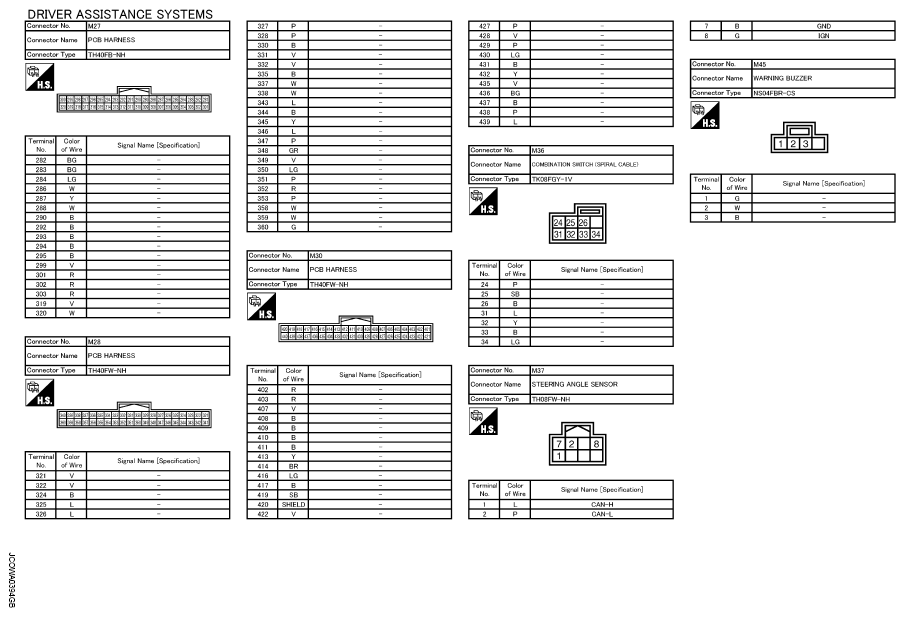

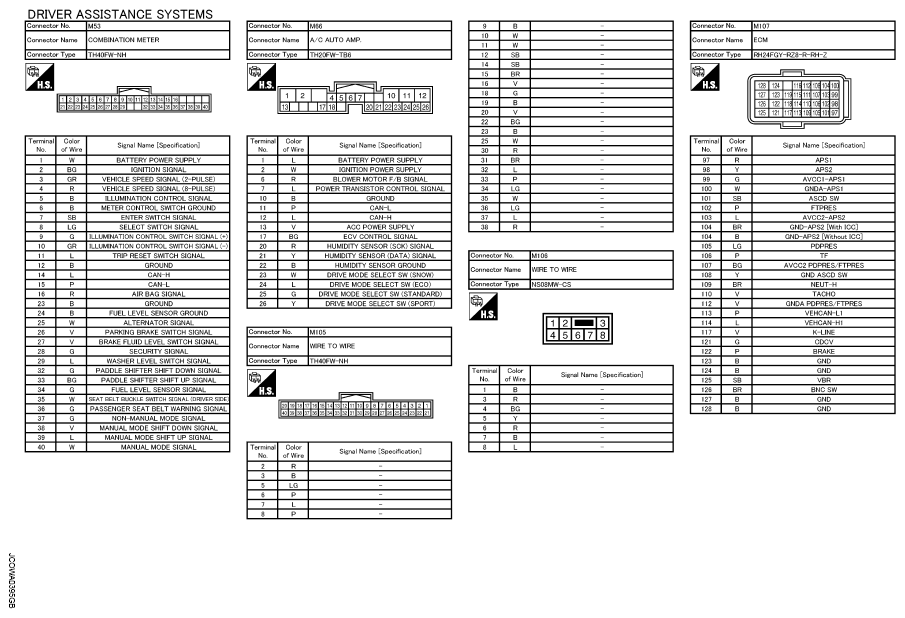

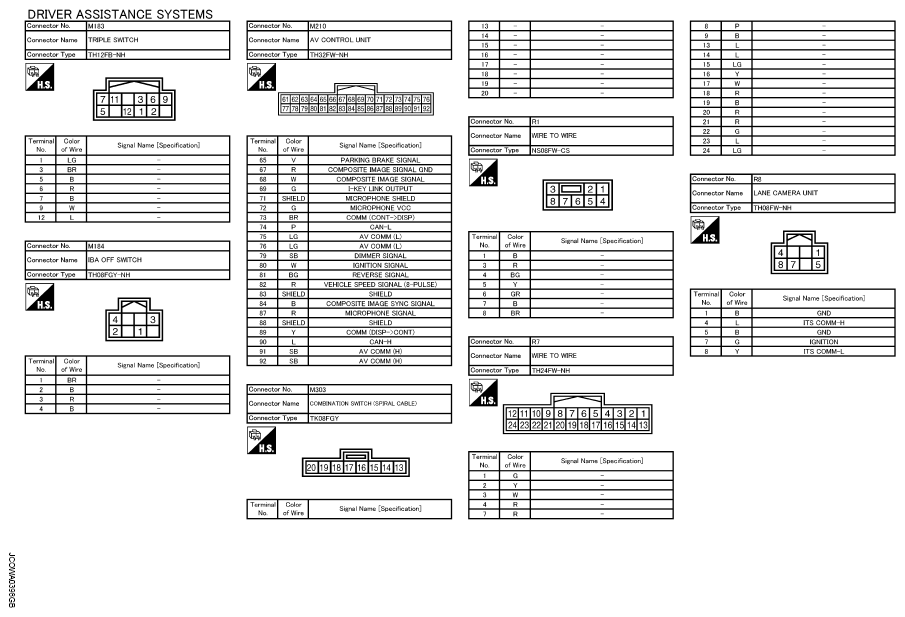

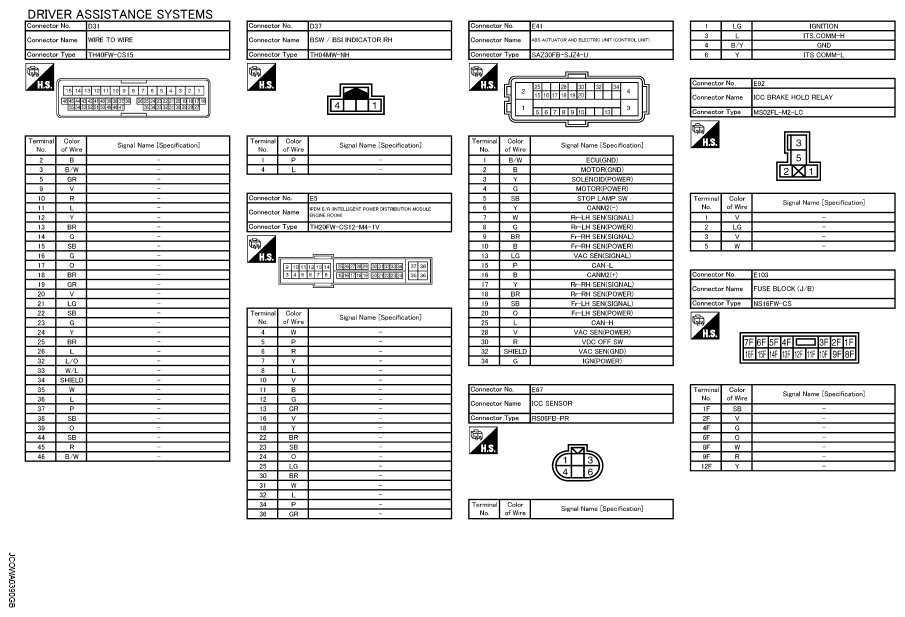

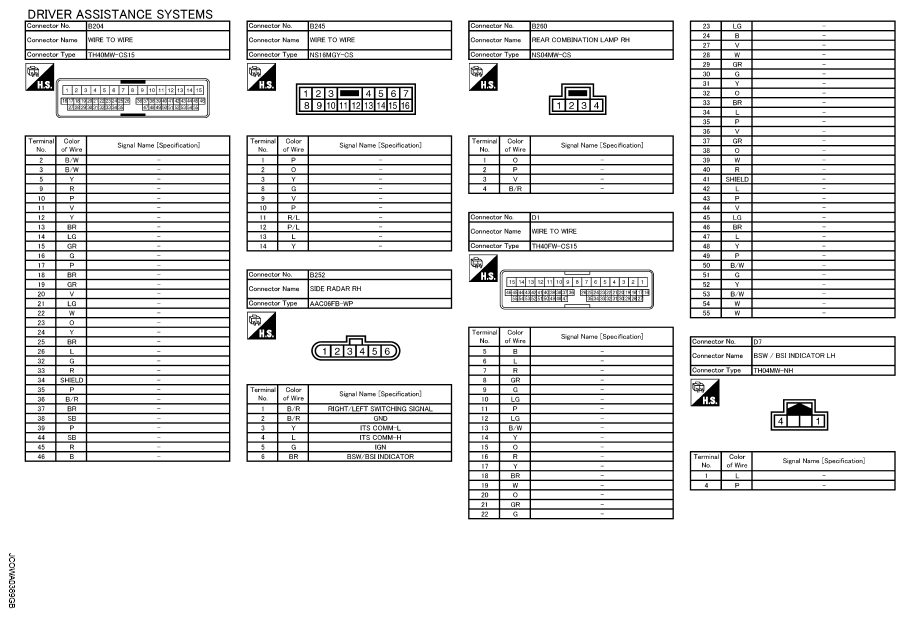

Fig 5: Identifying Driver Assistance Systems Connectors (1 Of 12)

Courtesy of NISSAN MOTOR CO., U.S.A.

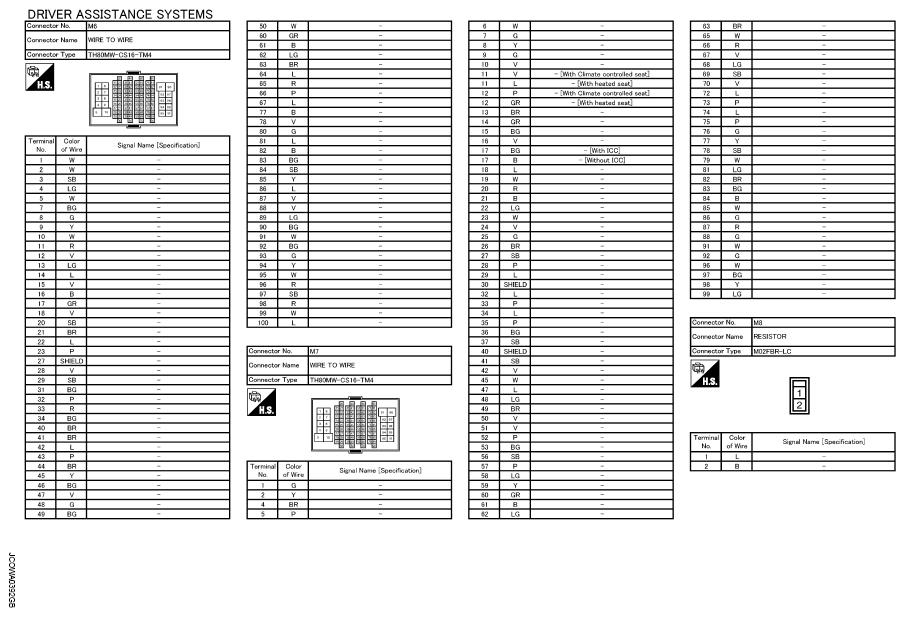

Fig 6: Identifying Driver Assistance Systems Connectors (2 Of 12)

Courtesy of NISSAN MOTOR CO., U.S.A.

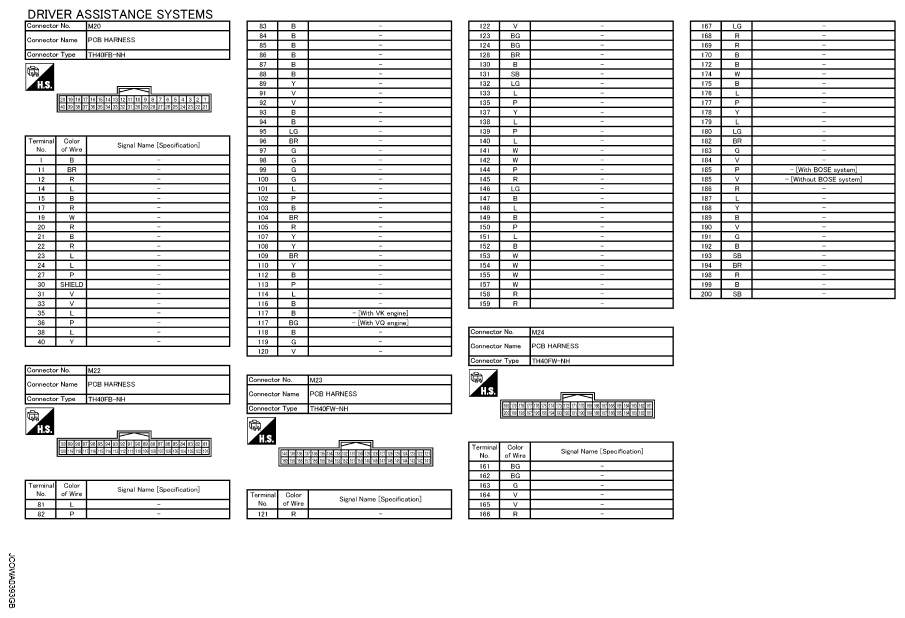

Fig 7: Identifying Driver Assistance Systems Connectors (3 Of 12)

Courtesy of NISSAN MOTOR CO., U.S.A.

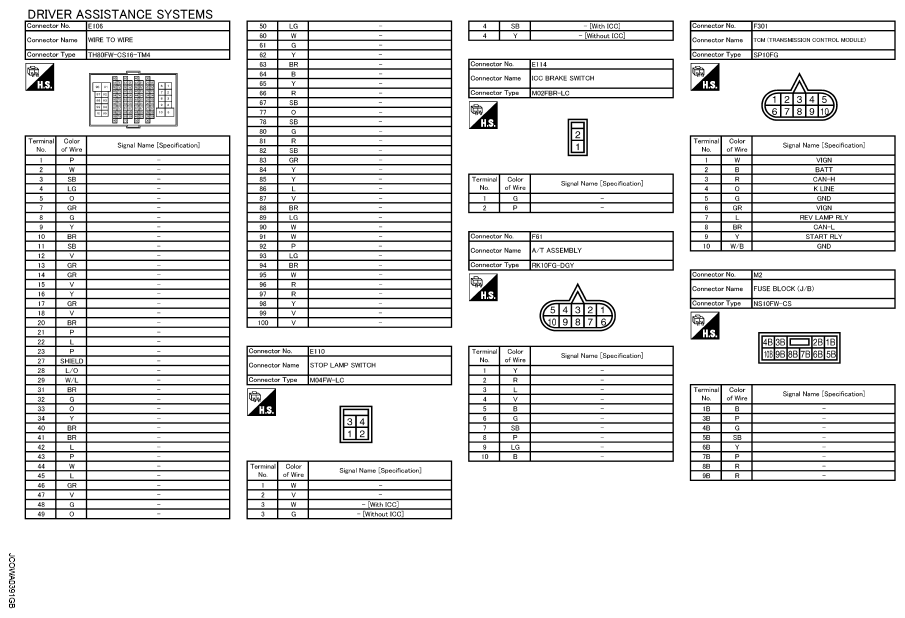

Fig 8: Identifying Driver Assistance Systems Connectors (4 Of 12)

Courtesy of NISSAN MOTOR CO., U.S.A.

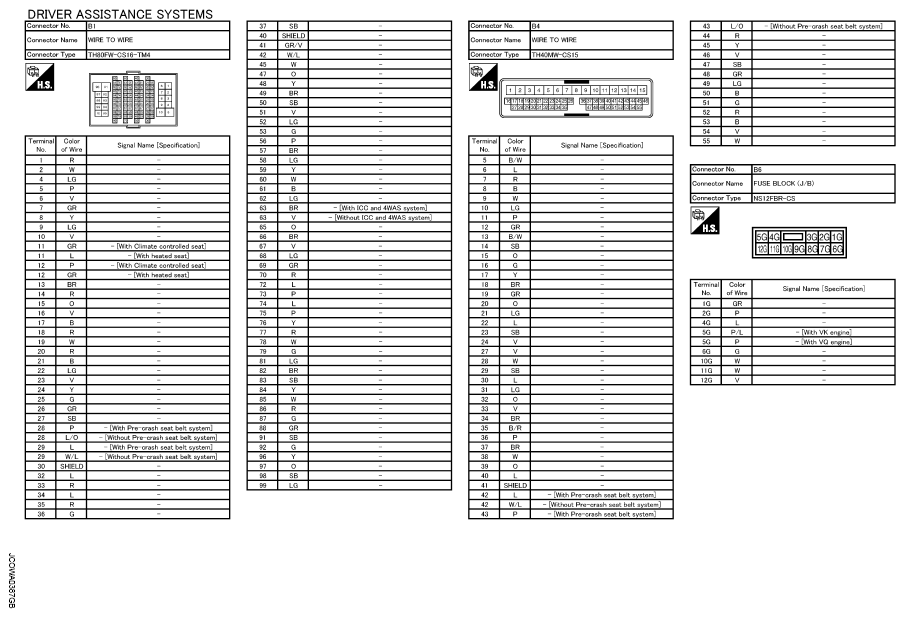

Fig 9: Identifying Driver Assistance Systems Connectors (5 Of 12)

Courtesy of NISSAN MOTOR CO., U.S.A.

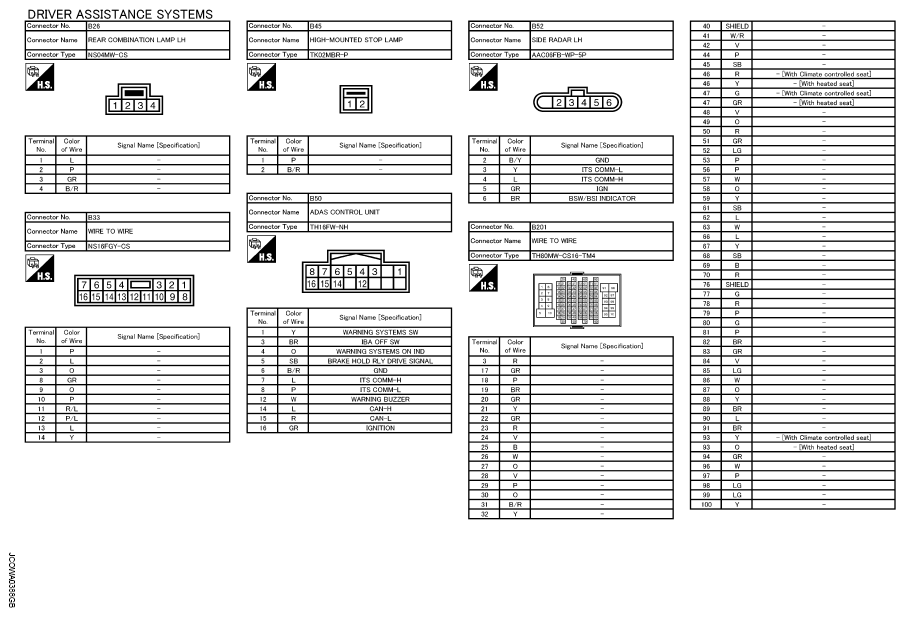

Fig 10: Identifying Driver Assistance Systems Connectors (6 Of 12)

Courtesy of NISSAN MOTOR CO., U.S.A.

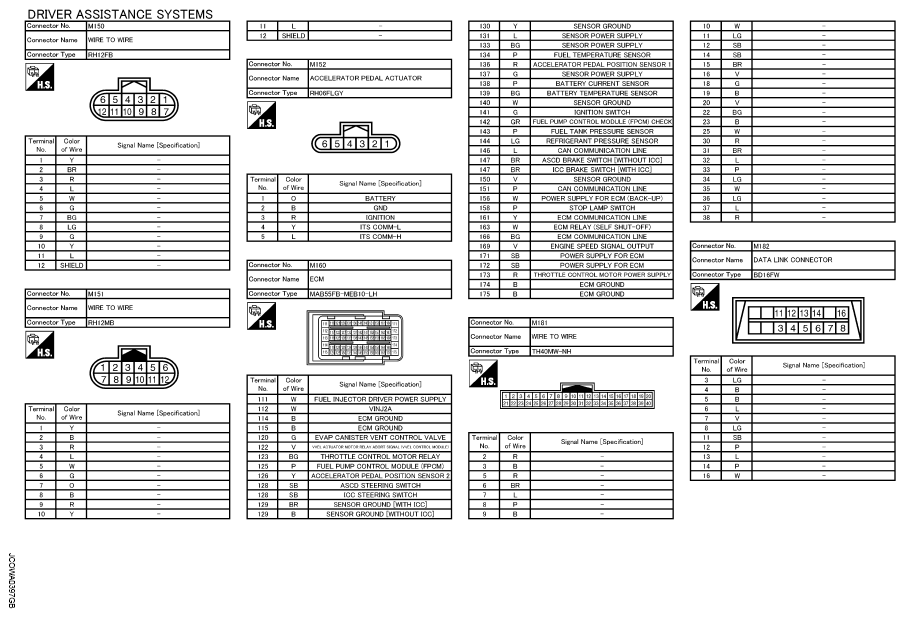

Fig 11: Identifying Driver Assistance Systems Connectors (7 Of 12)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 12: Identifying Driver Assistance Systems Connectors (8 Of 12)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 13: Identifying Driver Assistance Systems Connectors (9 Of 12)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 14: Identifying Driver Assistance Systems Connectors (10 Of 12)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 15: Identifying Driver Assistance Systems Connectors (11 Of 12)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 16: Identifying Driver Assistance Systems Connectors (12 Of 12)

Courtesy of NISSAN MOTOR CO., U.S.A.
