Operation And Display

Forest Air Display

Fig 1: Display Forest Air System State

Courtesy of NISSAN MOTOR CO., U.S.A.

Forest Air system state is indicated on the display.
"Climate" menu is indicated on display when CLIMATE switch of multifunction switch is pressed while FOREST switch is ON. Operation status of Forest Air system is displayed when "Forest Air Info" is touched.

Air flow control (inside odor detecting mechanism)

Display is switched as per the following description depending on interior air status

Interior air status display (1) is blue, while interior air is in clean status.
Interior air status display (1) is orange, while interior air is in dirty status.
NOTE: Interior air status display is not indicated, while air inlet is in manual control status.

Fig 2: Display Interior Air Status
Courtesy of NISSAN MOTOR CO., U.S.A.

Aroma diffuser control

Display is switched as shown in the figure, depending on type of aroma, while aroma diffuser operates.

Leaf scent

Fig 3: Display Aroma Diffuser Control Leaf Scent Switch
Courtesy of NISSAN MOTOR CO., U.S.A.
Fragrant wood

Fig 4: Display Aroma Diffuser Control Fragrant Wood Switch
Courtesy of NISSAN MOTOR CO., U.S.A.

Automatic defogging control

Window portion (1) changes to white and automatic defogging operates, when windshield fogging is detected.

Fig 5: Display Automatic Defogging Control Window Portion
Courtesy of NISSAN MOTOR CO., U.S.A.

Automatic intake control (exhaust gas / outside odor detecting mechanism)

Display is switched as per the following description depending on ambient air status, air inlet status, and switching status of recirculation and fresh air intake.

Ambient air status display (1) is blue, while ambient air is in clean status.
Ambient air status display (1) is orange, while ambient air is in dirty status.
NOTE: Ambient air status display is not indicated, while air inlet is in manual control status.

Fig 6: Display Ambient Air Status
Courtesy of NISSAN MOTOR CO., U.S.A.

Air inlet status is indicated by an arow (1). Lower display (2) indicates air inlet status and control status (automatic control / manual control)

AIR INLET STATUS REFERENCE CHART

Fig 7: Display Air Inlet Status

Courtesy of NISSAN MOTOR CO., U.S.A.

Breezy air control

Animation that is imaged from breezy air (1) is displayed, while breezy air control is operated.

Fig 8: Display Breezy Air Control
Courtesy of NISSAN MOTOR CO., U.S.A.

Plusmacluster™ control

Plasmacluster ™ ion display is switched as shown in the figure depending on air flow.
NOTE:
- Plasmacluster™ ion technology developed by Sharp Corporation is installed in this item.
- Plasmacluster™ is a trademark of Sharp Corporation.

When air flow is small

Fig 9: Display Plusmacluster™ Control Switch For Small Air Flow
Courtesy of NISSAN MOTOR CO., U.S.A.
When air flow is large

Fig 10: Display Plusmacluster™ Control Switch For Large Air Flow
Courtesy of NISSAN MOTOR CO., U.S.A.

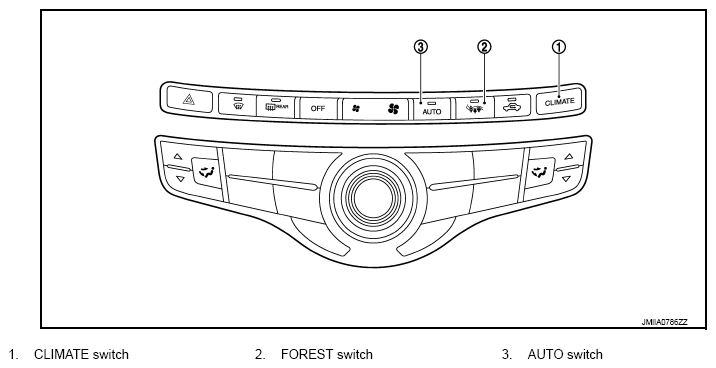

Forest Air Controller (Multifunction switch)

Fig 11: Identifying Climate, Forest And Auto Switches

Courtesy of NISSAN MOTOR CO., U.S.A.

SWITCH FUNCTION CHART

Switch name	Function
AUTO switch	When this switch is pressed, AUTO switch indicator lamp, "AUTO", and "AUTO DEF" on display turn ON, and then automatic defogging control starts.
CLIMATE switch	"Climate" menu is indicated on display when this switch is pressed.
FOREST switch	When this switch is pressed, AUTO switch indicator lamp, FOREST switch indicator lamp, "AUTO", and "AUTO DEF" on display turn ON, and then Forest Air system starts automatic control.
