Driving Pattern A

WARNING: This page is about a different car, the 2012 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

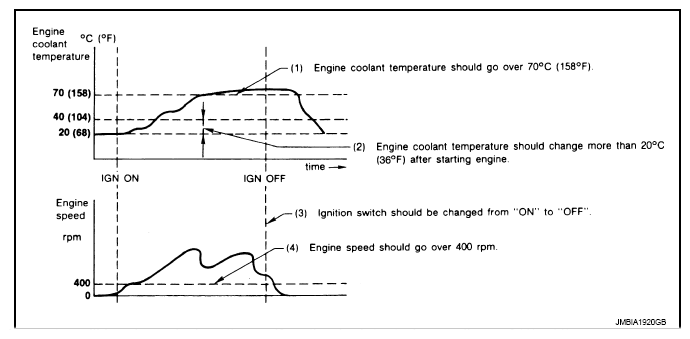

Fig 1: Explanation For Driving Patterns (Fuel Injection System)

Courtesy of NISSAN NORTH AMERICA, INC.

The A counter will be cleared when the malfunction is detected regardless of (1) - (4).
The A counter will be counted up when (1) - (4) are satisfied without the same malfunction.
The DTC will not be displayed after the A counter reaches 40.
