RELAY CONTROL SYSTEM : System Diagram

WARNING: This page is about a different car, the 2011 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

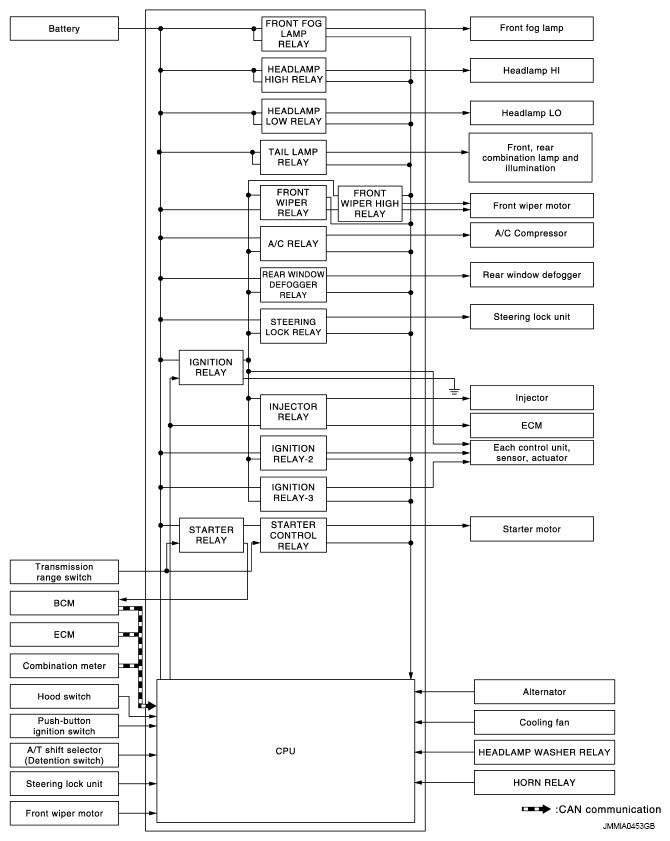

Fig 1: Relay Control - System Diagram
G07024495Courtesy of NISSAN MOTOR CO., U.S.A.
