Calibrating Camera Image
- Perform the calibration of camera image caused by the incorrect mounting position of each camera, etc. Always perform calibration after performing the following work:
- When each camera or each camera mount (door mirror, front grille, etc.) is removed
- When replacing around view monitor control unit
- When performing the calibration initialization, it can be set to the NISSAN factory shipment condition.
Refer to "CALIBRATING CAMERA IMAGE (AROUND VIEW MONITOR): SPECIAL REPAIR REQUIREMENT " for the calibration procedure.

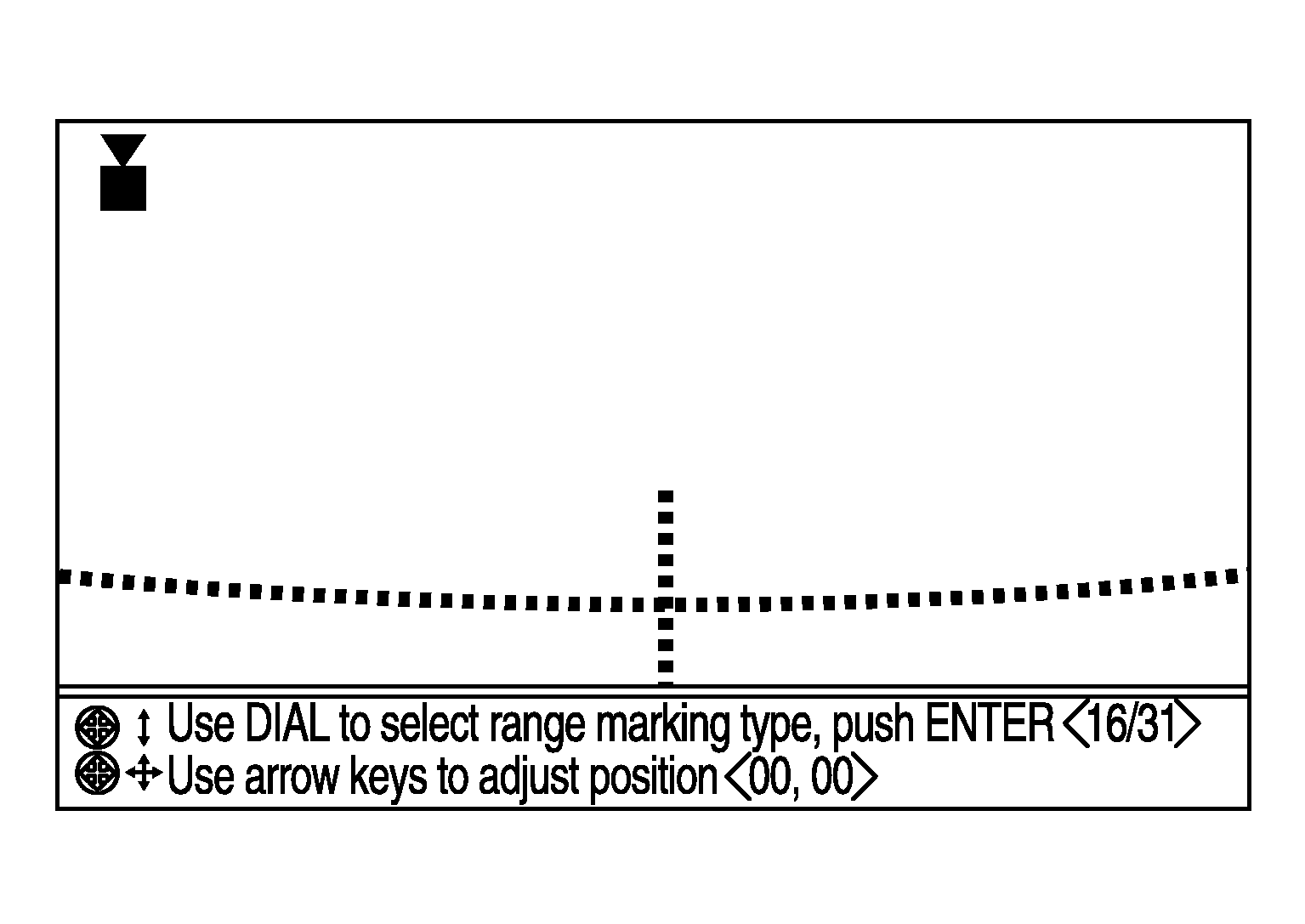

Adjustment range
Rotating direction: 31 patterns (16 on the center)
Upper/lower direction: -99 - 99
Left/right direction: -99 - 99
CALIBRATING CAMERA IMAGE ITEM LIST
| Items | Description | ||
|---|---|---|---|
| Rear Camera | Performs the calibration of rear camera. | ||
| Pass-Side Camera | Performs the calibration of side camera RH. | ||
| Front Camera | Performs the calibration of front camera. | ||
| Dr-Side Camera | Performs the calibration of side camera LH. | ||
| Initialize Camera Image Calibration(1) | The calibration can be initialized to the factory shipment setting. | ||
|
|||
