Adjust Offset of Rear view Camera
Use this mode to adjust the guide line display position of the rearview monitor if necessary after removing the rear view monitor camera.

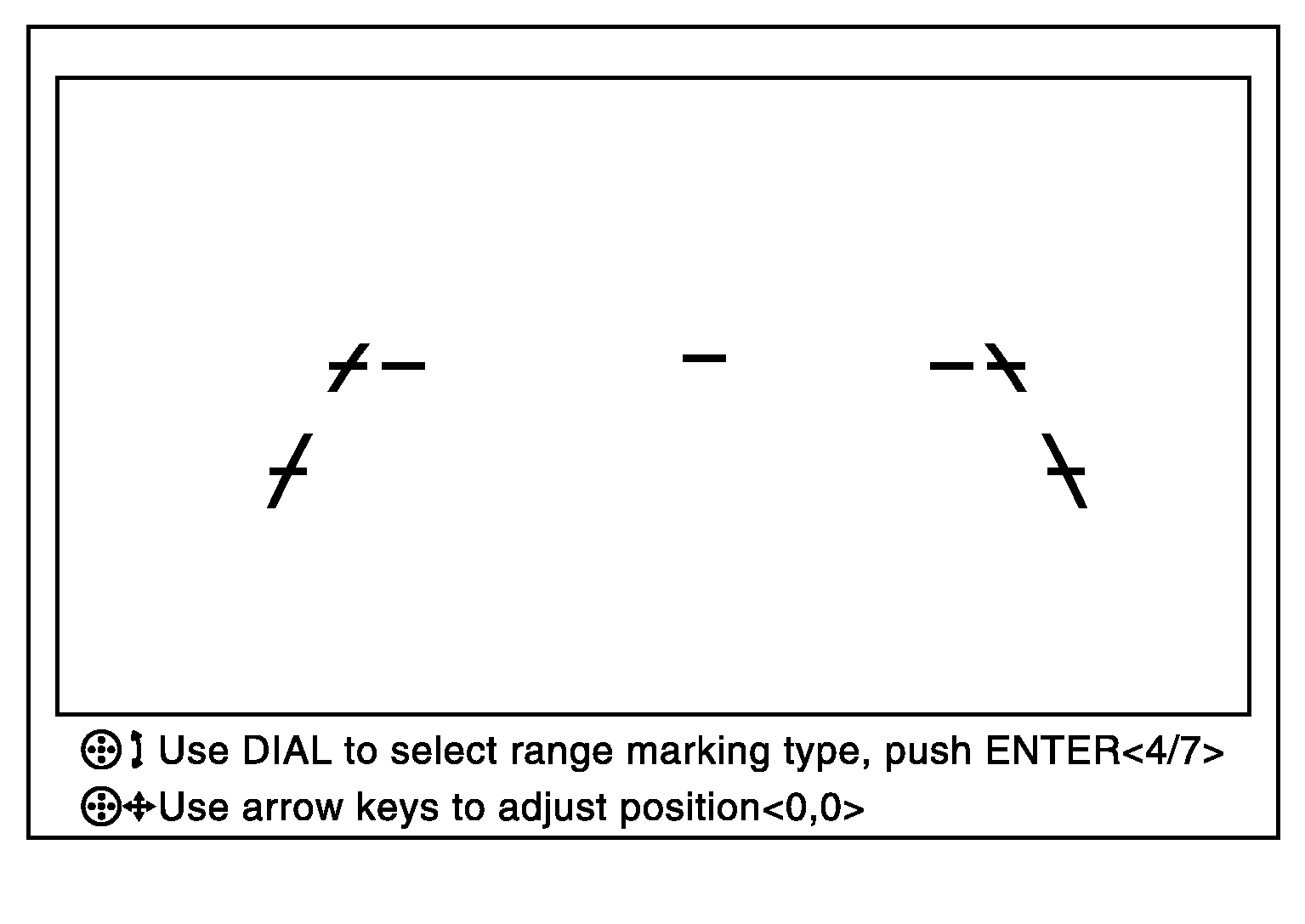

Fig 1: Display - Rear View Camera Adjusting Screen
Courtesy of NISSAN NORTH AMERICA, INC.
