Bulb Check Action And Fail-Safe Indication: Notes

Vehicle condition/Driver's operation	BSW indicator	Warning systems ON indicator	Indication on the combination meter
Ignition switch: OFF => ON	Approx. 2 sec. ON	Approx. 5 sec. ON(1)	Courtesy of NISSAN NORTH AMERICA, INC.
When DTC is detected	OFF	ON	Courtesy of NISSAN NORTH AMERICA, INC.
When radar blockage is detected	OFF	ON	Courtesy of NISSAN NORTH AMERICA, INC.
(1) If BSW initial state is ON, warning systems ON indicator continues turned ON.

NOTE: The condition is seen regardless BSW system status (ON/OFF).

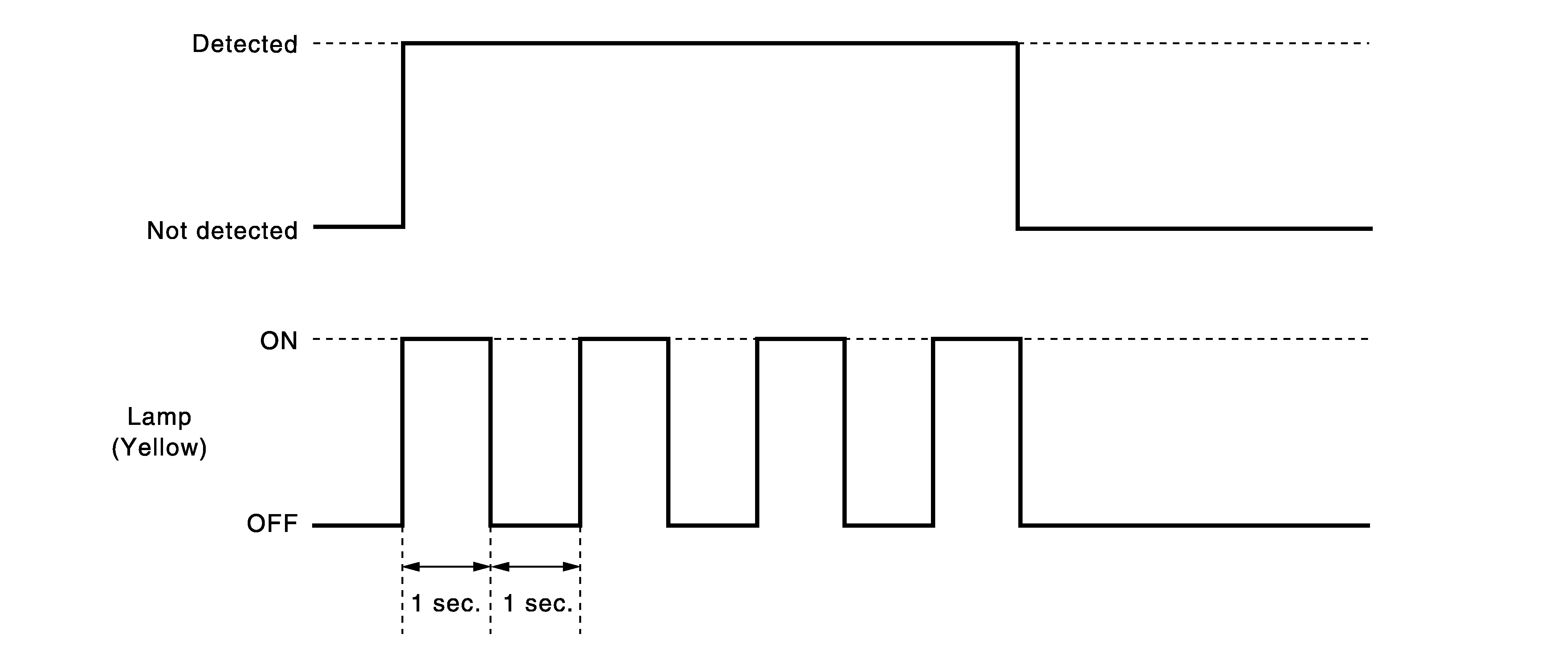

Fig 1: Side Radar Blockage Condition Blinking Cycle

Courtesy of NISSAN NORTH AMERICA, INC.

NOTE: Time shown in the figure is approximate time.
