Wiring Diagram - INTELLIGENT KEY SYSTEM/ENGINE START FUNCTION -

WARNING: This page is about a different car, the 2011 Infiniti EX35. However, it is still accessible from the selected car via links, so may be relevant.

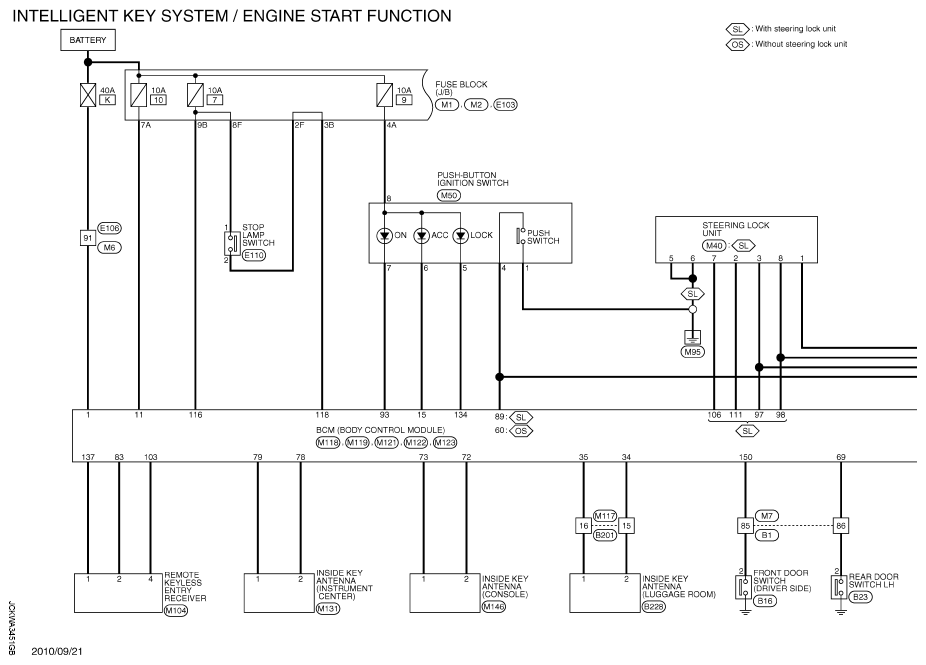

Fig 1: Intelligent Key System/Engine Start Function - Wiring Diagram (1 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

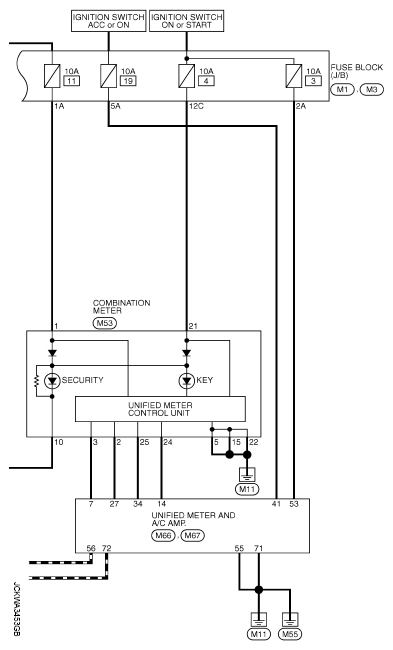

Fig 2: Intelligent Key System/Engine Start Function - Wiring Diagram (2 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

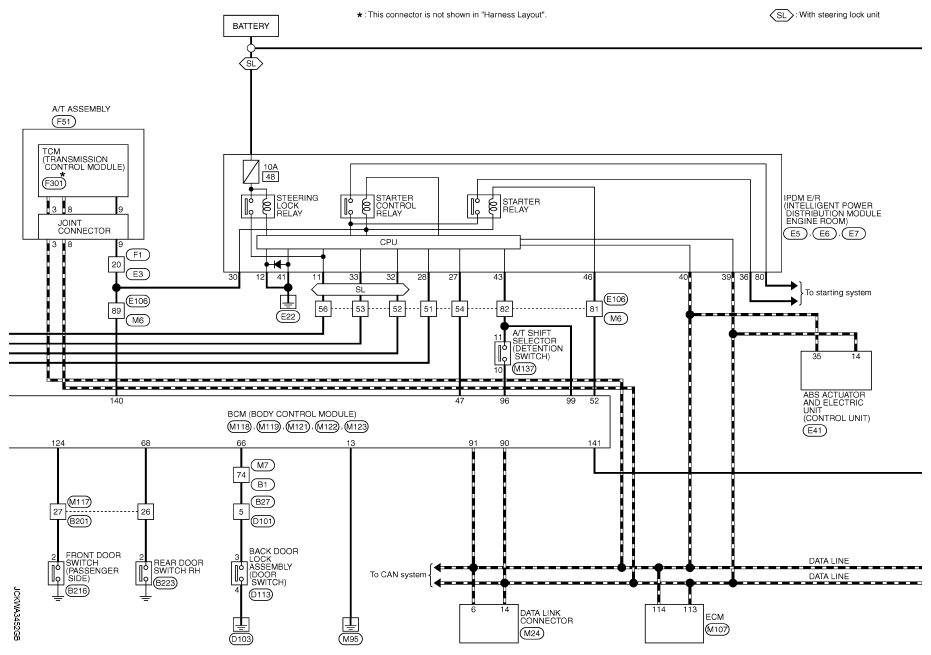

Fig 3: Intelligent Key System/Engine Start Function - Wiring Diagram (3 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

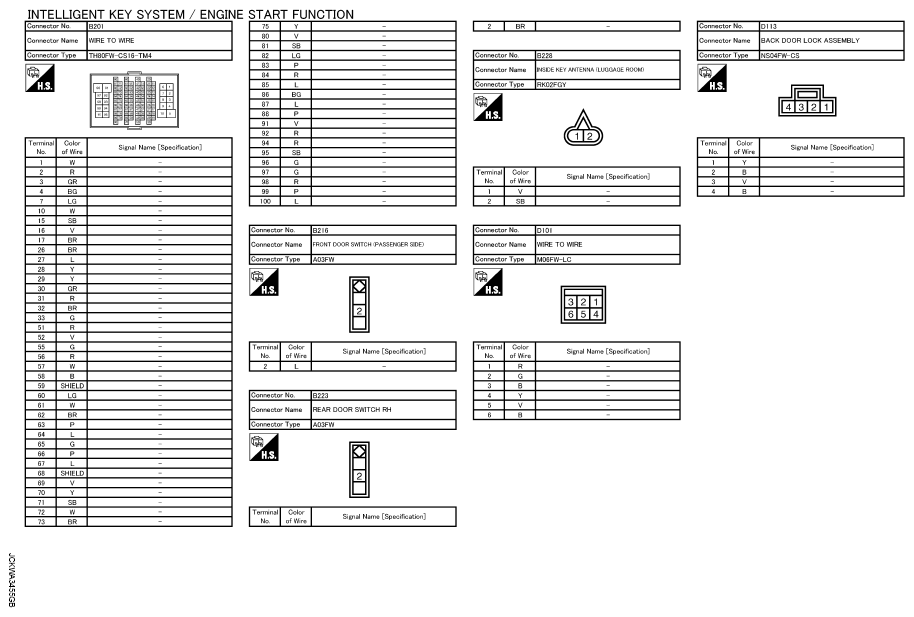

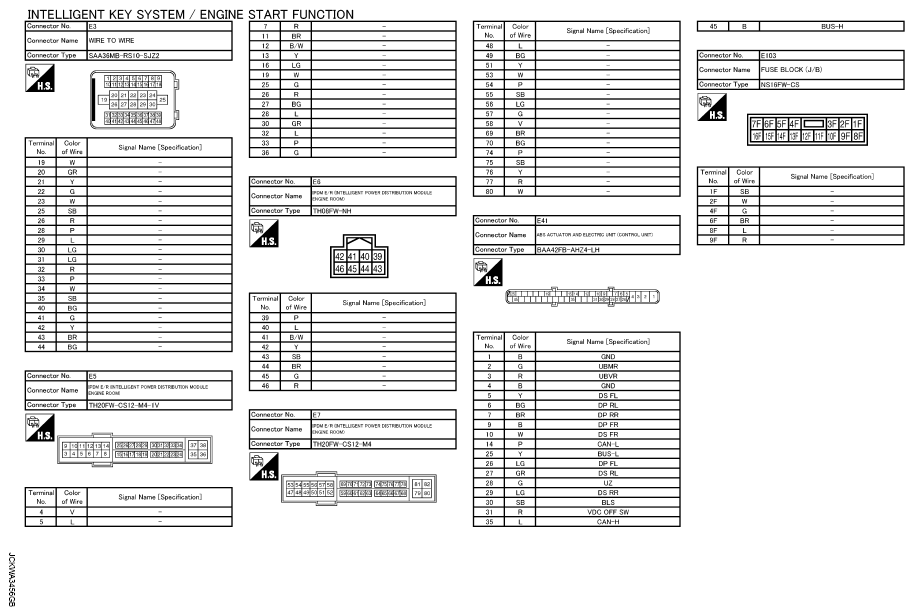

Fig 4: Identifying Intelligent Key System/Engine Start Function Connectors Terminal Identification (1 Of 9)

Courtesy of NISSAN MOTOR CO., U.S.A.

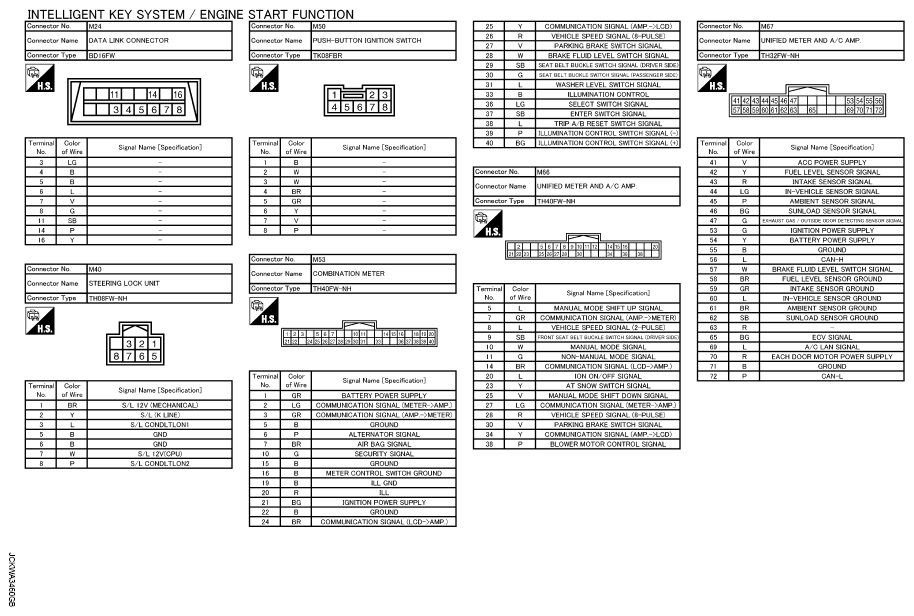

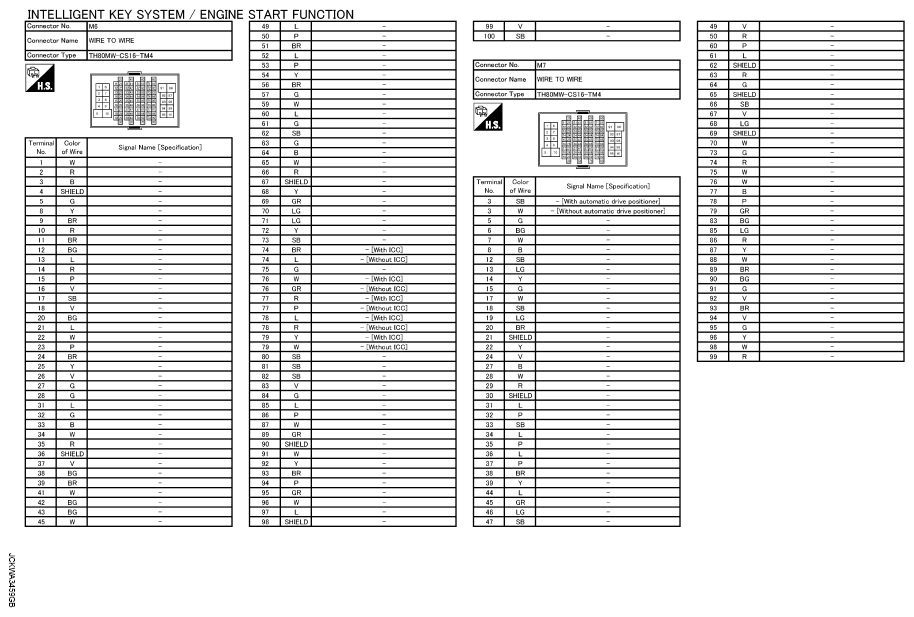

Fig 5: Identifying Intelligent Key System/Engine Start Function Connectors Terminal Identification (2 Of 9)

Courtesy of NISSAN MOTOR CO., U.S.A.

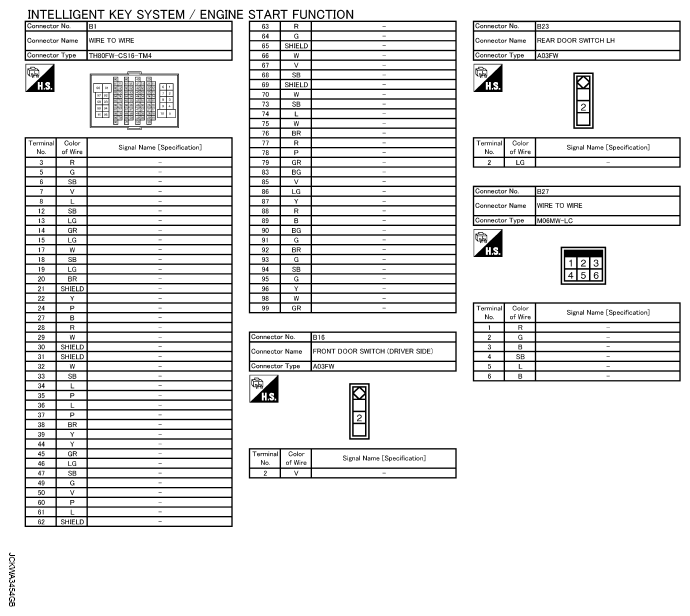

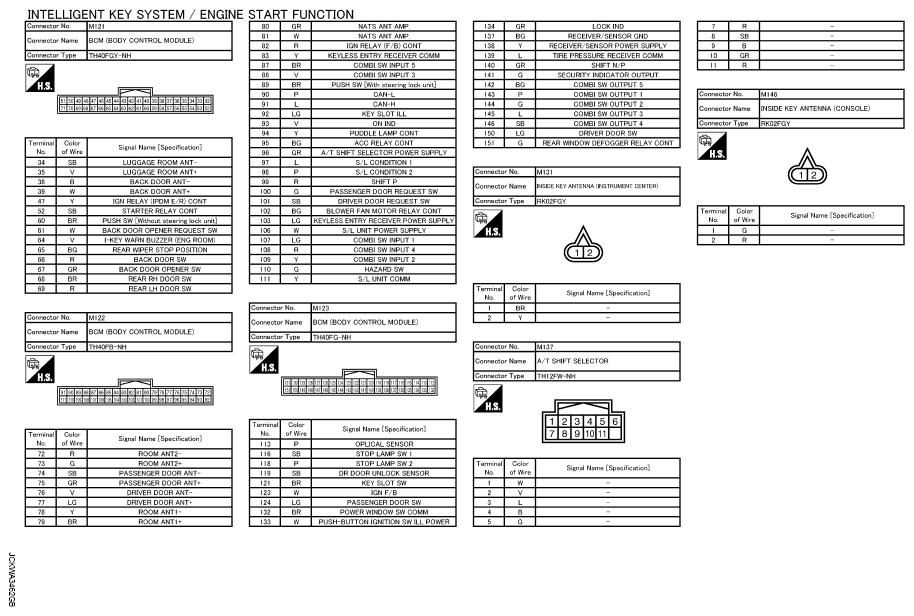

Fig 6: Identifying Intelligent Key System/Engine Start Function Connectors Terminal Identification (3 Of 9)

Courtesy of NISSAN MOTOR CO., U.S.A.

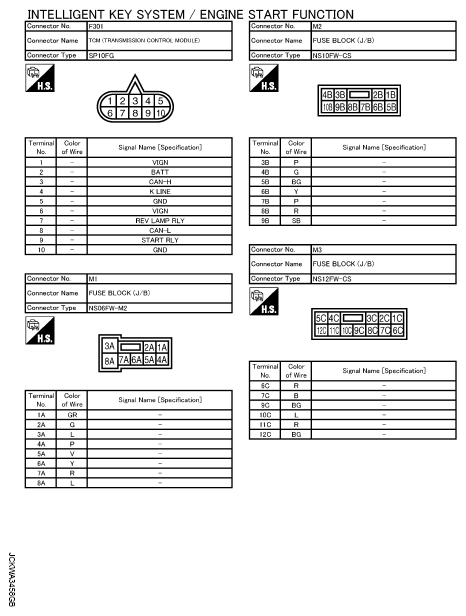

Fig 7: Identifying Intelligent Key System/Engine Start Function Connectors Terminal Identification (4 Of 9)

Courtesy of NISSAN MOTOR CO., U.S.A.

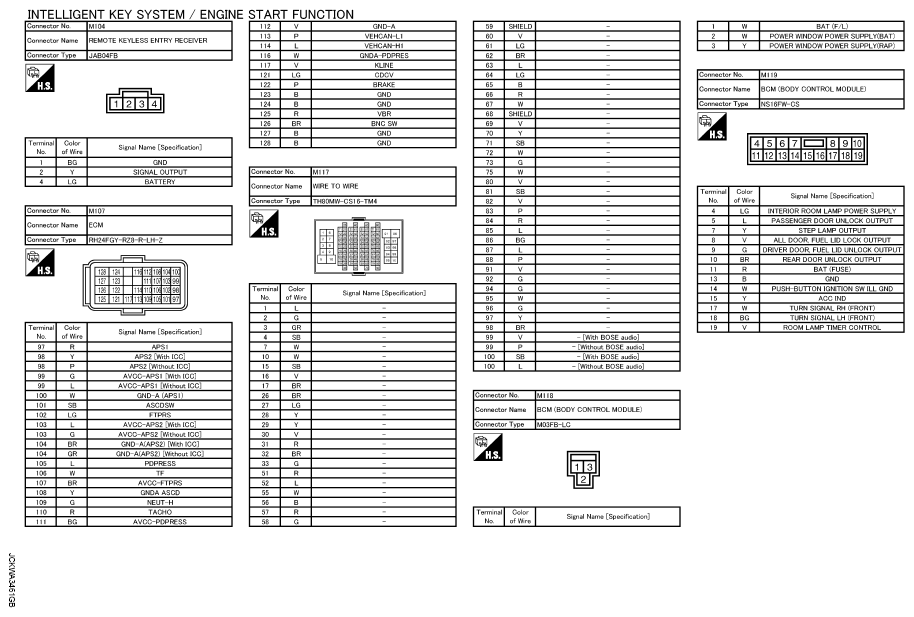

Fig 8: Identifying Intelligent Key System/Engine Start Function Connectors Terminal Identification (5 Of 9)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 9: Identifying Intelligent Key System/Engine Start Function Connectors Terminal Identification (6 Of 9)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 10: Identifying Intelligent Key System/Engine Start Function Connectors Terminal Identification (7 Of 9)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 11: Identifying Intelligent Key System/Engine Start Function Connectors Terminal Identification (8 Of 9)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 12: Identifying Intelligent Key System/Engine Start Function Connectors Terminal Identification (9 Of 9)

Courtesy of NISSAN MOTOR CO., U.S.A.
