MULTI AV SYSTEM: System Diagram

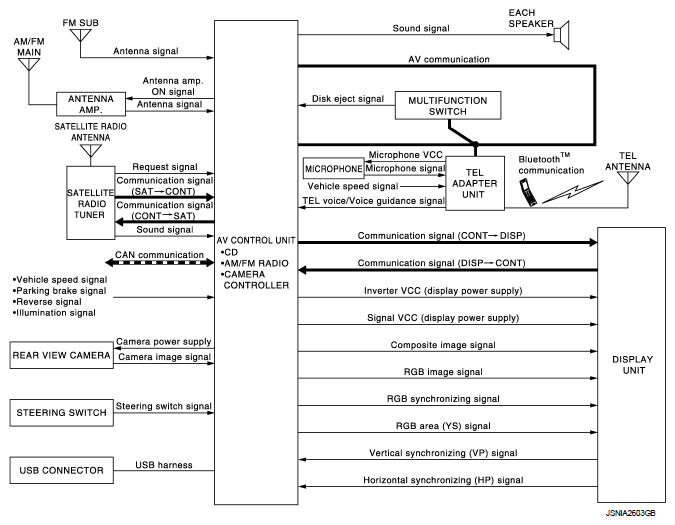

Fig 1: Multi AV System - System Diagram
G07010781Courtesy of NISSAN NORTH AMERICA, INC.
NOTE: The name MULTIFUNCTION SWITCH indicates the integration of PRESET SWITCH and MULTIFUNCTION SWITCH virtually.
