WITH LEFT AND RIGHT VENTILATION TEMPERATURE SEPARATELY CONTROL SYSTEM: System Description

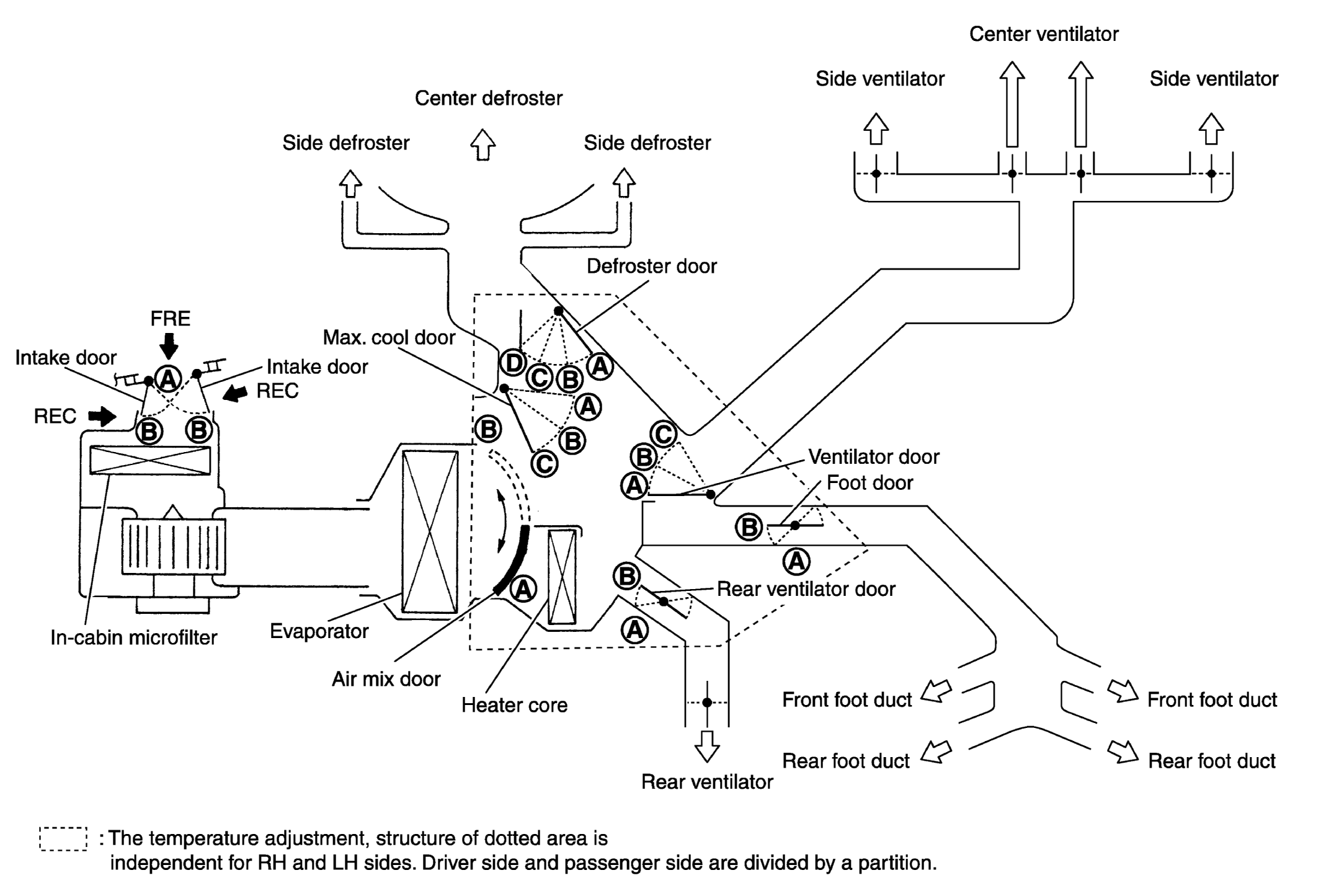

Fig 1: Ventilation System Switches And Their Control Function Diagram (With Left And Right Ventilation Temperature Separately Control System)

Courtesy of NISSAN NORTH AMERICA, INC.

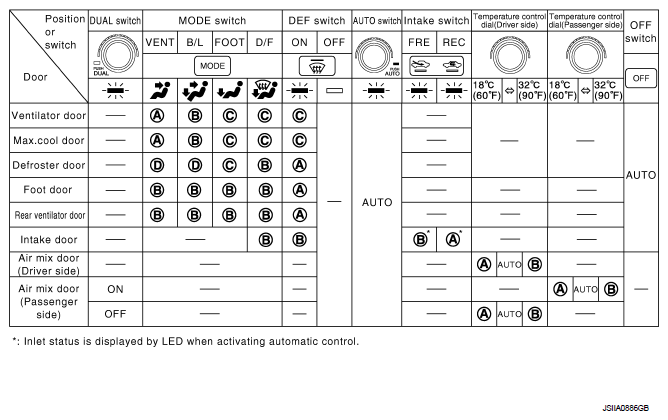

Fig 2: Ventilation System Switches And Their Control Function Chart (With Left And Right Ventilation Temperature Separately Control System)

Courtesy of NISSAN NORTH AMERICA, INC.
