Home >> Infiniti >> 2012 >> G25 Base >> Repair and Diagnosis >> Engine Mechanical >> Starter >> Starting System (Sedan) >> Removal And Installation >> Starter Motor >> Exploded View >> Disassembly
April 5, 2026: LEMON Manuals is launched! Read the announcement.

Exploded View: Disassembly

Type: S114-932

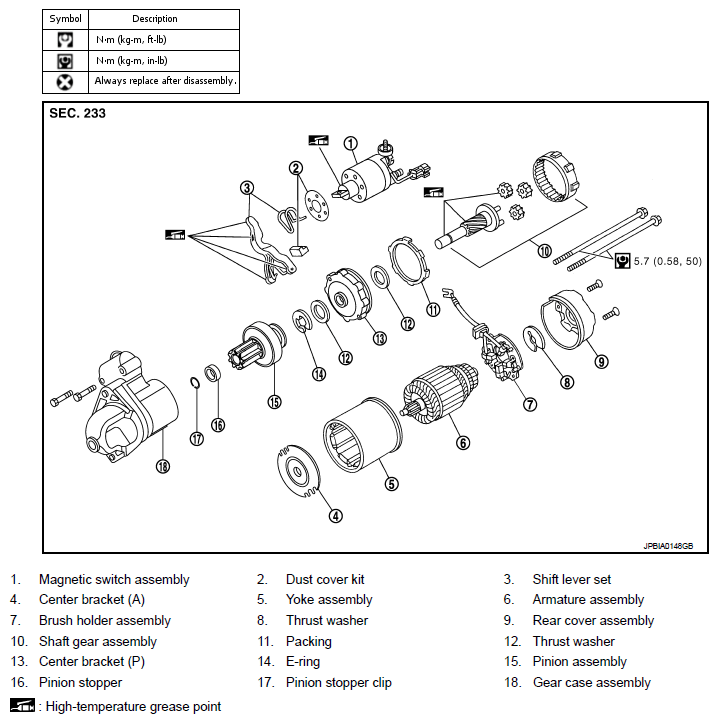

Fig 1: Disassembled View Of Starter Motor
G08456895Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols not described on the above.
