Combination Switch Matrix

WARNING: This page is about a different car, the 2011 Nissan Leaf. However, it is still accessible from the selected car via links, so may be relevant.

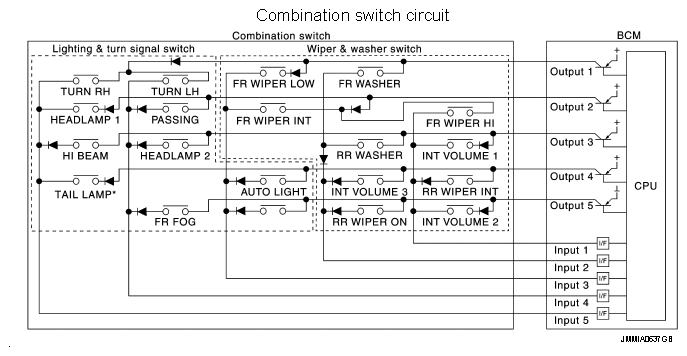

Fig 1: Combination Switch Circuit

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: *: TAIL LAMP switch links lighting switch 1ST and 2ND positions.

Combination switch INPUT-OUTPUT system list

COMBINATION SWITCH INPUT-OUTPUT SYSTEM LIST

System	INPUT 1	INPUT 2	INPUT 3	INPUT 4	INPUT 5
OUTPUT 1	-	FR WASHER	FR WIPER LOW	TURN LH	TURN RH
OUTPUT 2	FR WIPER HI	-	FR WIPER INT	PASSING	HEADLAMP 1
OUTPUT 3	WIP VOLUME 1	RR WASHER	-	HEADLAMP 2	HI BEAM
OUTPUT 4	RR WIPER INT	WIP VOLUME 3	AUTO LIGHT	-	TAIL LAMP
OUTPUT 5	WIP VOLUME 2	RR WIPER ON	-	FR FOG	-

NOTE: Headlamp has a dual system switch.
