Exploded View
WARNING: This page is about a different car, the 2011 Nissan 370Z. However, it is still accessible from the selected car via links, so may be relevant.

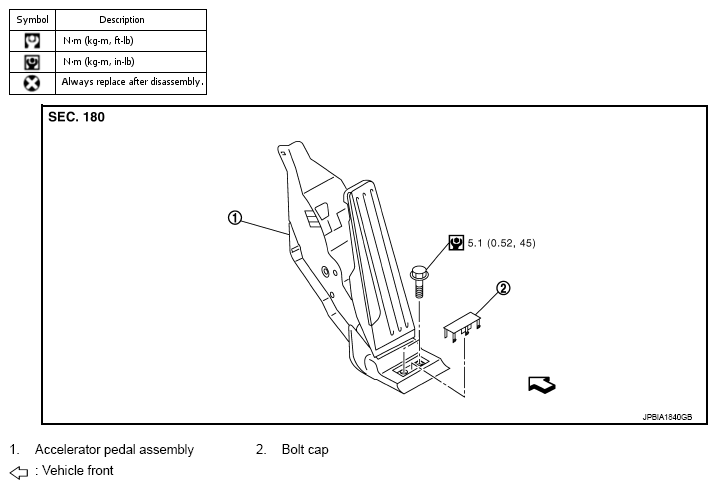

Fig 1: Accelerator Control System Removal/Installation Replacement Components With Torque Specifications
Refer to "COMPONENTS " for symbols in the figure.
