REMOTE KEYLESS ENTRY FUNCTION: Component Parts Location

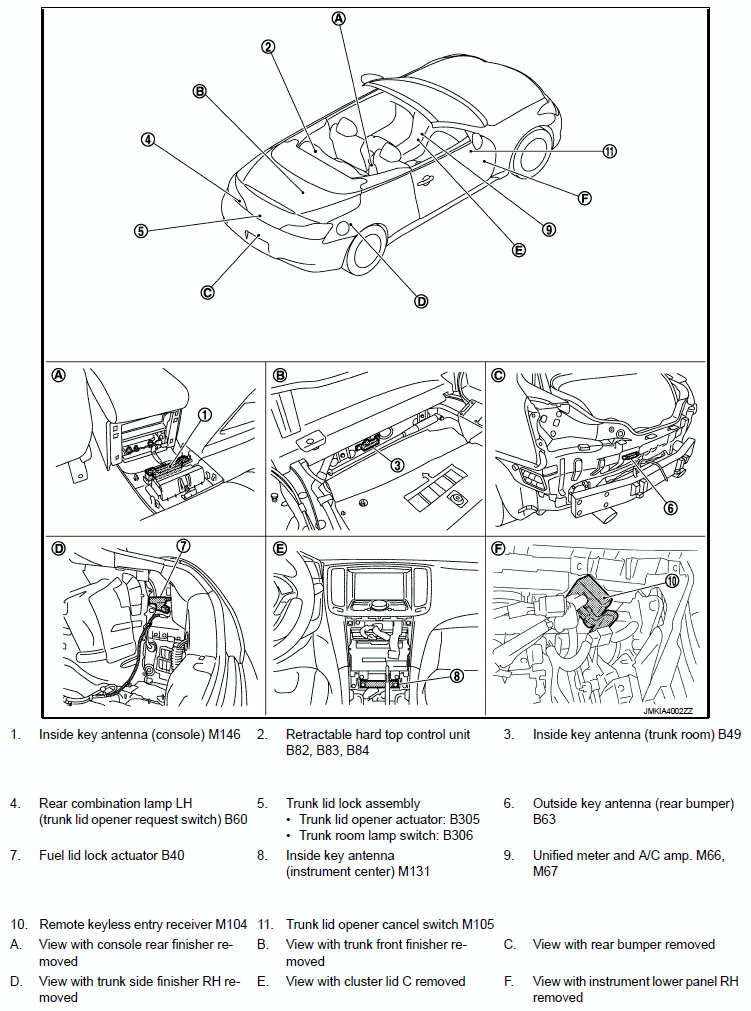

Fig 1: Identifying Remote Keyless Entry Function Component Parts Location (1 Of 2)

Courtesy of NISSAN NORTH AMERICA, INC.

*:With A/T models

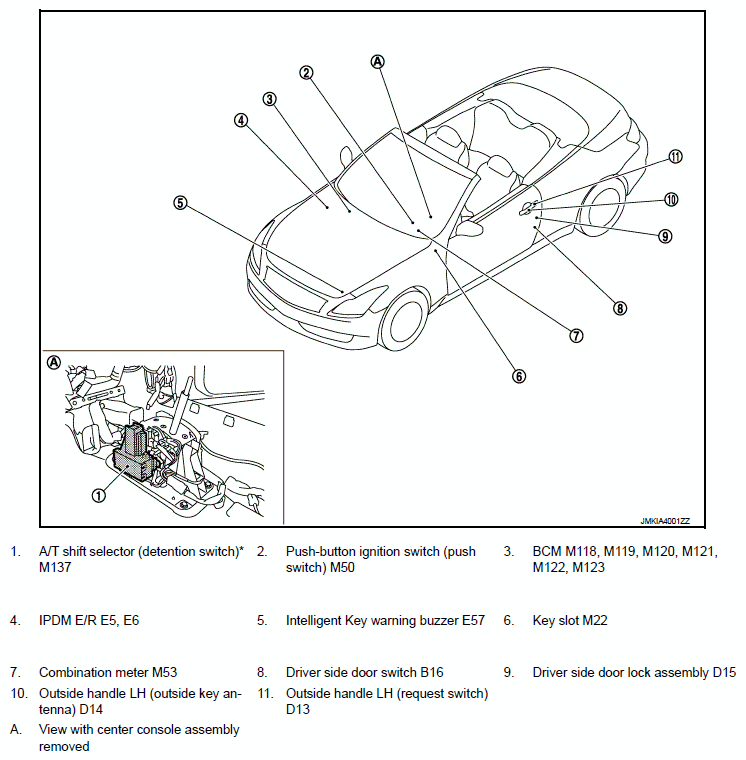

Fig 2: Identifying Remote Keyless Entry Function Component Parts Location (2 Of 2)

Courtesy of NISSAN NORTH AMERICA, INC.
