MULTI AV SYSTEM: System Diagram

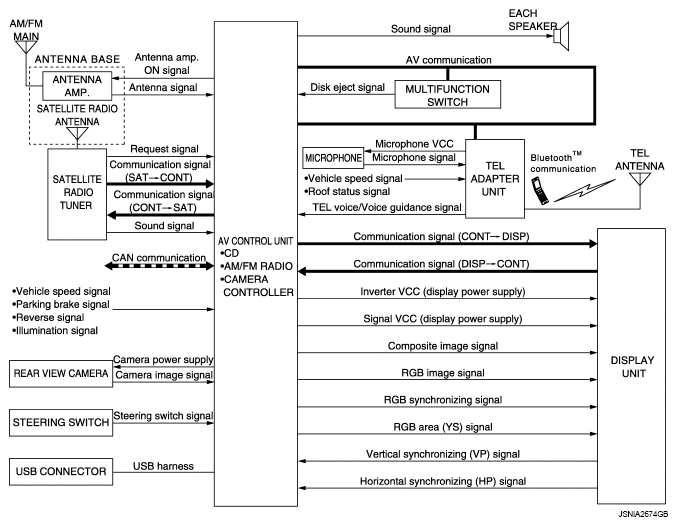

Fig 1: Multi AV - System Diagram

Courtesy of NISSAN NORTH AMERICA, INC.

NOTE:

The name MULTIFUNCTION SWITCH indicates the integration of PRESET SWITCH and MULTIFUNCTION SWITCH virtually.
An antenna base integrated with radio antenna and satellite radio antenna is adopted.

Fig 2: Radio And Satellite Radio Antenna Communication Diagram

Courtesy of NISSAN NORTH AMERICA, INC.
