WITHOUT RAIN SENSOR: System Diagram

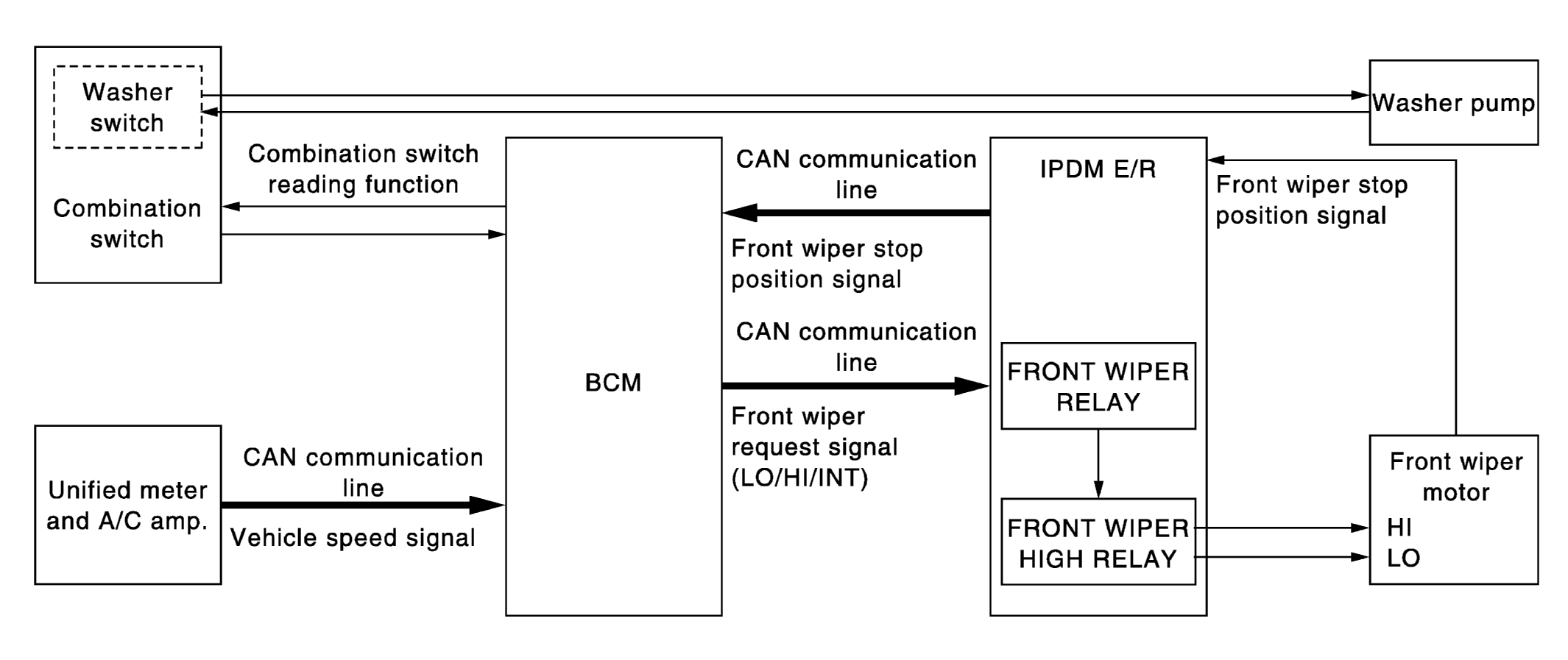

Fig 1: Front Wiper And Washer - System Diagram (Without Rain Sensor)
G05974616Courtesy of NISSAN NORTH AMERICA, INC.
