Intake Sensor

The intake sensor (1) is located on the evaporator. It converts air temperature after it passes through the evaporator (2) into a resistance value which is then input to the unified meter and A/C amp.

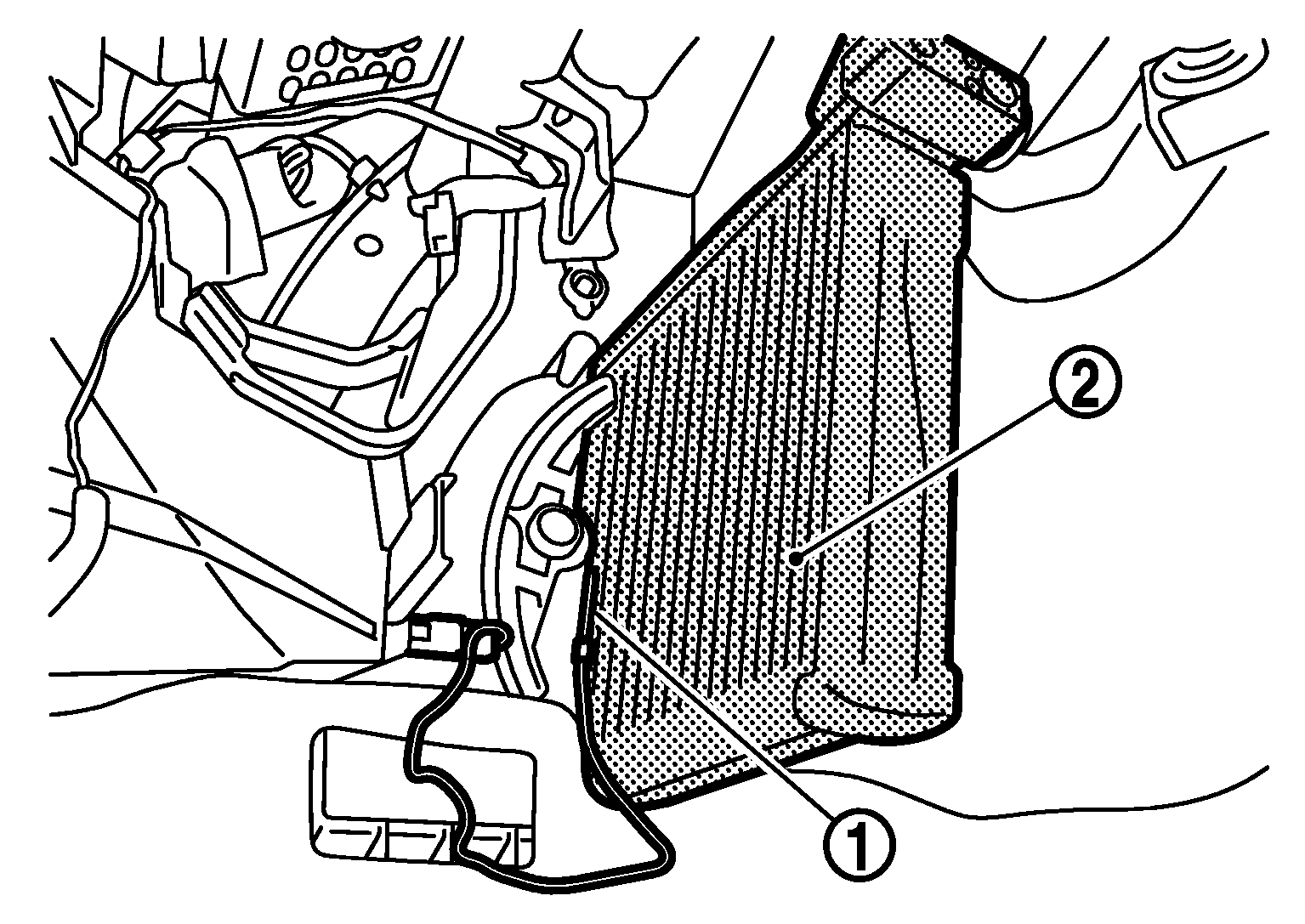

Fig 1: Identifying Intake Sensor And Evaporator

Courtesy of NISSAN NORTH AMERICA, INC.
