Overall Sequence

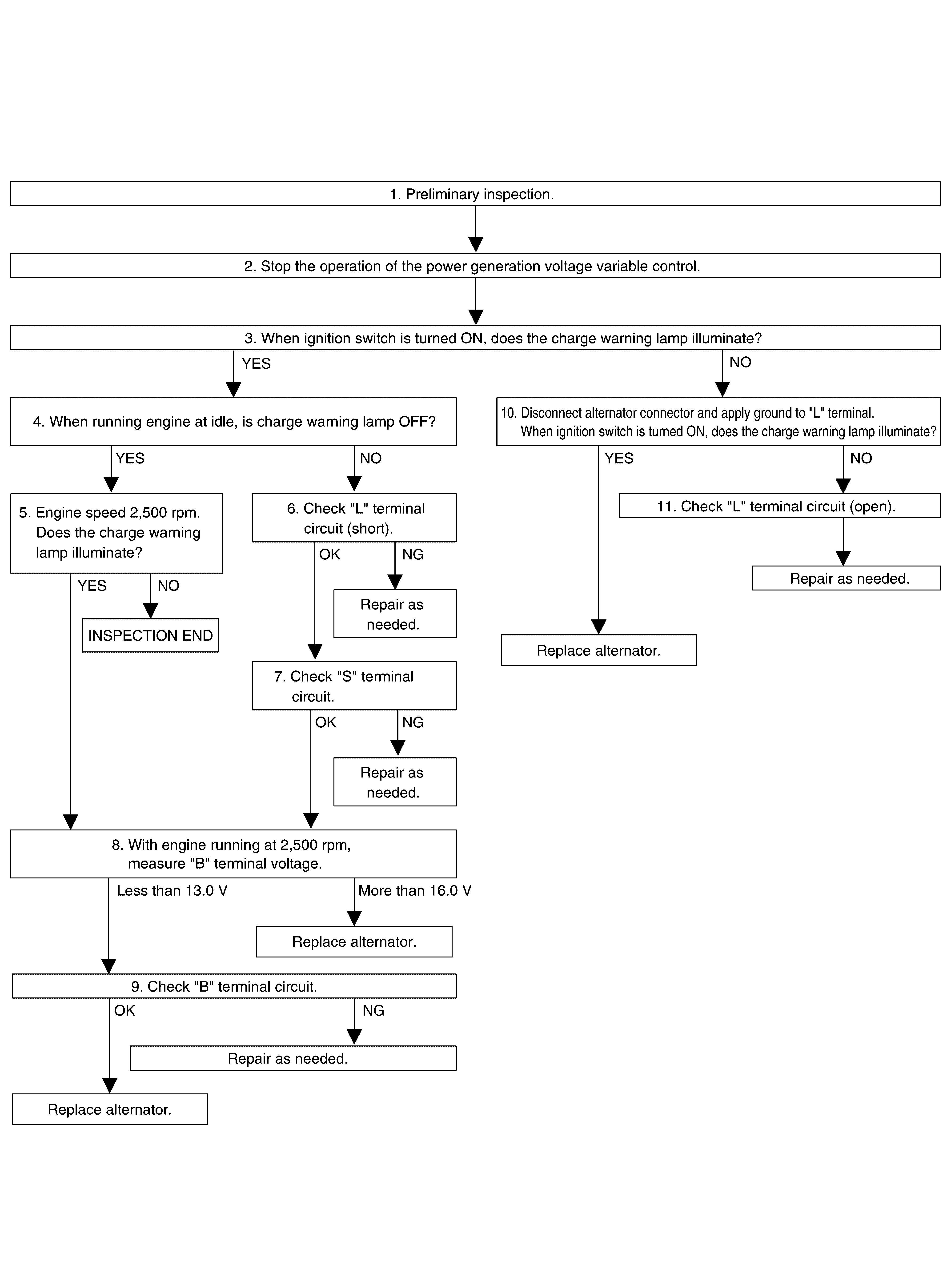

Fig 1: Diagnosis And Repair Work Flow Chart (Without EXP-800 NI Or GR8-1200 NI)
G08427866Courtesy of NISSAN NORTH AMERICA, INC.
