ICC System Display (On The Information Display)

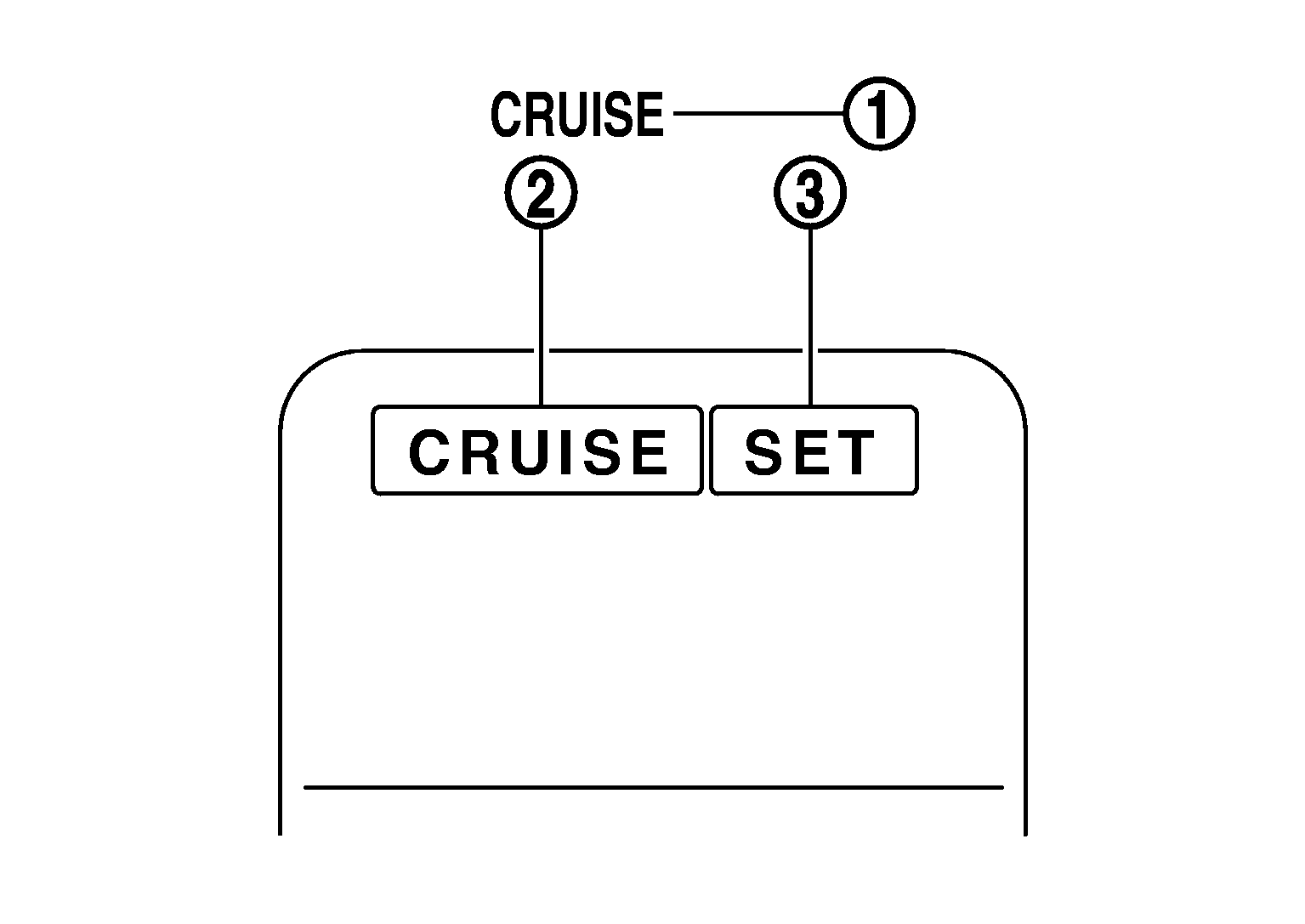

Fig 1: Identifying ICC System Warning Lamp, Main And Set Switch Indicator
G05223976Courtesy of NISSAN NORTH AMERICA, INC.
No. Description Function
1 ICC system warning lamp Indicates that a malfunction occurs in the ICC system.
2 MAIN switch indicator Indicates that the MAIN switch is ON (ICC system ON).
3 SET switch indicator Indicates that the set conventional (fixed speed) cruise control mode is controlled.
