SHIFT PATTERN CONTROL: System Diagram

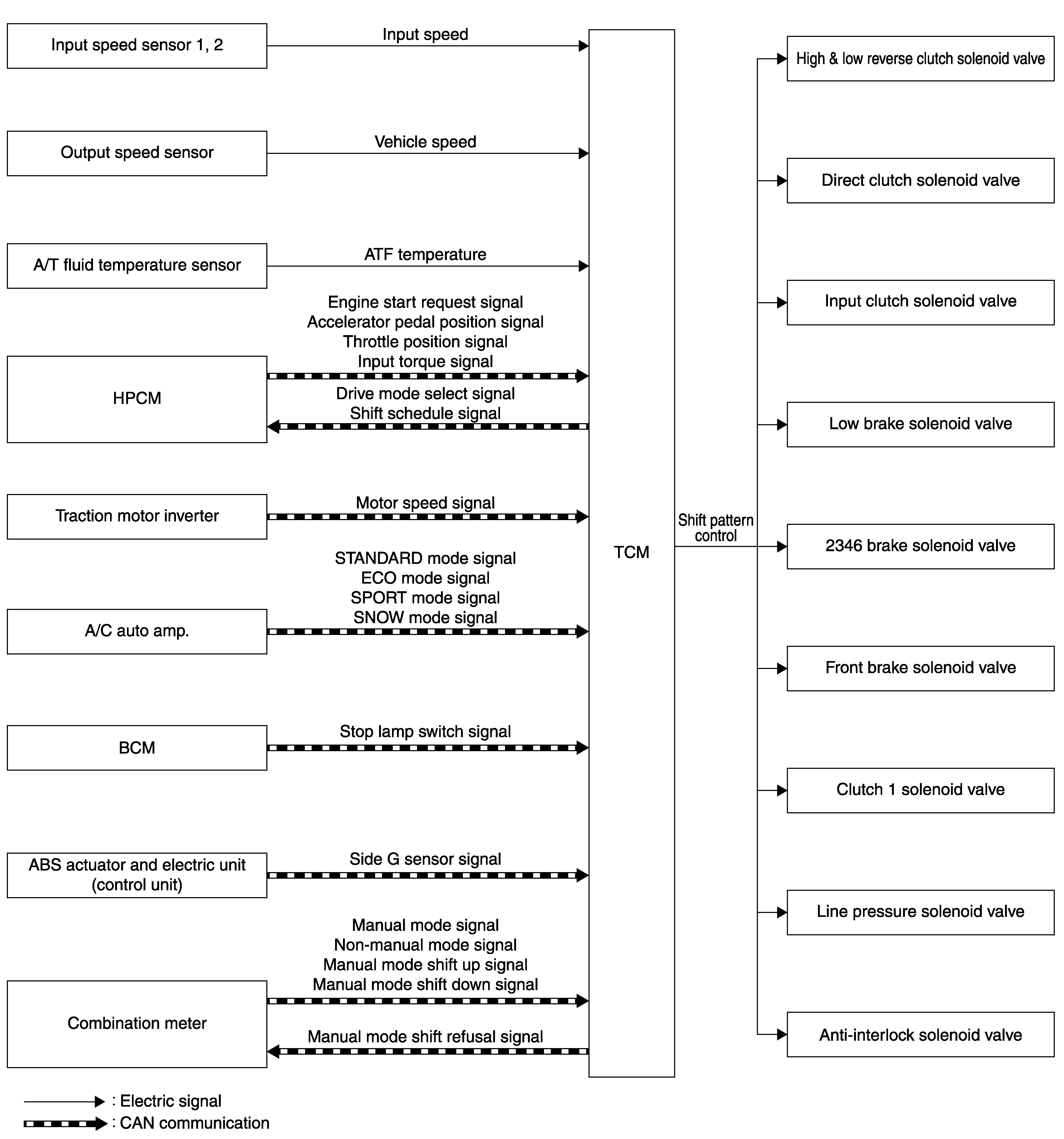

Fig 1: Shift Pattern Control - System Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
