Exploded View

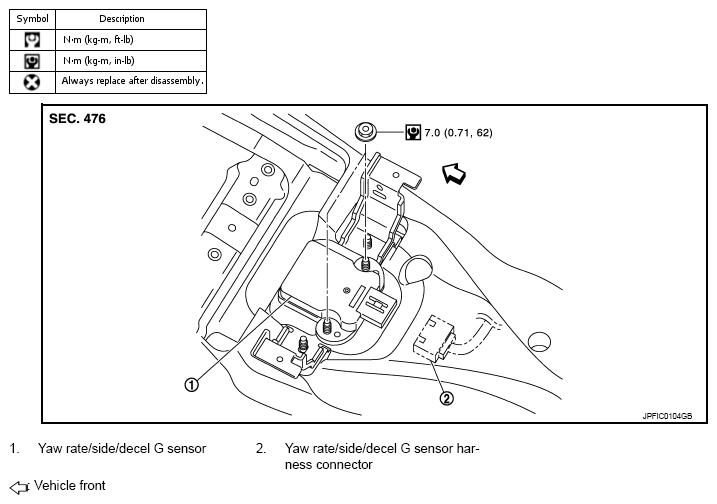

Fig 1: Yaw Rate/Side/Decel G Sensor And Harness Connector With Torque Specification
G08654366Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols in the figure.
