Component Inspection

With CONSULT

1. Turn ignition switch OFF.
2. Reconnect all harness connectors disconnected.
3. Disconnect EVAP purge hoses connected to EVAP canister purge volume control solenoid valve.
4. Turn ignition switch ON.
5. Select "PURG VOL CONT/V" in "ACTIVE TEST" mode with CONSULT.
6. Touch "Qd" and "Qu" on CONSULT screen to adjust "PURG VOL C/V" opening and check air passage continuity of EVAP canister purge volume control solenoid valve under the following conditions.

   Condition (PURG VOL C/V value)	Air passage continuity between (A) and (B)
   100%	Existed
   0%	Not existed

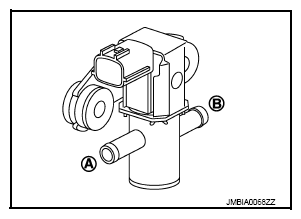

   Fig 1: Identifying EVAP Canister Purge Volume Control Solenoid Valve Ports

   Courtesy of NISSAN NORTH AMERICA, INC.

Without CONSULT

1. Turn ignition switch OFF.
2. Disconnect EVAP canister purge volume control solenoid valve harness connector.
3. Disconnect EVAP purge hoses connected to EVAP canister purge volume control solenoid valve.
4. Check air passage continuity of EVAP canister purge volume control solenoid valve under the following conditions.

   Condition	Air passage continuity between (A) and (B)
   12 V direct current supply between terminals 1 and 2	Existed
   No supply	Not existed

   Is the inspection result normal?

   YES: INSPECTION END

   NO: Replace EVAP canister purge volume control solenoid valve. Refer to "EXPLODED VIEW ".

   Fig 2: Identifying EVAP Canister Purge Volume Control Solenoid Valve Ports

   Courtesy of NISSAN NORTH AMERICA, INC.
