Combination Switch Matrix

WARNING: This page is about a different car, the 2013 Infiniti M56 and 2013 Infiniti M37. However, it is still accessible from the selected car via links, so may be relevant.

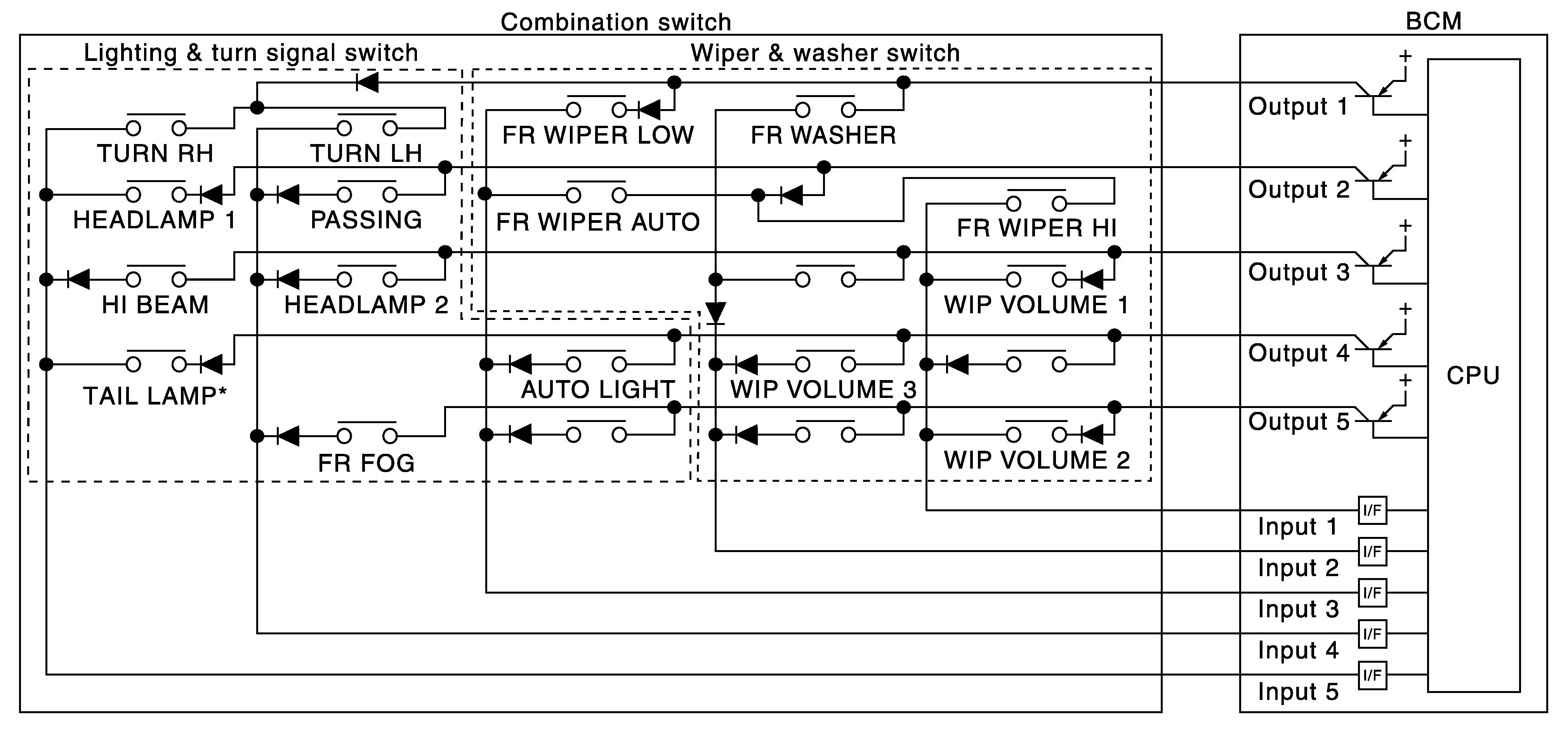

Fig 1: Combination Switch Circuit Diagram

Courtesy of NISSAN NORTH AMERICA, INC.

NOTE: *: TAIL LAMP switch links lighting switch 1ST and 2ND positions.

COMBINATION SWITCH INPUT-OUTPUT SYSTEM LIST

System	INPUT 1	INPUT 2	INPUT 3	INPUT 4	INPUT 5
OUTPUT 1	-	FR WASHER	FR WIPER LOW	TURN LH	TURN RH
OUTPUT 2	FR WIPER HI	-	FR WIPER AUTO	PASSING	HEADLAMP 1
OUTPUT 3	WIP VOLUME 1	-	-	HEADLAMP 2	HI BEAM
OUTPUT 4	-	WIP VOLUME 3	AUTO LIGHT	-	TAIL LAMP
OUTPUT 5	WIP VOLUME 2	-	-	FR FOG	-

NOTE: Headlamp has a dual system switch.
