Case Components

WARNING: This page is about a different car, the 2013 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.

Remove clips from PNP switch and back-up lamp switch.
Remove PNP switch, back-up lamp switch and plungers from OD gear case.

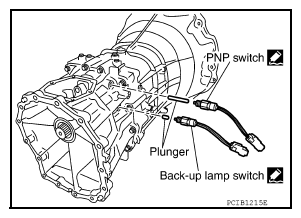

Fig 1: Identifying PNP Switch, Back-Up Lamp Switch & Plungers
Courtesy of NISSAN NORTH AMERICA, INC.
Remove control housing bolts, and then remove control housing and gasket from OD gear case.

Fig 2: Locating Control Housing Bolts
Courtesy of NISSAN NORTH AMERICA, INC.
Remove return spring plug, return spring and return spring plunger from OD gear case.
CAUTION: Do not reuse return spring plug.

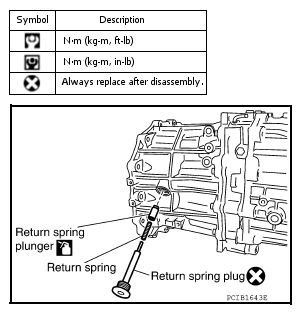

Fig 3: Identifying Return Spring, Plug And Plunger Of OD Gear Case
Courtesy of NISSAN NORTH AMERICA, INC.
Remove rear oil seal from OD gear case using Tool.
Tool number: KV381054S0 (J-34286)

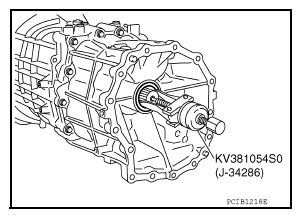

Fig 4: Removing Rear Oil Seal From OD Gear Case Using SST
Courtesy of NISSAN NORTH AMERICA, INC.

CAUTION: Do not damage OD gear case.
Remove retaining pin using suitable tool, and then remove striking arm from striking rod assembly.

Fig 5: Removing Retaining Pin Using Suitable Tool
Courtesy of NISSAN NORTH AMERICA, INC.
Remove OD gear case bolts, and then remove OD gear case from adapter plate using suitable tool.

Fig 6: Removing OD Gear Case From Adapter Plate Using Suitable Tool
Courtesy of NISSAN NORTH AMERICA, INC.
Remove counter end bearing from OD gear case using suitable tool.
CAUTION: Be careful not to damage OD gear case.

Fig 7: Removing Counter End Bearing From OD Gear Case Using Tool
Courtesy of NISSAN NORTH AMERICA, INC.
Remove withdrawal lever ball pin and washer from front cover.

Fig 8: Identifying Withdrawal Lever Ball Pin And Washer Of Front Cover
Courtesy of NISSAN NORTH AMERICA, INC.
Remove front cover bolts, and then remove front cover and front cover gasket from transmission case.

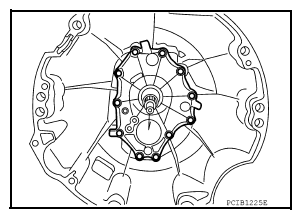

Fig 9: Locating Front Cover Bolts
Courtesy of NISSAN NORTH AMERICA, INC.
Remove front cover oil seal from front cover using suitable tool.
CAUTION:
- Be careful not to damage front cover.
- Do not reuse oil seal.
Fig 10: Removing Front Cover Oil Seal
Courtesy of NISSAN NORTH AMERICA, INC.
Remove baffle plate nut from transmission case.

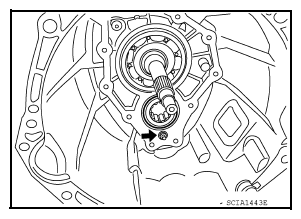

Fig 11: Locating Baffle Plate Nut
Courtesy of NISSAN NORTH AMERICA, INC.
Remove snap ring from main drive gear bearing using suitable tool.

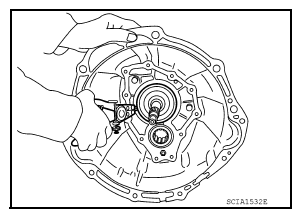

Fig 12: Removing/Installing Main Drive Gear Bearing Snap Ring
Courtesy of NISSAN NORTH AMERICA, INC.
Remove pivot bolt and check shift pin from transmission case.
CAUTION: Do not reuse pivot bolt and check shift pin.

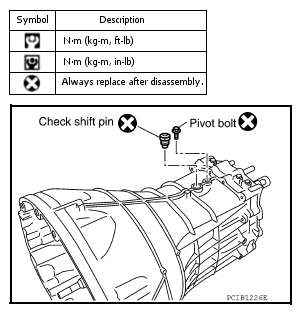

Fig 13: Identifying Pivot Bolt And Check Shift Pin
Courtesy of NISSAN NORTH AMERICA, INC.
Remove transmission case from adapter plate.

Fig 14: Identifying Transmission Case
Courtesy of NISSAN NORTH AMERICA, INC.
Remove counter front bearing from transmission case.

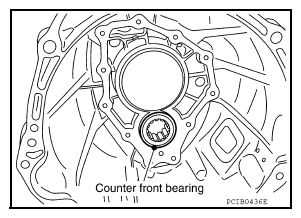

Fig 15: Identifying Counter Front Bearing
Courtesy of NISSAN NORTH AMERICA, INC.
Remove oil gutter from transmission case.

Fig 16: Identifying Oil Gutter
Courtesy of NISSAN NORTH AMERICA, INC.
Remove filler plug and gasket from transmission case.
CAUTION: Do not reuse gasket.

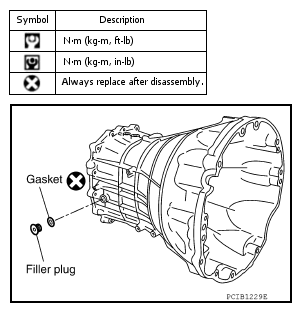

Fig 17: Identifying Filler Plug And Gasket
Courtesy of NISSAN NORTH AMERICA, INC.
