Disassembly (M/T Models)

WARNING: This page is about a different car, the 2013 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.

Remove the retaining ring from the 2-4 shift fork, using suitable tool.
Remove the fork guide collar and 2-4 shift fork spring from the 2-4 shift fork.

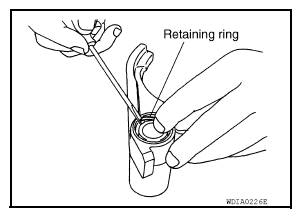

Fig 1: Removing Retaining Ring From 2-4 Shift Fork
Courtesy of NISSAN NORTH AMERICA, INC.
