WARNING: This page is about a different car, the 2013 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.

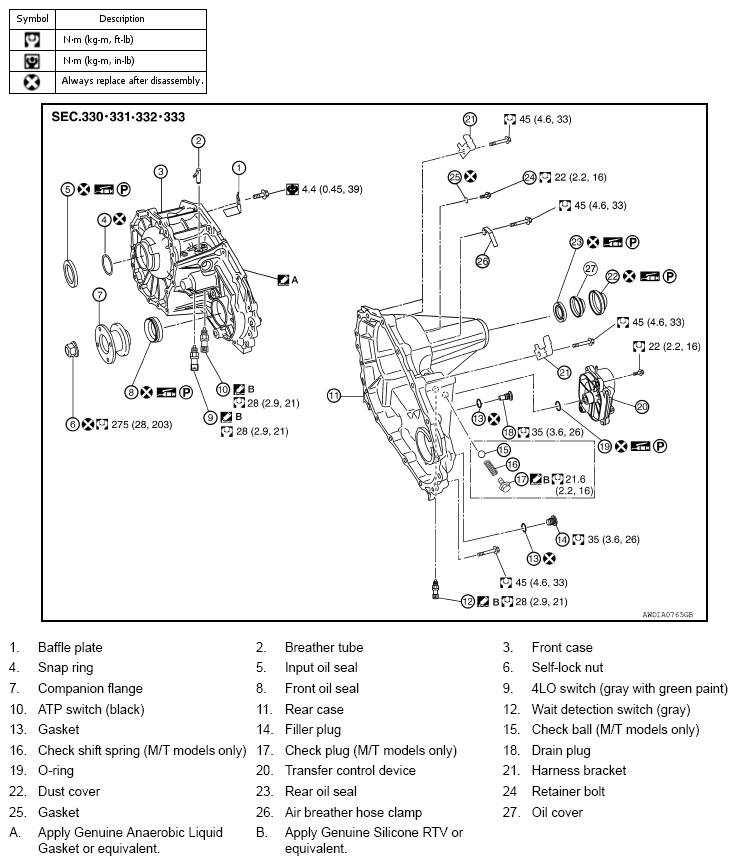

Fig 1: Exploded View Of Transfer Assembly With Torque Specifications (1 Of 2)
Courtesy of NISSAN NORTH AMERICA, INC.

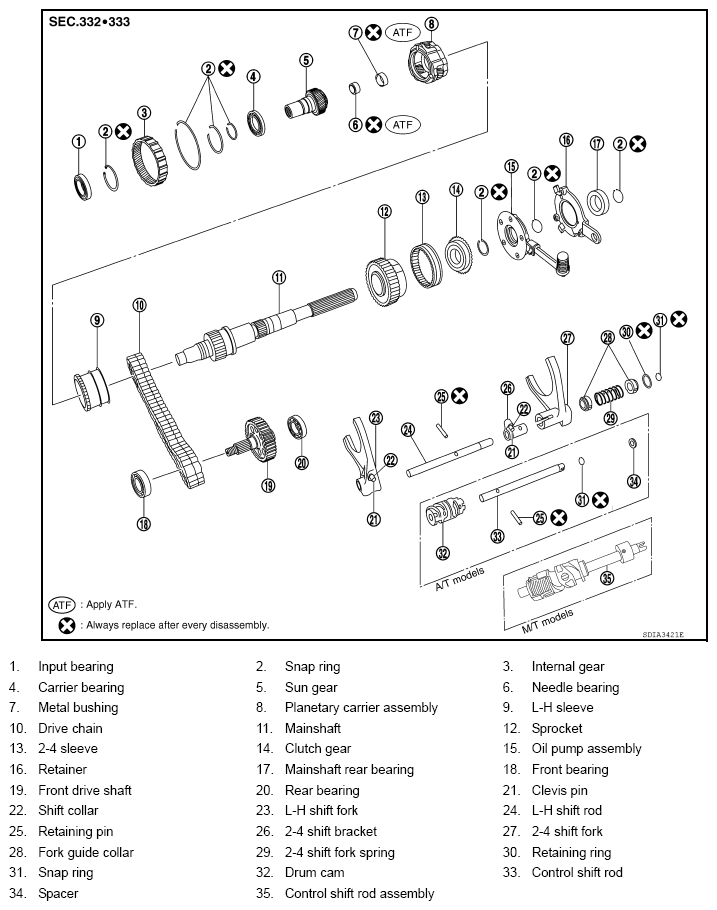

Fig 2: Exploded View Of Transfer Assembly (2 Of 2)
