Operation And Display

Plasmacluster™ ion display

Plasmacluster™ control state is indicated on the front display.
Plasmacluster™ ion display is switched as shown in the figure depending on air flow.

NOTE:

Plasmacluster™ ion technology developed by Sharp Corporation is installed in this item.
Plasmacluster™ is a trademark of Sharp Corporation.

When air flow is small

Fig 1: Plasmacluster System Switch Display (Low Air Flow)
Courtesy of NISSAN NORTH AMERICA, INC.
When air flow is large

Fig 2: Plasmacluster System Switch Display (High Air Flow)
Courtesy of NISSAN NORTH AMERICA, INC.

Controller (Preset Switch)

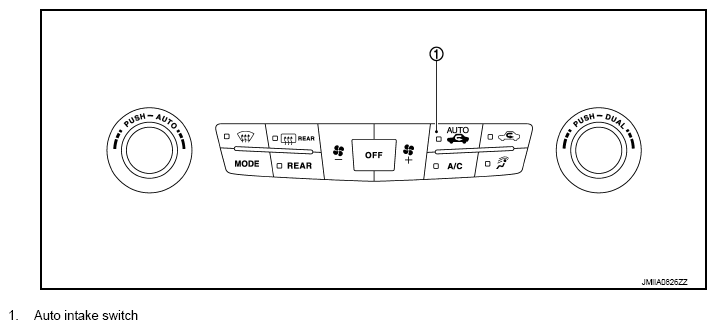

Fig 3: Identifying Auto Intake Switch

G08258867

Courtesy of NISSAN NORTH AMERICA, INC.

Switch name

Function

Auto intake switch

Automatic intake control (exhaust gas / outside odor detecting mechanism) mode (switch indicator) changes between ON <==> OFF each time when auto intake switch is pressed while front blower motor is activated.
When auto intake switch turns ON, front air conditioning system becomes the following status:

A/C switch: ON
Air inlet: Recirculation [After approximately 5 minutes, air inlet is switched to automatic intake control (exhaust gas / outside odor detecting mechanism).

When auto intake switch turns ON ==> OFF, air inlet becomes the fresh air intake.

NOTE:

Interlocking condition of A/C switch can be changed. Refer to "ACCS (ADVANCED CLIMATE CONTROL SYSTEM): AUTO INTAKE SWITCH INTERLOCKING MOVEMENT CHANGE FUNCTION ".
Auto intake switch does not turn ON during the following status:

Air outlet: DEF
Ambient temperature: -2°C (28°F) or less
