MANUAL FUNCTION: Component Parts Location

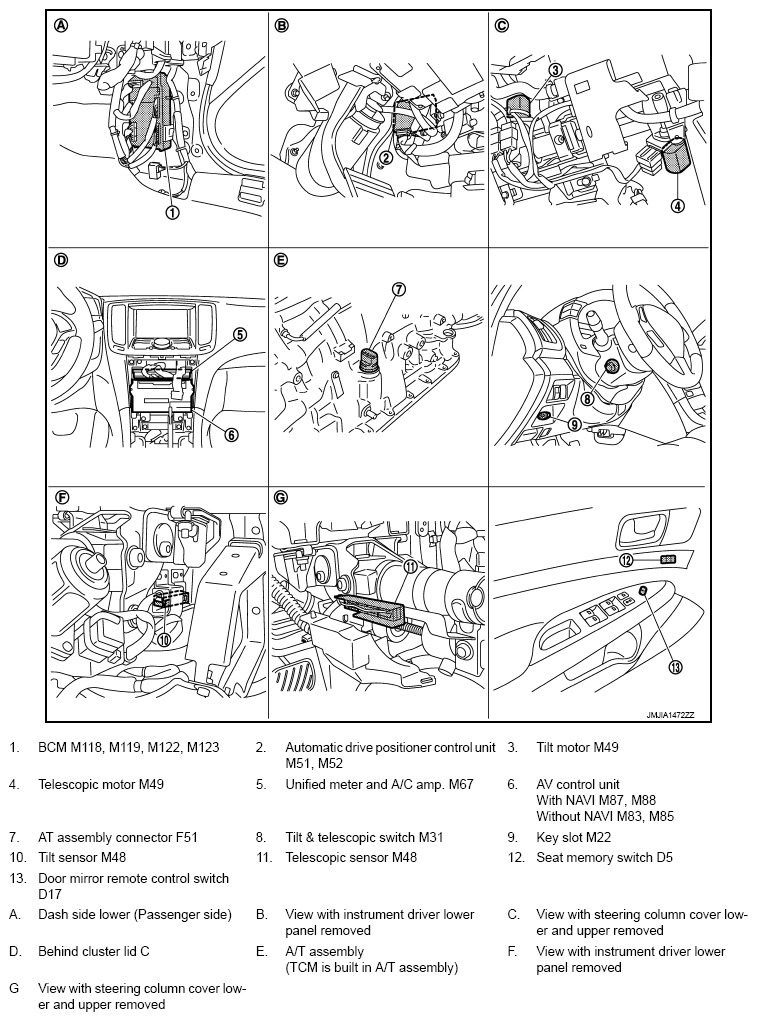

Fig 1: Manual Function Component Parts Location (1 Of 2)
G08996255Courtesy of NISSAN NORTH AMERICA, INC.

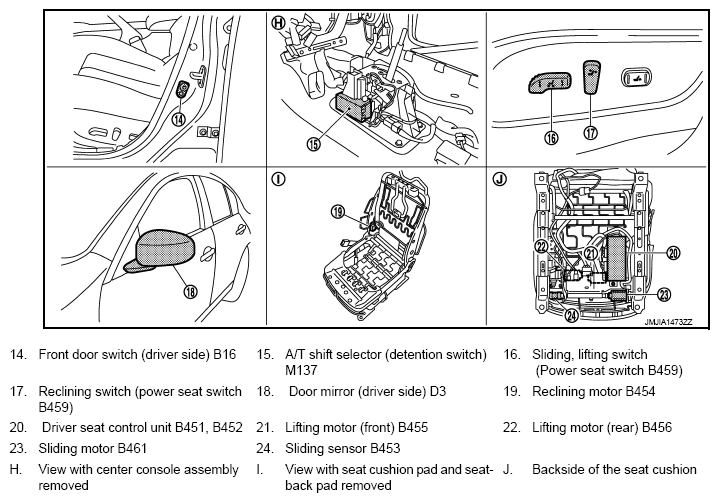

Fig 2: Manual Function Component Parts Location (2 Of 2)
G08996256Courtesy of NISSAN NORTH AMERICA, INC.
