System Description
>>
Automatic Drive Positioner System
>>
Memory Function
>>
MEMORY FUNCTION: System Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
MEMORY FUNCTION: System Diagram

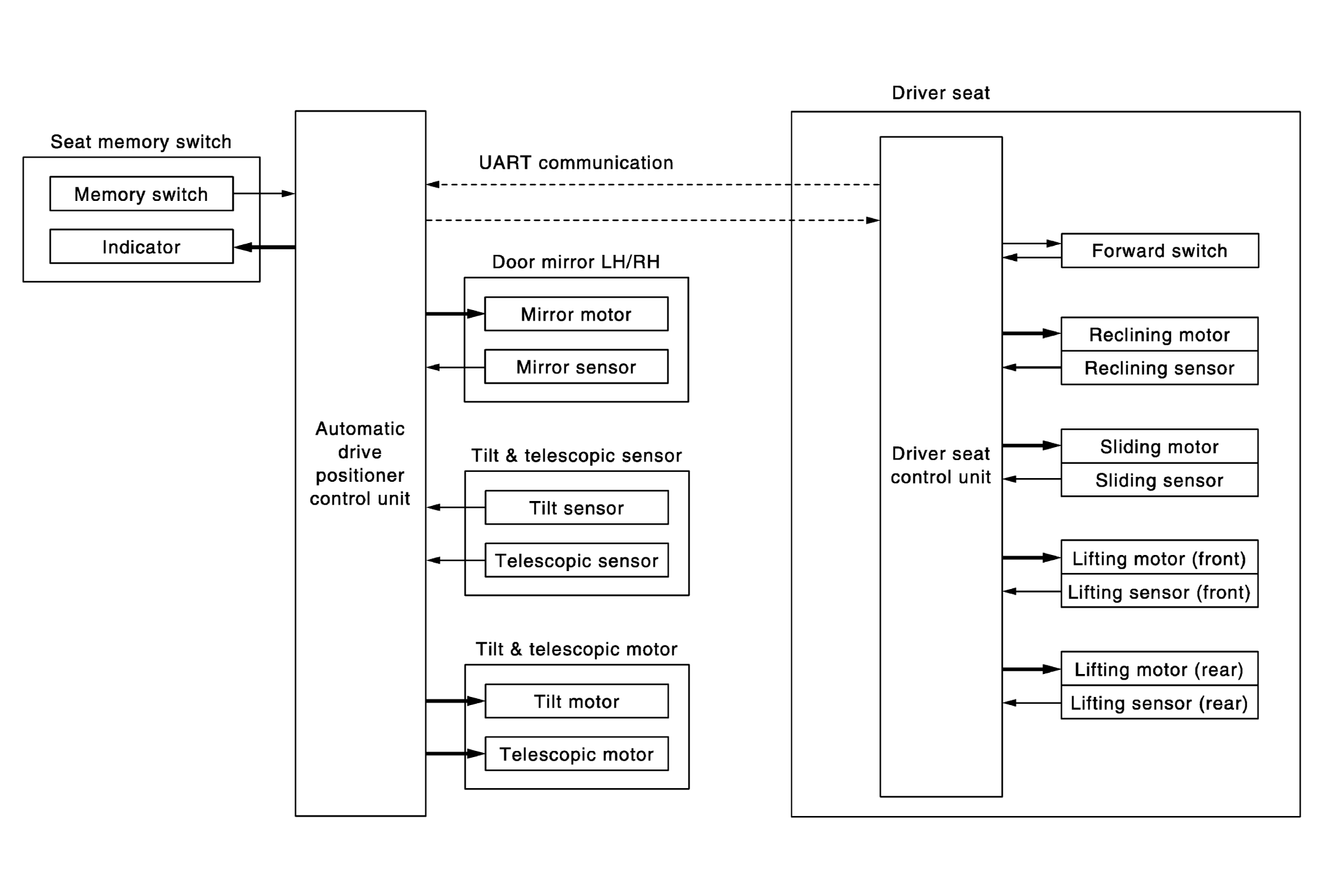

Fig 1: Memory Function - System Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
