Confirmation/Adjustment Mode: Navigation

WARNING: This page is about a different variant/trim than selected.

STEERING ANGLE ADJUSTMENT

The steering angle output value detected with the gyroscope is adjusted.

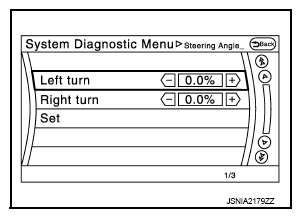

Fig 1: Display Steering Angle Adjustment Screen

Courtesy of NISSAN NORTH AMERICA, INC.

SPEED CALIBRATION

During normal driving, distance error caused by tire wear and tire pressure change is automatically adjusted for by the automatic distance correction function. This function, on the other hand, is for immediate adjustment, in cases such as driving with tire chain fitted on tires.

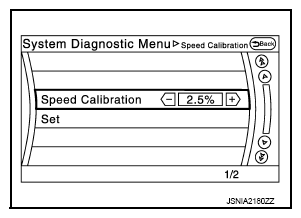

Fig 2: Display Speed Calibration

Courtesy of NISSAN NORTH AMERICA, INC.

XM SAT SUBSCRIPTION STATUS

The XM NavTraffic subscription status can be checked.
