Component Parts Location

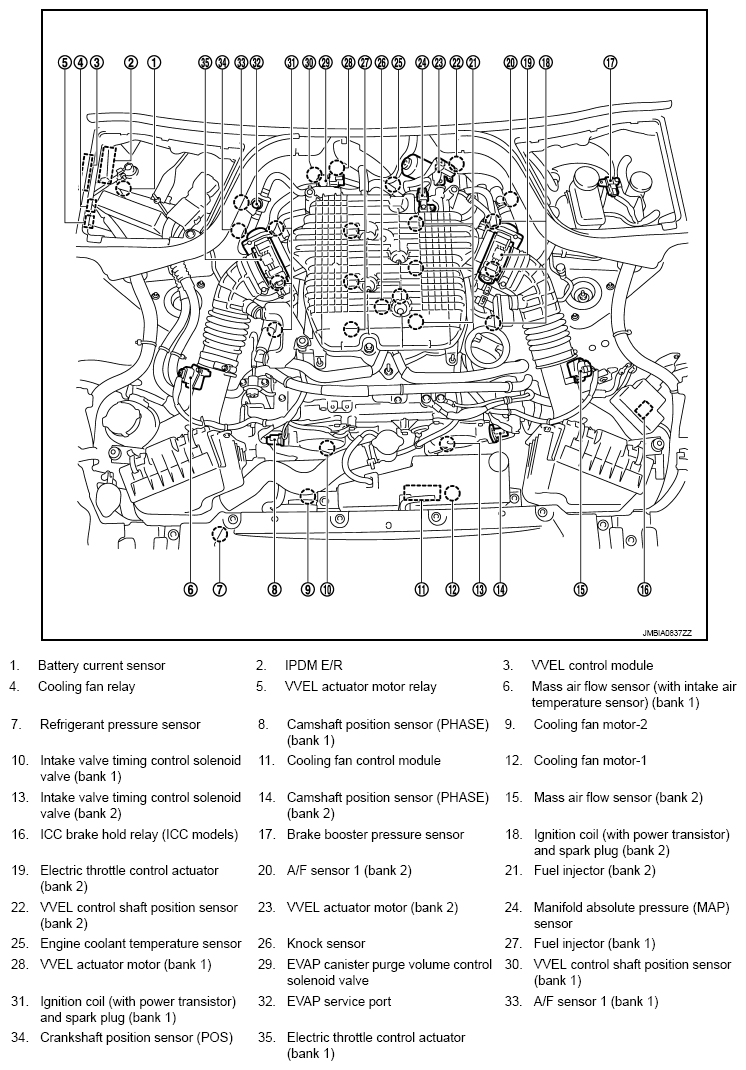

Fig 1: Identifying Engine Control System Components Location (1 Of 22)

G08757535

Courtesy of NISSAN NORTH AMERICA, INC.

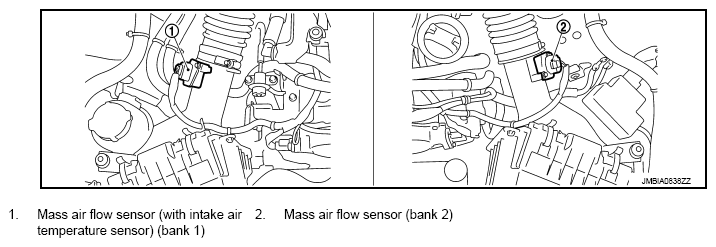

Fig 2: Identifying Engine Control System Components Location (2 Of 22)

G08757536

Courtesy of NISSAN NORTH AMERICA, INC.

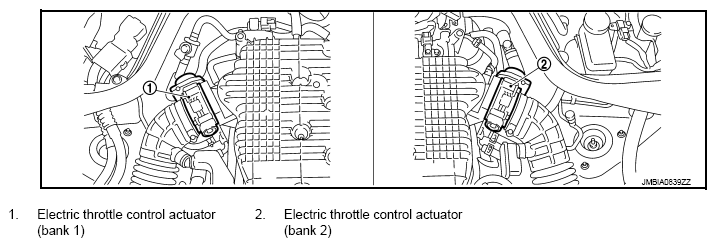

Fig 3: Identifying Engine Control System Components Location (3 Of 22)

G08757537

Courtesy of NISSAN NORTH AMERICA, INC.

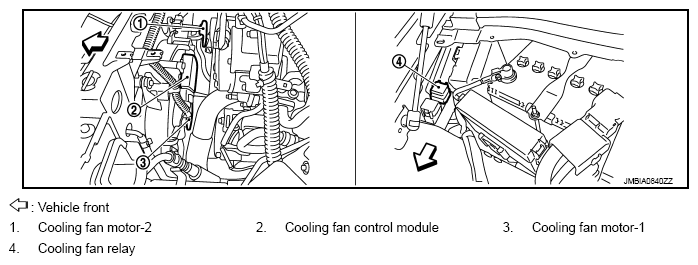

Fig 4: Identifying Engine Control System Components Location (4 Of 22)

G08757538

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 5: Identifying Engine Control System Components Location (5 Of 22)

G05216249

Courtesy of NISSAN NORTH AMERICA, INC.

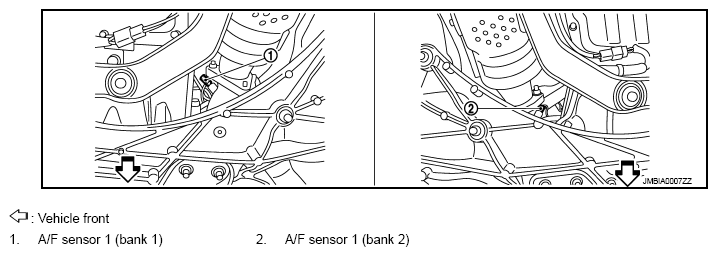

Fig 6: Identifying Engine Control System Components Location (6 Of 22)

G08757540

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 7: Identifying Engine Control System Components Location (7 Of 22)

G08757541

Courtesy of NISSAN NORTH AMERICA, INC.

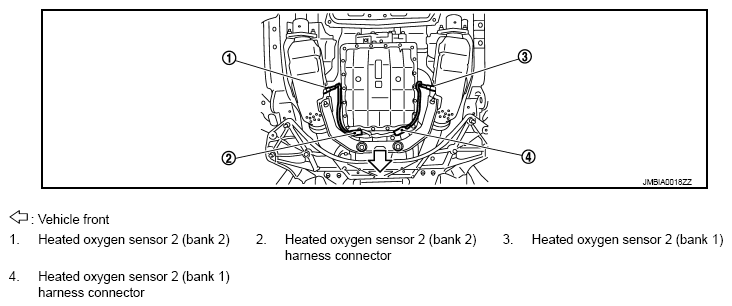

Fig 8: Identifying Engine Control System Components Location (8 Of 22)

G08757542

Courtesy of NISSAN NORTH AMERICA, INC.

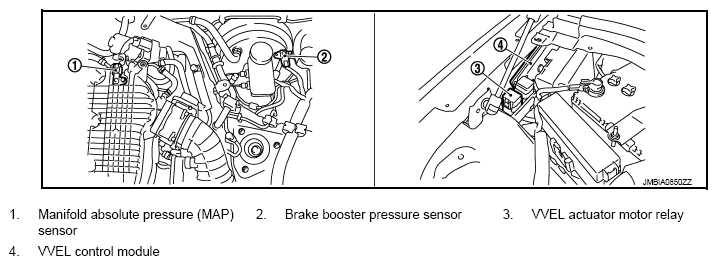

Fig 9: Identifying Engine Control System Components Location (9 Of 22)

G08757543

Courtesy of NISSAN NORTH AMERICA, INC.

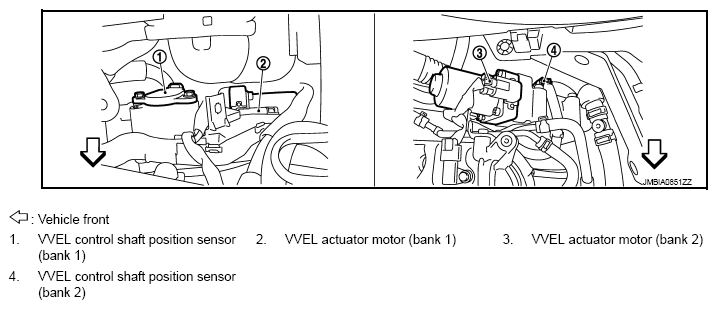

Fig 10: Identifying Engine Control System Components Location (10 Of 22)

G08757544

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 11: Identifying Engine Control System Components Location (11 Of 22)

G08757545

Courtesy of NISSAN NORTH AMERICA, INC.

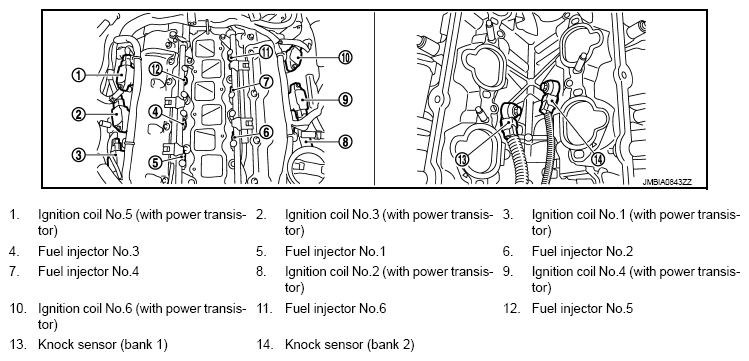

Fig 12: Identifying Engine Control System Components Location (12 Of 22)

G08757546

Courtesy of NISSAN NORTH AMERICA, INC.

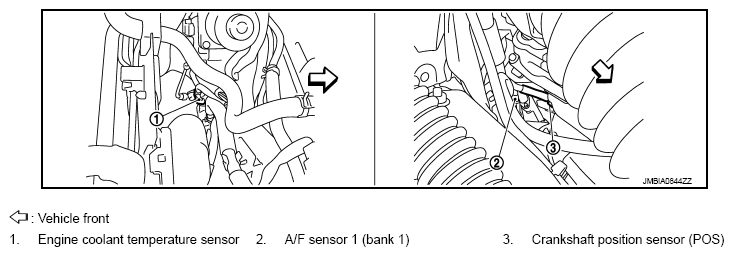

Fig 13: Identifying Engine Control System Components Location (13 Of 22)

G08757547

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 14: Identifying Engine Control System Components Location (14 Of 22)

G08757548

Courtesy of NISSAN NORTH AMERICA, INC.

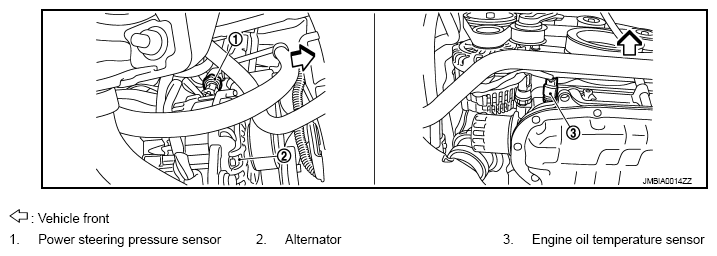

Fig 15: Identifying Engine Control System Components Location (15 Of 22)

G08757549

Courtesy of NISSAN NORTH AMERICA, INC.

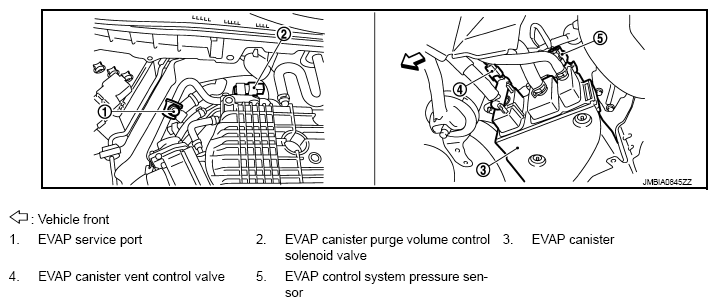

Fig 16: Identifying Engine Control System Components Location (16 Of 22)

G08757550

Courtesy of NISSAN NORTH AMERICA, INC.

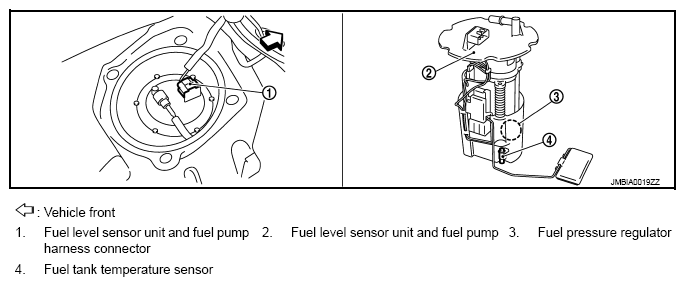

Fig 17: Identifying Engine Control System Components Location (17 Of 22)

G08757551

Courtesy of NISSAN NORTH AMERICA, INC.

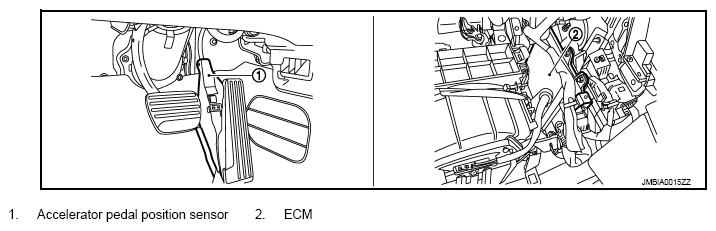

Fig 18: Identifying Engine Control System Components Location (18 Of 22)

G08757552

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 19: Identifying Engine Control System Components Location (19 Of 22)

G08757553

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 20: Identifying Engine Control System Components Location (20 Of 22)

G08757554

Courtesy of NISSAN NORTH AMERICA, INC.

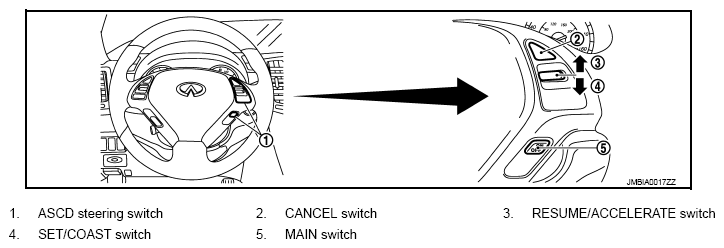

Fig 21: Identifying Engine Control System Components Location (21 Of 22)

G08757555

Courtesy of NISSAN NORTH AMERICA, INC.

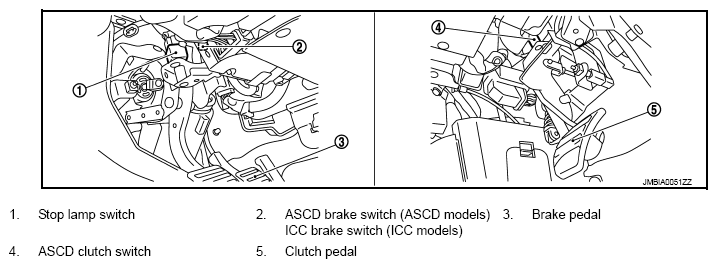

Fig 22: Identifying Engine Control System Components Location (22 Of 22)

G08757556

Courtesy of NISSAN NORTH AMERICA, INC.
